GE Vivid T8 - Suggested Floor Plan, Ultrasound System, and Echopac PC in same Room; Networking Setup Requirements

Site Preparations
2-18 Vivid T9/Vivid T8 – Basic Service Manual
5795591-100 English Rev. 3
2-3-7 Suggested floor plan, Ultrasound system, and EchoPAC PC in
same room

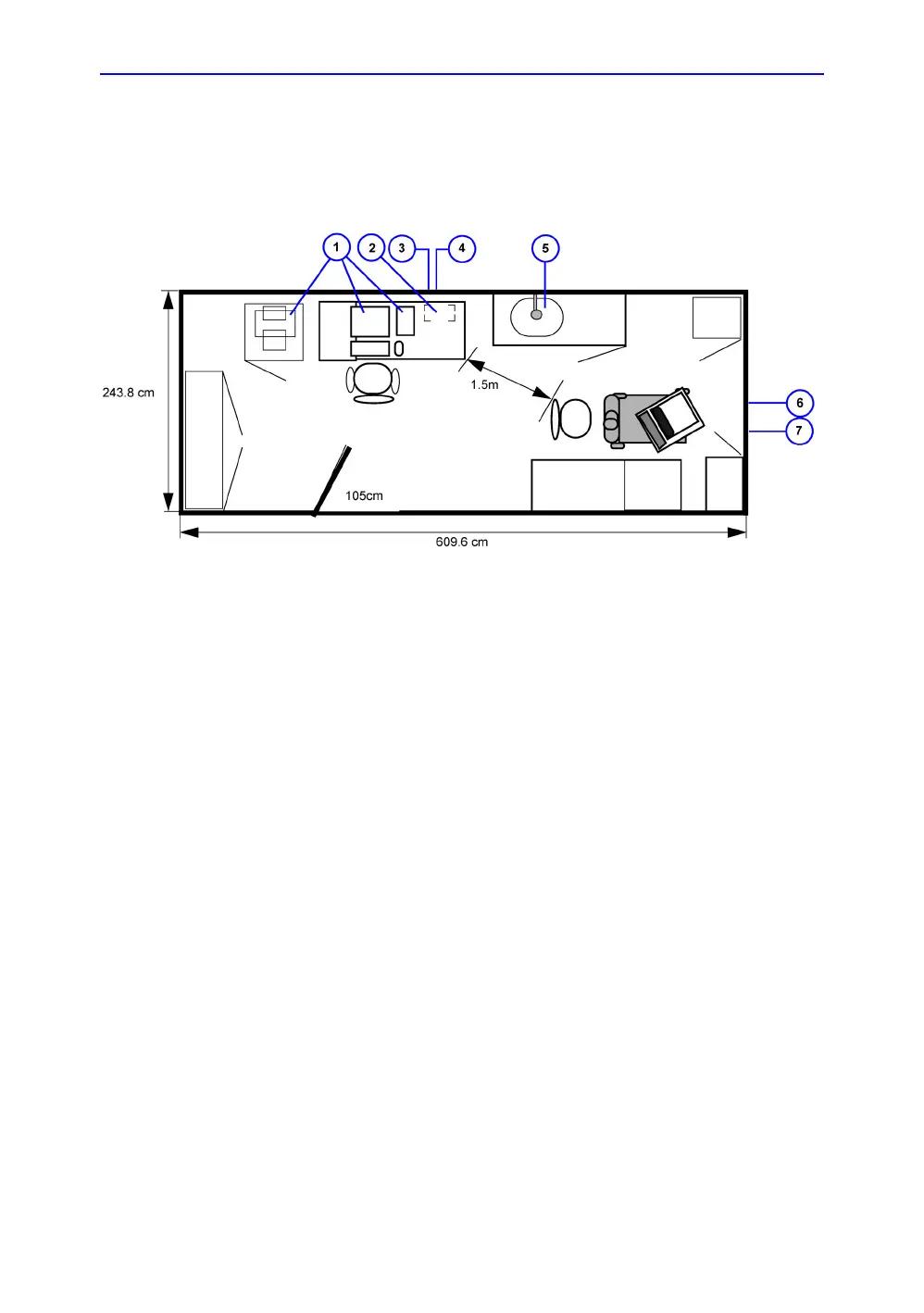

Figure 2-3. Suggested Room with EchoPAC PC workstation and Ultrasound Scanner
2-3-8 Networking setup requirements
2-3-8-1 Stand alone Ultrasound system (without network connection)
None.
2-3-8-2 Scanner connected to hospital’s network
Supported networks:
100/1000 Mbit Ethernet/DICOM network (option)
2-3-8-3 InSite requirements
InSite requires an Ethernet connection via:
• 100/1000 Mbit Interface
1. EchoPAC PC workstation
parts
2. UPS
3. Ethernet network wall outlet
4. 3x mains power outlets
5. Hot and Cold water
6. Dedicated mains power out-
let
7. Ethernet network wall outlet
