GE DRAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-79

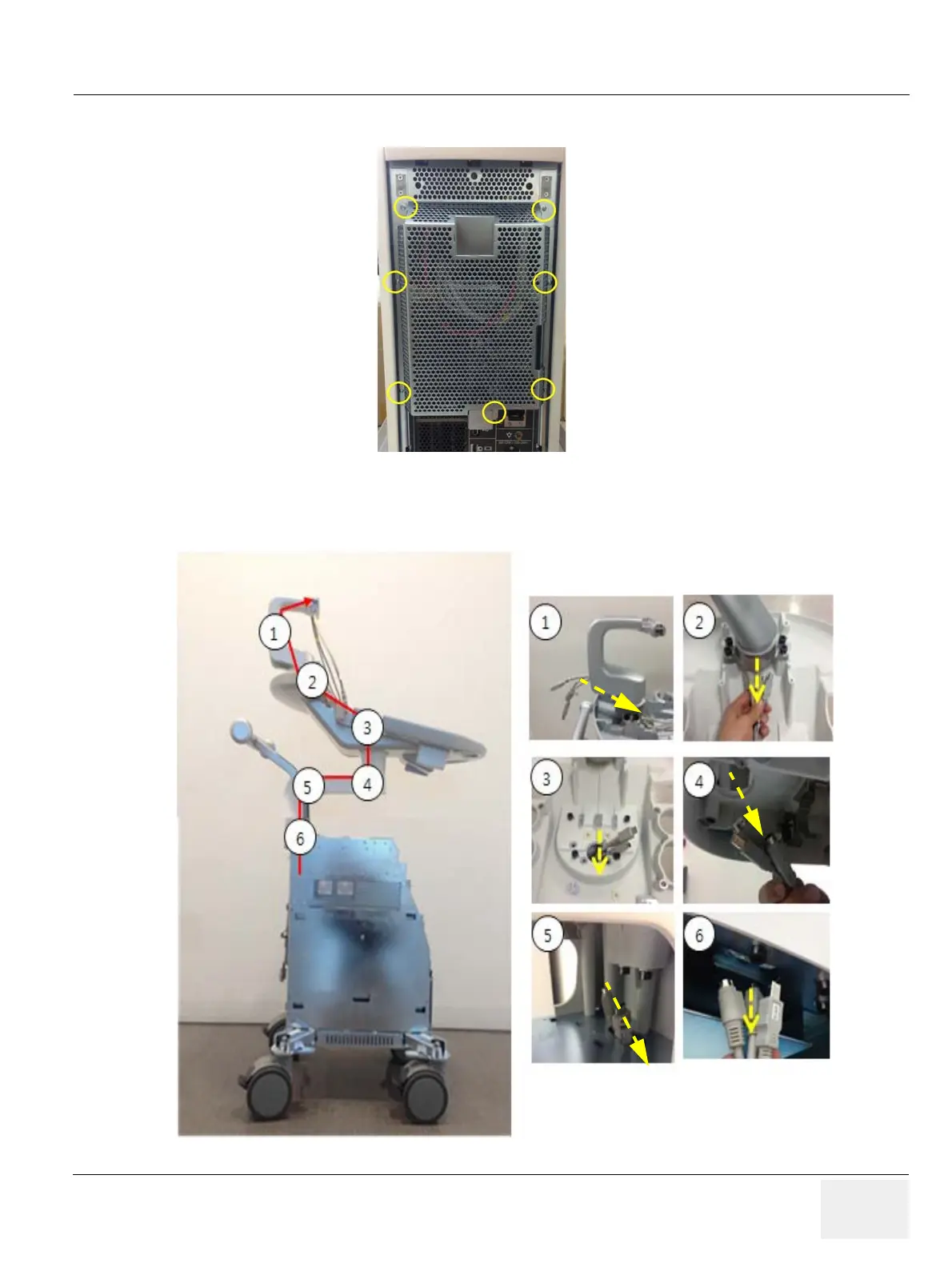

16.)Unscrew 7 screws and disassemble REAR EMI COVER.

17.)Pull out the LCD Cables through the hole. Refer to the figure below.

Figure 8-117 Unscrewing 7 screwing to disassemble REAR EMI COVER
