GE RAFT VOLUSON™ P8 / VOLUSON™ P6

DIRECTION 5723243, R

EVISION 6 DRAFT (MAY 23, 2018) BASIC SERVICE MANUAL

8-158 Section 8-52 - Replacing optional Peripherals

5.) Disassemble FRONT PRINTER BEZEL ASSY BT16.

6.) Remove PRINTER DUMMY COVER PLATE BT16.

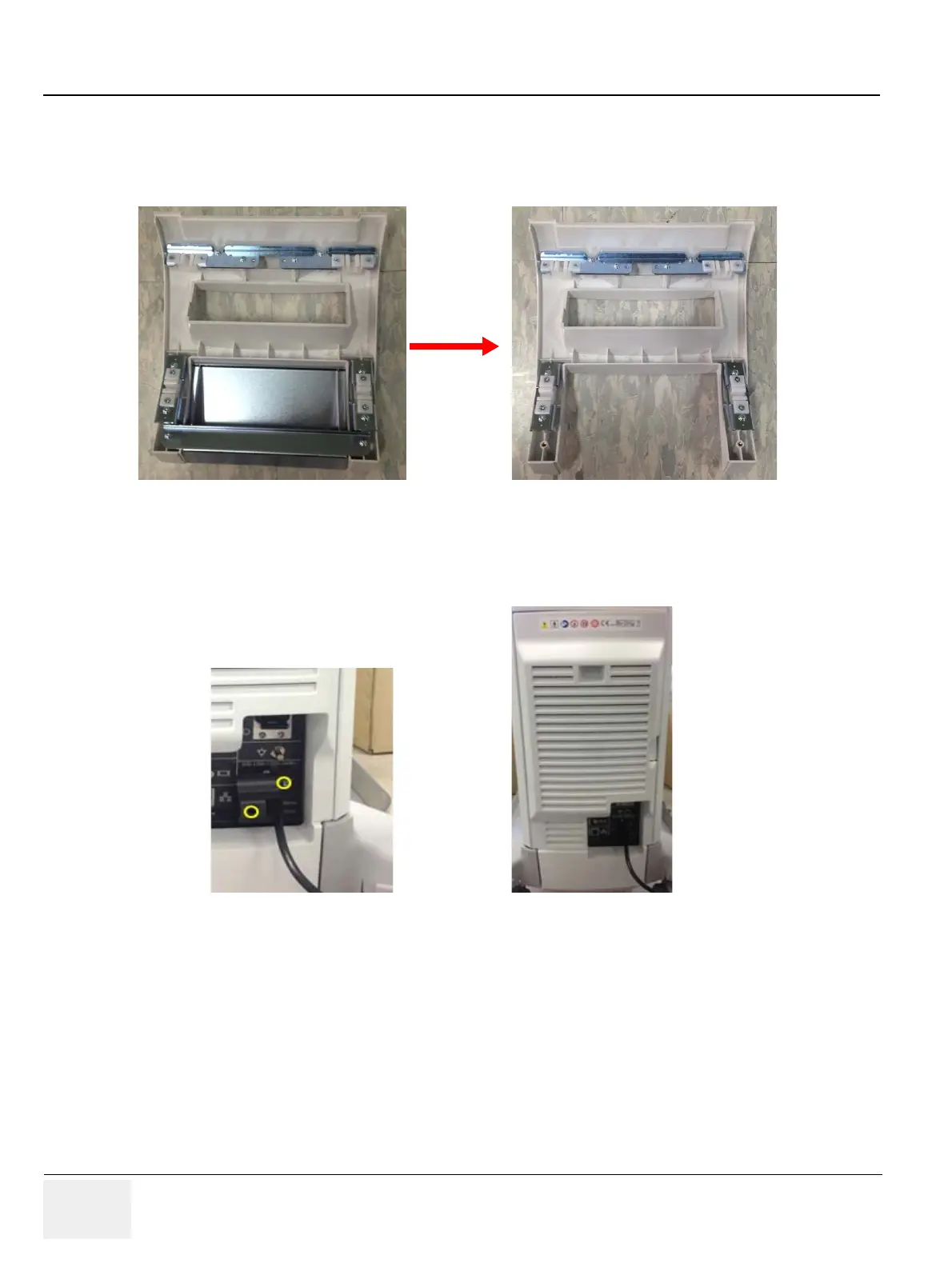

Figure 8-222 Disassembling PRINTER DUMMY COVER PLATE BT16

7.) Unscrew 2 screws to disassemble power cord fix bracket.

8.) Remove the power cord and REAR CABINET BEZEL ASSY BT16.

Figure 8-223 Disassembling REAR CABINET BEZEL ASSY BT16
