8-74 Section 8-23 - Replacement of LCD Cable
5.) Remove 2 RUBBER CAPS on SPEAKER COVER LEFT/RIGHT. Refer to the figure below.
6.) Unscrew 2 screws, and then remove SPEAKER COVER LEFT/RIGHT. Refer to the figure below.
7.) Unscrew 9 screws at the bottom of the OPIO. Refer to the figure below.

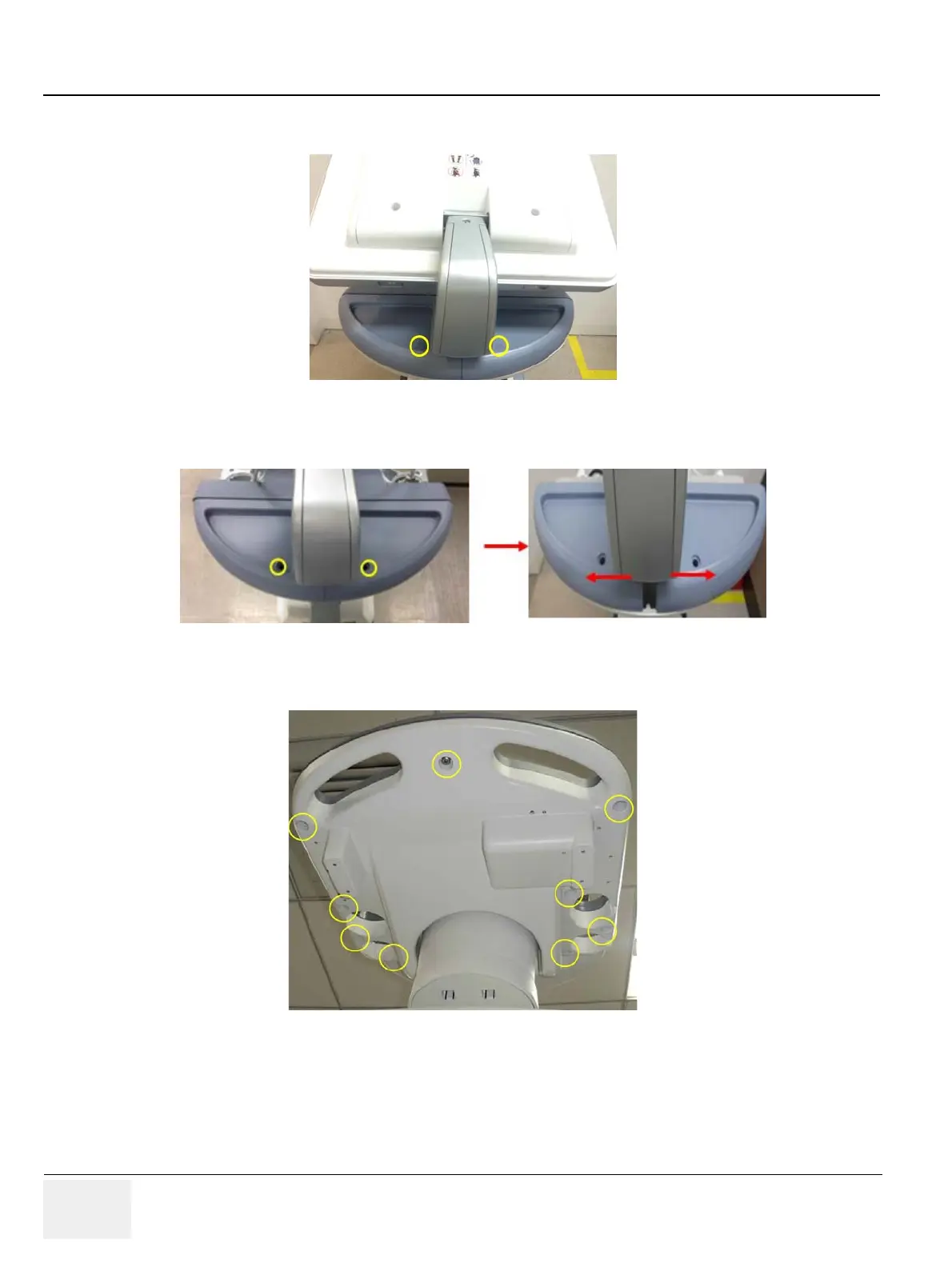

Figure 8-105 Removing 2 RUBBER CAPS on SPEAKER COVER LEFT/RIGHT
Figure 8-106 Unscrewing 3 screw to remove SPEAKER COVER LEFT/RIGHT
Figure 8-107 Unscrewing 9 screws at the bottom of the OPIO
