The GEEEK A50 is a compact, small form factor (SFF) PC case designed for users who prioritize space efficiency and a clean aesthetic. This installation guide, version 1.3, dated 20191115-2, outlines the assembly process for the case, highlighting its modular design and the various components required for a complete build.

Function Description:

The GEEEK A50 serves as an enclosure for computer components, including a motherboard, graphics card, power supply, and storage drives, in a highly compact footprint. Its primary function is to protect these components while providing adequate airflow for cooling and a structured layout for cable management. The case is designed to accommodate standard PC hardware, albeit with specific size constraints due to its SFF nature. The modular aluminum frame and acrylic panels allow for a customizable and visually appealing build.

Important Technical Specifications (Inferred from the manual):

Case Type: Small Form Factor (SFF) PC Case
Frame Material: Aluminum (as indicated by "Aluminum Frame Installation")
Panel Material: Acrylic (as indicated by "Acrylic Panel")
Motherboard Compatibility: The manual shows a motherboard being installed, suggesting compatibility with common form factors, likely Mini-ITX given the SFF design.
Graphics Card Compatibility: The installation guide details steps for installing a graphics card, including the use of a PCIe Riser Cable (optional purchase), indicating support for dedicated GPUs. The visual representation suggests compatibility with dual-slot graphics cards.
Power Supply Compatibility: The manual shows the installation of a power supply bracket and a power supply, including a power extension cable. This typically implies support for SFX or SFX-L power supplies, which are common in SFF builds.
Storage Drive Bays: The case supports 2.5" HDDs/SSDs, with a dedicated HDD bracket shown in the installation steps. The manual indicates installation of multiple 2.5" drives.
Cooling Support: The bottom panel features a perforated design, suggesting support for case fans or a radiator for liquid cooling. The "Screws for Fan X8" in the parts list further confirms fan support.
Front I/O: The installation of a "Front USB and Panel" and "Power Switch" indicates standard front panel connectivity.
Dimensions (Inferred): While not explicitly stated, the SFF nature implies compact dimensions, likely around 10-15 liters in volume.
Assembly Method: The case utilizes a screw-based assembly system, with various types of screws, standoffs, and nuts provided for securing components and panels.

Usage Features:

Compact Design: The GEEEK A50 is ideal for users with limited desk space or those who prefer a minimalist setup. Its small size makes it highly portable, suitable for LAN parties or moving between workstations.
Modular Construction: The aluminum frame and acrylic panels are assembled piece by piece, offering flexibility during the build process. This modularity can also aid in future upgrades or maintenance.
Aesthetic Appeal: The combination of an aluminum frame and clear or frosted acrylic panels provides a modern and clean look, allowing users to showcase their internal components.
Dedicated GPU Support: The inclusion of a PCIe riser cable option ensures that users can install powerful dedicated graphics cards, making the A50 suitable for gaming or demanding professional applications within its compact form factor.
Efficient Layout: The internal layout is designed to maximize space utilization, with specific brackets for the HDD, power supply, and motherboard, ensuring a tidy build.
Cable Management Considerations: While not explicitly detailed as a feature, the structured assembly process and the use of various panels suggest opportunities for effective cable routing to maintain a clean interior.
User-Friendly Assembly (with caveats): The step-by-step guide aims to simplify the assembly. However, SFF builds can be challenging due to tight spaces. The manual provides a helpful tip: "When you have difficulties during the assembly, you can remove the bottom panel first before assembly," indicating an understanding of potential build complexities.

Maintenance Features:

Disassembly for Maintenance: The modular design allows for easy disassembly of specific panels or sections for cleaning, component upgrades, or troubleshooting. For instance, removing the side panels or bottom panel provides access to internal components.
Dust Filtration (Inferred): While not explicitly mentioned, the perforated bottom panel suggests that it could potentially accommodate dust filters, which are crucial for maintaining component longevity in SFF cases.
Component Accessibility: The ability to remove various panels means that individual components like the motherboard, graphics card, or storage drives can be accessed and replaced without fully disassembling the entire case.
Durable Materials: The use of an aluminum frame contributes to the case's structural integrity and durability, ensuring it can withstand regular handling and component changes over time.
Screw-Based Fasteners: All components are secured with screws, which allows for easy removal and re-installation, facilitating maintenance and upgrades. The variety of screws provided (M4x16mm, M4x8mm, M3x8mm, M3x5mm, M3x10mm, 6#32x10mm) ensures that each component is fastened appropriately.

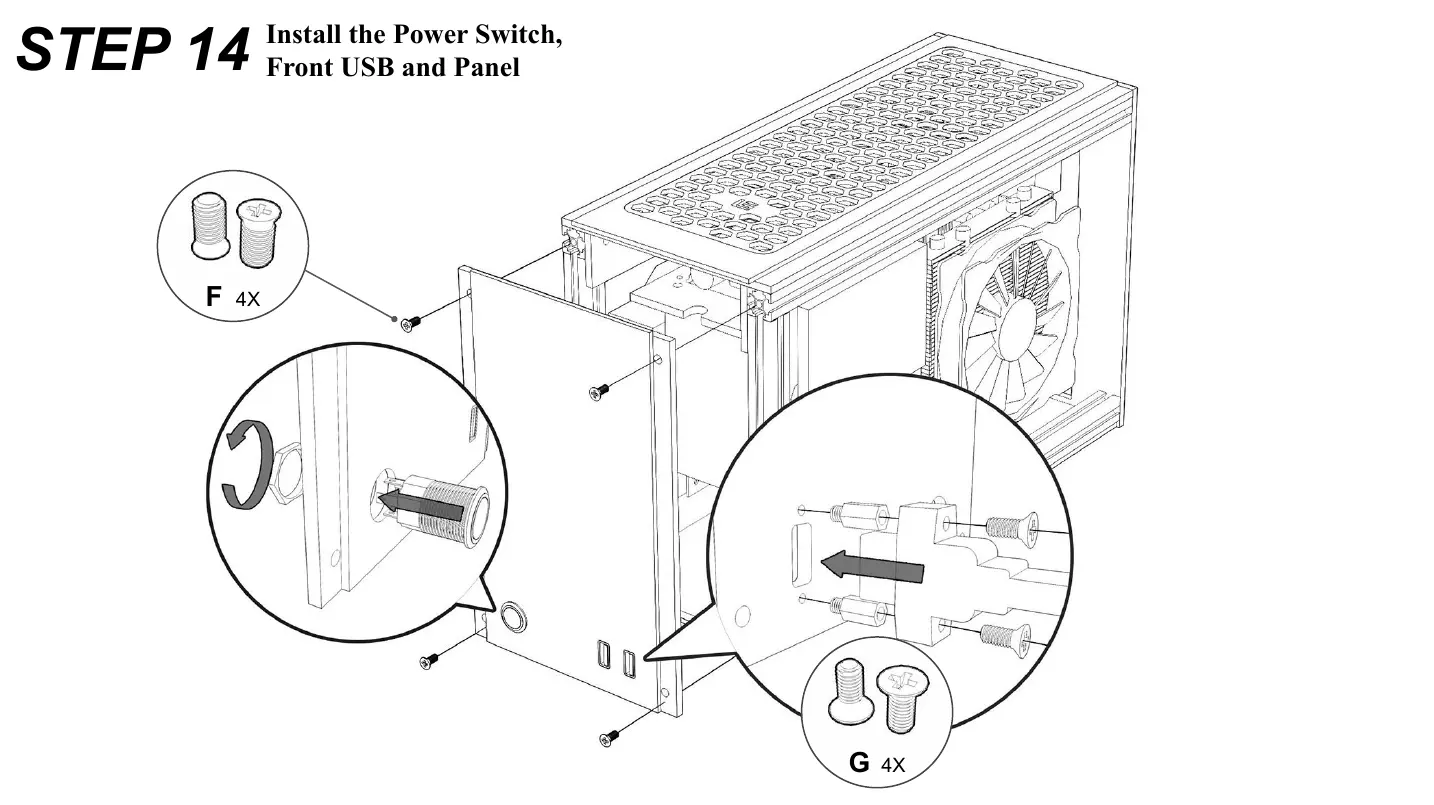

Geeek A50 - STEP 14 Front Panel Connections
