Seat and Restraint System
105
Installation of Rear-facing Infant
Seat
The rear-facing infant seat is installed by
ISOFIX anchorages in a rearward facing
way. The rear-facing infant seat is a restrain
system with a support leg and a top tether,
used for the vehicle equipped with ISOFIX
anchorages and top tether anchorages.
Refer to “Forward-facing Child Seat” in Sec-
tion 4 “Seat and Restraint System” for the
locations of the ISOFIX anchorages.

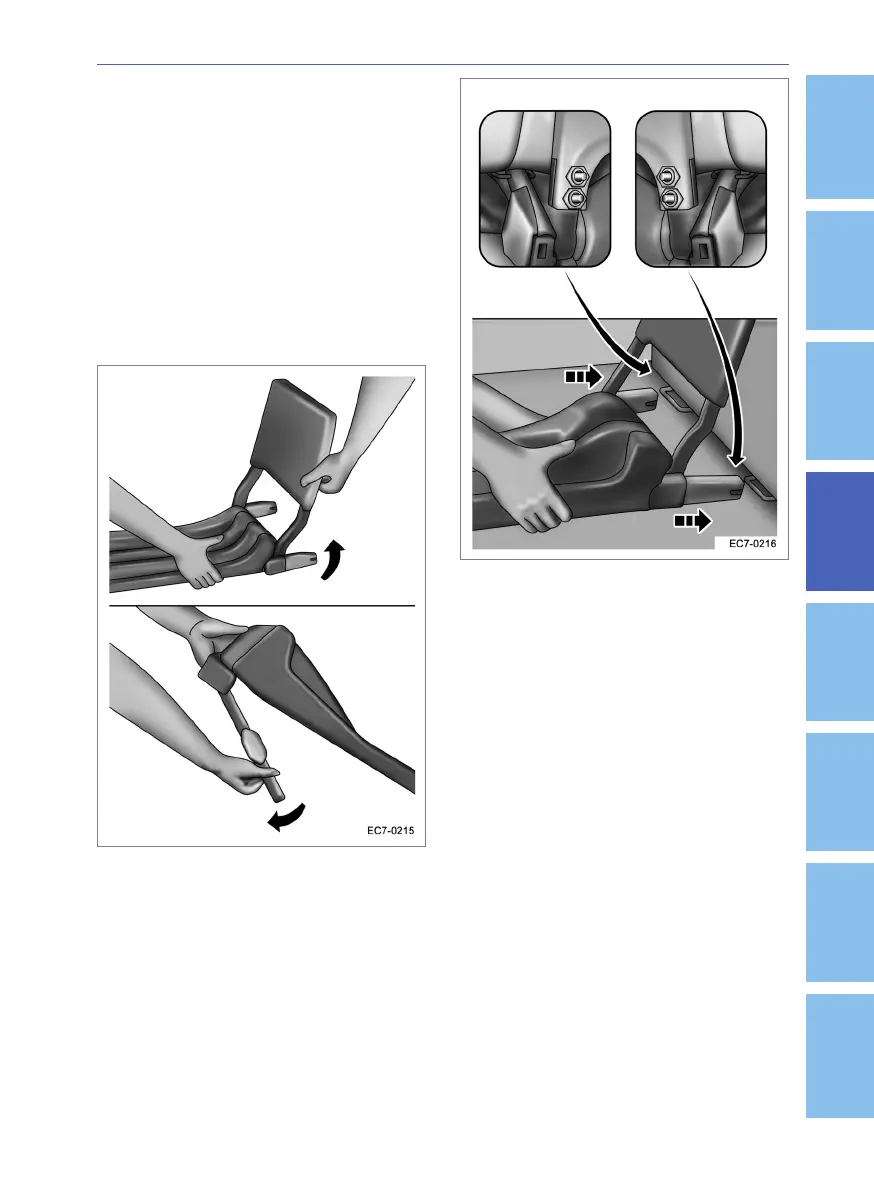

1. Pivot the back panel of the ISOFIX base
to make the ISOFIX snaps horizontal to
the bottom of the base. Pull out the sup
-
port leg at the same time to make it ver-
tical to the bottom of the base.
2. Locate the ISOFIX anchorages at the
rear of the seat cushion and insert the
ISOFIX snaps into the anchorages. The
infant restraint system is correctly fixed
to the anchorages when you hear the
click.
To Next Page
