GREASING
Refer to the illustrations and listings for fitting loca-
tions. Wipe dirt from the fittings before greasing them
to prevent contamination. Replace any missing or dam-
aged fittings. To minimize dirt build-up, avoid exces-
sive greasing.
BASIC MACHINE
GREASE FITTINGS LOCATIONS
Every 50 Hours (or weekly)
Refer to the illustration on the facing page for loca-
tions.
CHASSIS AREA
1 Brake foot pedal linkage . . . . . . . . . . . . . . .1
2 Wheel spindle pins (per axle) . . . . . . . . . . . .4
3 Axle-to-frame pivot pins (per axle) . . . . . . .2
4 Drive shaft, slip joint (per shaft) . . . . . . . . .1
5 Drive shaft, u-joint (per shaft) . . . . . . . . . . .2
6 Level cylinder pivot pins . . . . . . . . . . . . . . .2
7 Base end, lift cylinder pivot pins . . . . . . . . .2
8 Base end, slave cylinder pivot pins . . . . . . .2
REPLACEMENT FILTER CHART
AIR FUEL ENGINE HYDRAULIC TRANS.
ENGINE TYPE FILTER FILTER OIL FILTER STRAINER OIL
JOHN DEERE Primary
137498 211040 102173 L97489 L49327 L99184
Safety
137501
BOOM AREA
9 Boom-to-frame-upright pivot pins . . . . . . . .2
10 Rod end, slave cylinder pivot pins . . . . . . . .2
11 Rod end, lift cylinder pins . . . . . . . . . . . . . .2
12 Extend cylinder pivot pins . . . . . . . . . . . . . .2
13 Chain sheave pins . . . . . . . . . . . . . . . . . . . . .2
14 Quickattach-to-boom-nose pivot pins . . . . .2
15 Tilt cylinder pivot pins . . . . . . . . . . . . . . . . .2
16 Rotate cylinder pivot pins . . . . . . . . . . . . . .2
17 Rotate carriage wear pads . . . . . . . . . . . . . .3
18 Rotate pivot bearing . . . . . . . . . . . . . . . . . . .1

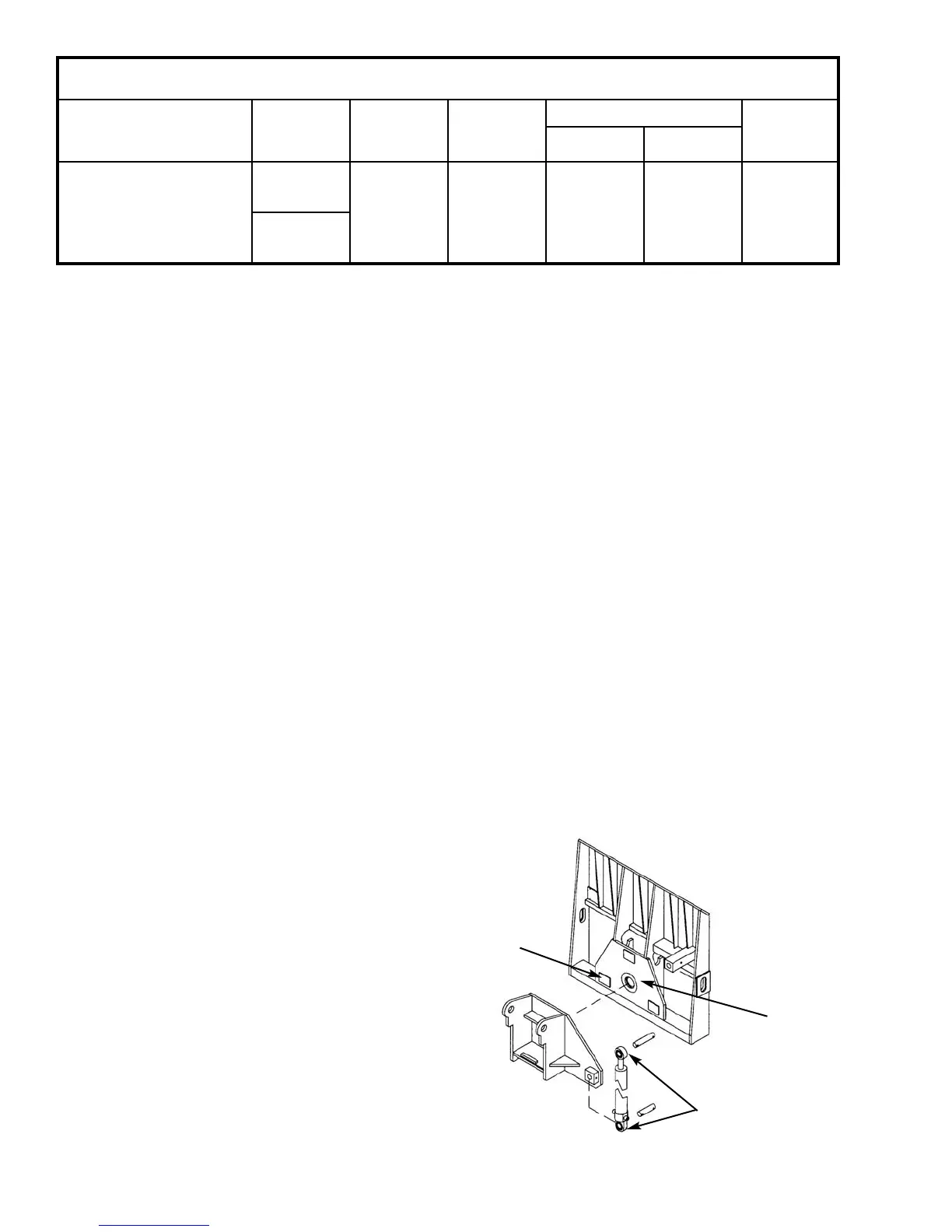

19 Boom slide pads - as required, front and rear
