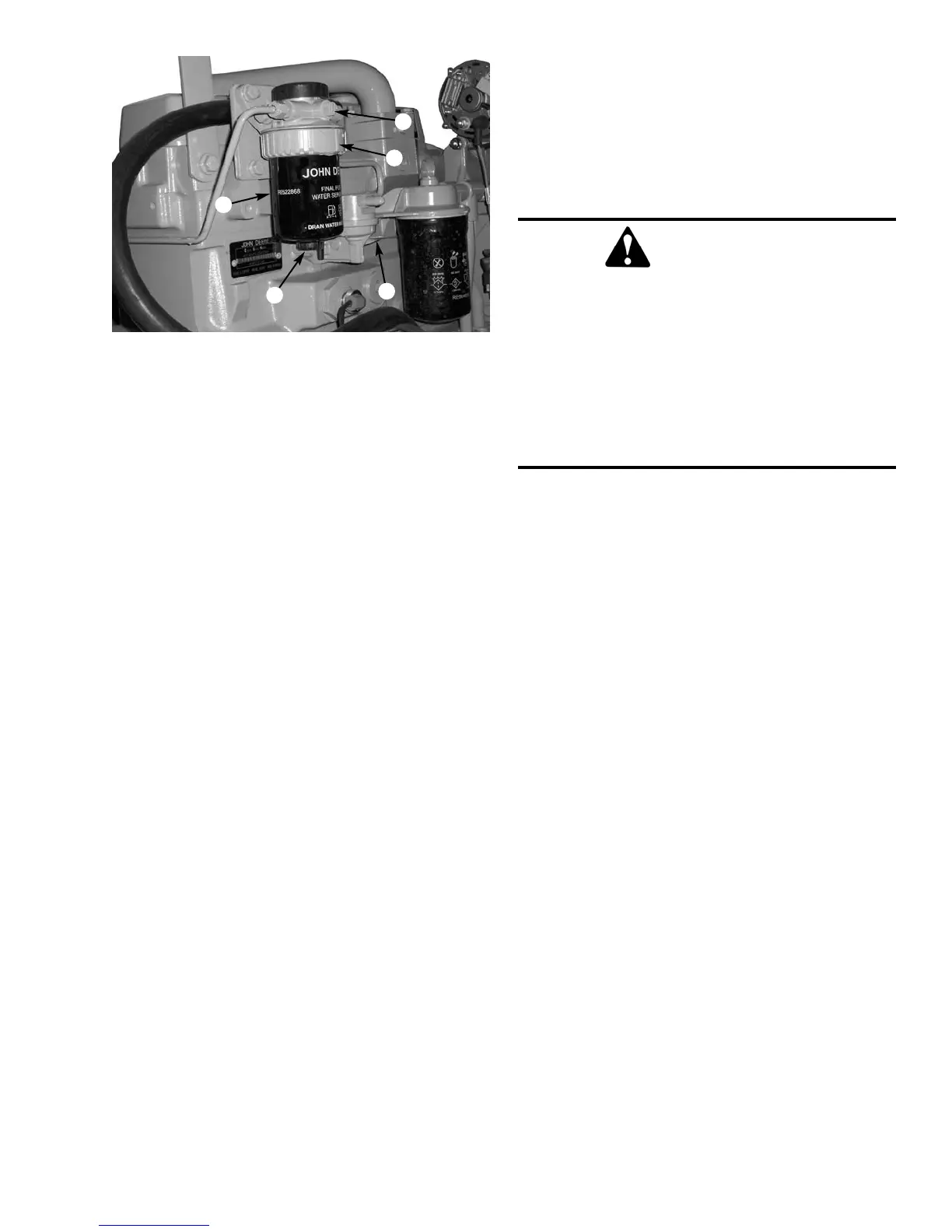

1. Thoroughly clean fuel filter assembly and sur-
rounding areas.
2. Loosen drain plug (C) and drain fuel into a suitable
container.
3. Firmly grasp retaining ring (A) and rotate it clock-
wise 1/4 turn. Remove ring with the filter element
(B).
NOTE: Lifting up on retaining ring (A) as it is rotat-
ed helps to get it past raised locators.
4. Inspect filter mounting base for cleanliness. Clean
as required.
NOTE: Raised locators on the fuel filter canister
must be indexed properly with slots in mounting
base for correct installation.
5. Install new filter element onto mounting base. Be
sure element is properly indexed and firmly seated
on base. It may be necessary to rotate filter for cor-
rect alignment.
6. Install retaining ring onto mounting base making
certain dust seal is in place on filter base. Hand
tighten ring counterclockwise (about 1/3 turn) until
it snaps into the detent. DO NOT overtighten
retaining ring.
After fuel filter replacement, bleed the air out of the
fuel system by following the fuel bleeding procedure.
Fuel Bleeding Procedure
When the fuel filter is removed and replaced, or the
engine runs out of fuel, air must be bled from the sys-
tem. Refer to the following procedure for proper bleed-
ing procedures.
1. Loosen the air bleed vent screw (D) two full turns
by hand on the filter base.
2. Operate the fuel supply pump primer lever (E)
until fuel flows out of the bleed vent screw.
3. Tighten bleed vent screw securely. Continue oper-
ating the primer until pumping action is not felt.
4. Start engine and check for leaks.
If the engine will not start, repeat steps 1-4.
Diesel Fuel Injectors
Whenever faulty or plugged injectors are indicated, see
your authorized engine dealer.
Diesel Injection Pump Timing
Whenever injection pump timing, or other injection
pump service is indicated, such as by abnormal engine
operation, contact your authorized engine dealer.
NOTE: Only an authorized engine dealer can per-
form warranty service on the engine.
CHANGING ENGINE OIL AND FILTER
Change the engine oil and filter using the following
procedure:
1. With the engine warm, remove the crankcase drain
plug.
IMPORTANT: DO NOT discharge oil onto ground.
Catch and dispose of per local waste disposal
regulations.
2. The engine oil filter should be changed at every oil
change interval. Using a suitable filter wrench,
remove and discard the filter.
IMPORTANT: Filtration of oils is critical to proper
lubrication. Always change filter with every oil
change. Use only genuine OEM engine replace-
ment filters.
WARNING
Escaping diesel fuel under pressure can have
sufficient force to penetrate the skin. Before
applying pressure to the fuel system, BE
SURE all connections are tight and lines and
hoses are not damaged. Use a piece of wood
or cardboard to search for suspected leaks. If
injured by escaping fuel, see a doctor familiar
with this type of injury at once or gangrene
may result.
