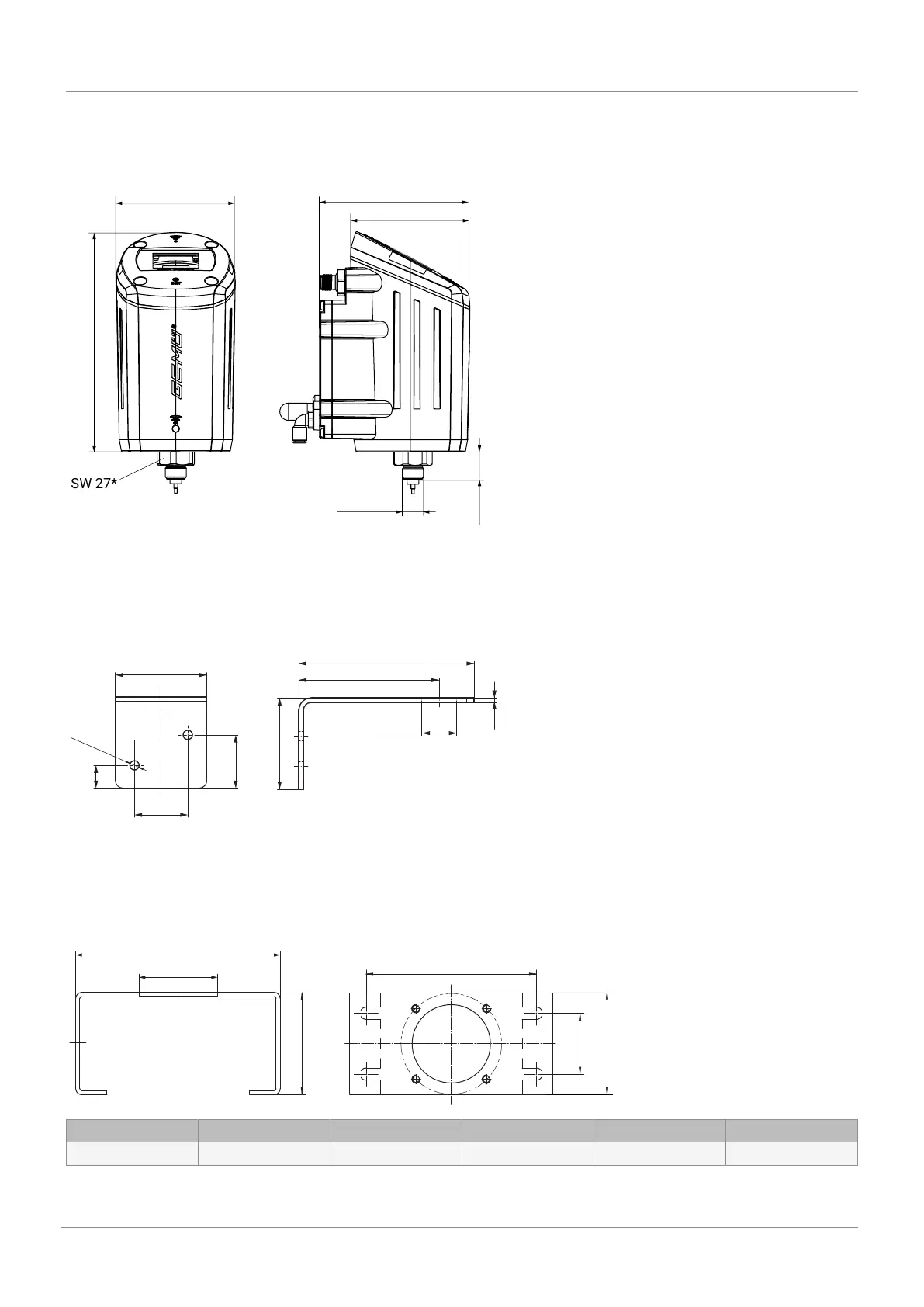

Dimensions
Positioner 1441
SW 27*
90.0
90.0
113.0
166.2
* Travel sensor version code 075
M 16x1*
20.3*
Dimensions in mm
1441 000 ZMP mounting bracket for remote mounting
Remote mounting (see page16)
60.0
115.0
92.0
Ø22.5
35.0
35.0
3.0
15.0
Ø6.2
60.0
Dimensions in mm
1441 000 ZMB mounting bracket for remote mounting with the GEMÜ 4231 travel sensor
for remote mounting
Remote mounting (see page17)
C
A
D
E
E1
ØB
A ØB C D E E1
45.0 36.0 100.0 84.0 50.0 30.0
Dimensions in mm
