CAM086U
© Copyright System Q Ltd 2015
All specifi cations are approximate. System Q Ltd reserves the right to
change any product specifi cations or features without notice. Whilst
every effort is made to ensure that these instructions are complete and
accurate, System Q Ltd cannot be held responsible in any way for
any losses, no matter how they arise, from errors or omissions in these
instructions, or the performance or non-performance of the equipment
that these instructions refer to.
This symbol on the products and/or accompanying
documents means that used electronic equipment
must not be mixed with general household waste. For
treatment, recovery and recycling please return this unit
to your trade supplier or local designated collection
point as defi ned by your local council.
WEE/CG0783SS

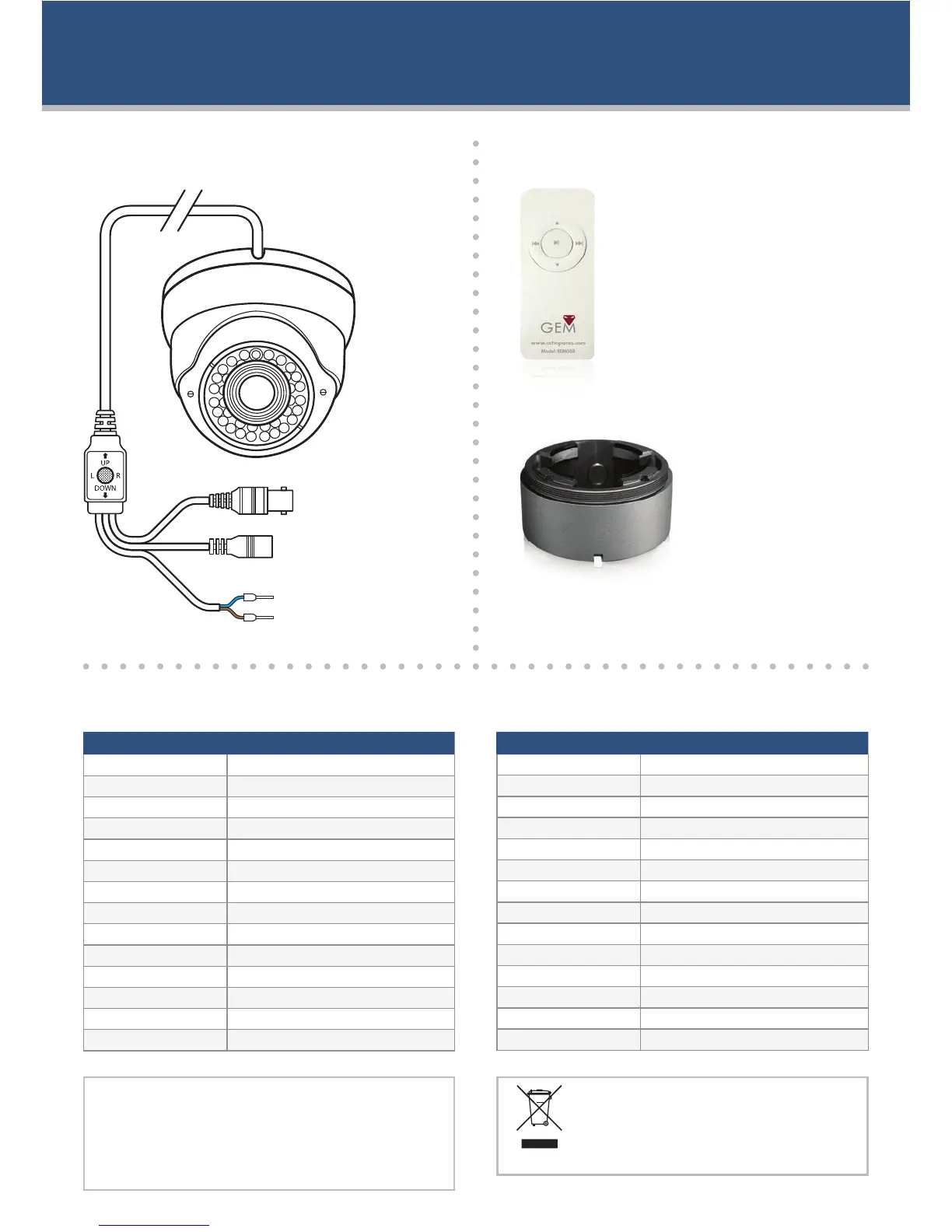

Connections Other Products To Consider
BNC Socket
2.1mm DC Socket
RS485 + (Blue)
RS485 - (Brown)
FunCtIOn SpeCIFICAtIOn
Image Sensor 1/3” SONY ICX811AK Effio-E
DSP SONY CXD4151GG Effio-A
Horizontal Resolution 720TVL
Effective Pixels 976(H) x 582(V)
Electronic Shutter Speed
Auto 1/50 ~1/100, 000Sec
Minimum Illumination 0.001Lux/F2.0 (0Lux IR On)
S/N Ratio
Video Output Level
Lens 2.8-12mm Varifocal
Focus Manual
Lens Type Manual
Pixels 2 Mega Pixel
IR LEDs 36
IR Range 30m
Speci cation
FunCtIOn SpeCIFICAtIOn
OSD Menu Language
ENG, SPA, RUS, POR, GER, FRA, CHI, JAP
OSD Control Up The Co-ax, RS485 & In-line Joystick
Sense-up Auto
Wide Dynamic Range Super Wide Dynamic Range
Auto / Manual
Gain Control Auto / Manual
Noise Reduction 3D NR
Privacy Masking 15 Areas
Operating Temperature
Supplied Voltage 12V DC ±10%
Current Consumption 700mA
Dimensions Ø131 x 93mm
Weight Approximately 550g
REM088 - UTC Controller
In-line OSD controller allows you to
configure the camera via the co-ax
cable whilst next to the DVR.
CAM089 - Extra
Deep Base
Creates extra room
for wiring the camera.
Available in Grey, Silver
and White.
