Gemini AS-2115BT User Manual

AS Series
AS-2108BT / AS-2110BT
AS-2112BT / AS-2115BT

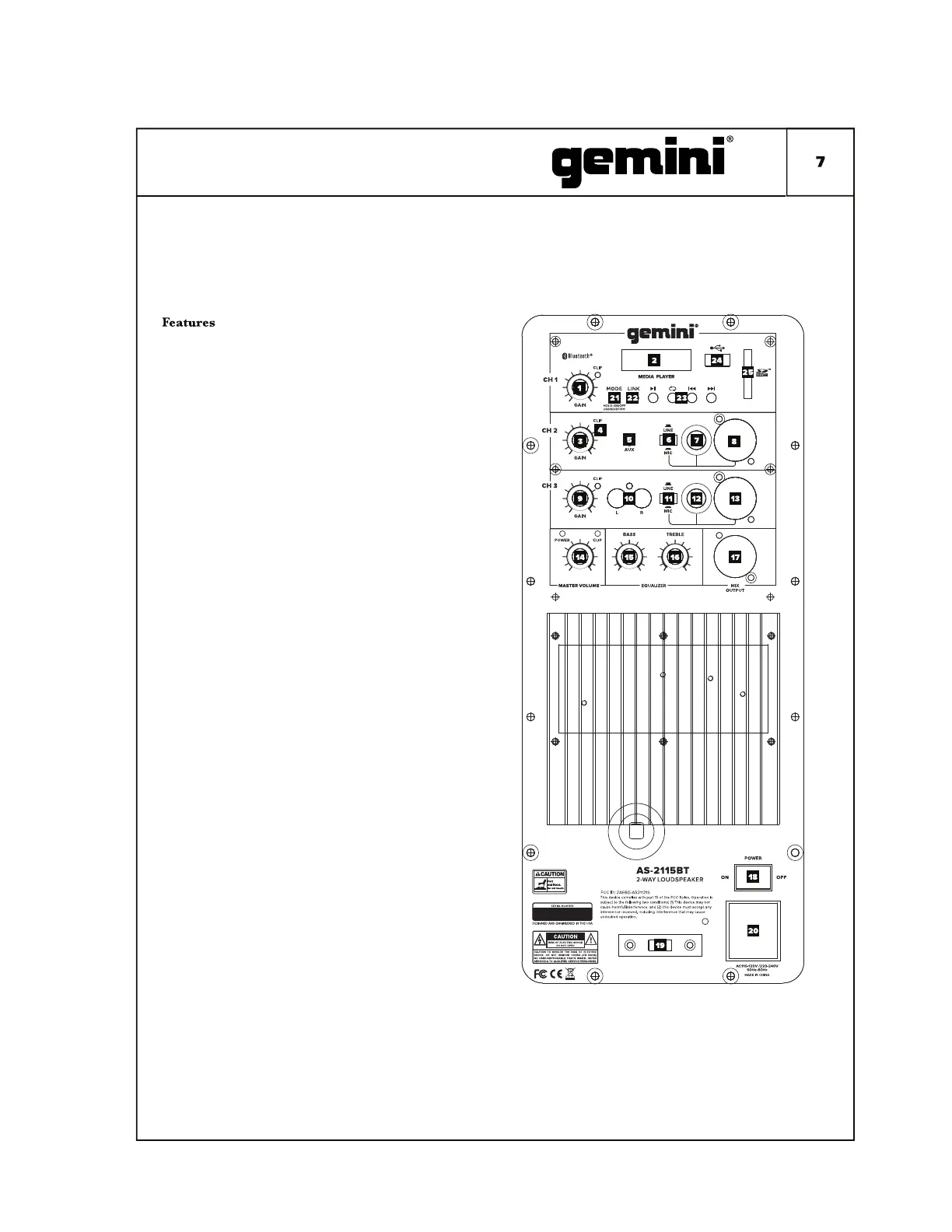

1.Channel 1 volume : Adjusts the loudness of the source
connected to CH1
2. LCD: : Displays info for USB/SD/BT/FM radio playback
3.
Channel 2 volume : Adjusts the loudness of the source
connected to CH2
4. Clip LED: Indicates audio clipping.
5.
AUX input（TRS): Connect a digital media player,
etc. to this 1/8" stereo input.
6/11. Mic/Line input switch: Allows user to choose
the MIC or Line signal input.
7/12.
Mic/Line input: Connect a microphone or line
signal to this 1/4" TRS input
8/13:
Mic/Line input: Connect a microphone or line
signal to this XLR input
9:
Channel 3 volume : Adjusts the loudness of the
source connected to CH3
10:
AUX Input (RCA): Connect a CD player, mixer, or
other media source to this line level RCA input.
14:
Master volume : Adjust the loudness of the whole
system.
15:
Bass EQ: Controls the bass(low) frequencies of
speaker at a range between -12dB to + 12dB.
16:
Treble EQ: Controls the treble(high) frequencies of
speaker at a range between -12dB to + 12dB.
17:
Mix Out: Use this XLR output to create a wired
connection to another powered speaker, etc.
18:
Power ON/OFF Switch: Turns unit on or off.
19:
Voltage Switch : Allows user to change the AC
voltage input.
20：
AC Power Input : Mains power supply(supplied
with speaker) plugs in here.
21. MODE : Press to switch Media Playback between
USB/SD/BT/FM Radio. Hold to turn player on/off.
22.
Link: Use to create a wireless pair with another AS
Series Bluetooth™ Speaker.
23.
Transport: Control media player playback.
Play/Pause, Repeat, Skip Forward, Skip Back.
24.
USB port: Insert USB stick for MP3/WAV playback
25.
SD port: Insert SD Card for MP3/WAV playback

Gemini AS-2115BT Specifications

General

Speaker type	2-way
Number of drivers	-
Speaker placement	Flyable, Stand-mountable
Audio output channels	- channels
Woofer diameter (imperial)	15 \
Frequency range	40 - 20000 Hz
RMS rated power	- W
Audio formats supported	MP3, WAV
Product color	Black
Bass adjustment	Yes
Housing material	Acrylonitrile butadiene styrene (ABS)
Recommended usage	Universal
Amplifier class	A/B
Amplifier output power	2000 W
Bluetooth range	9.14 m
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wireless
Stand included	No
Quantity per pack	1 pc(s)
