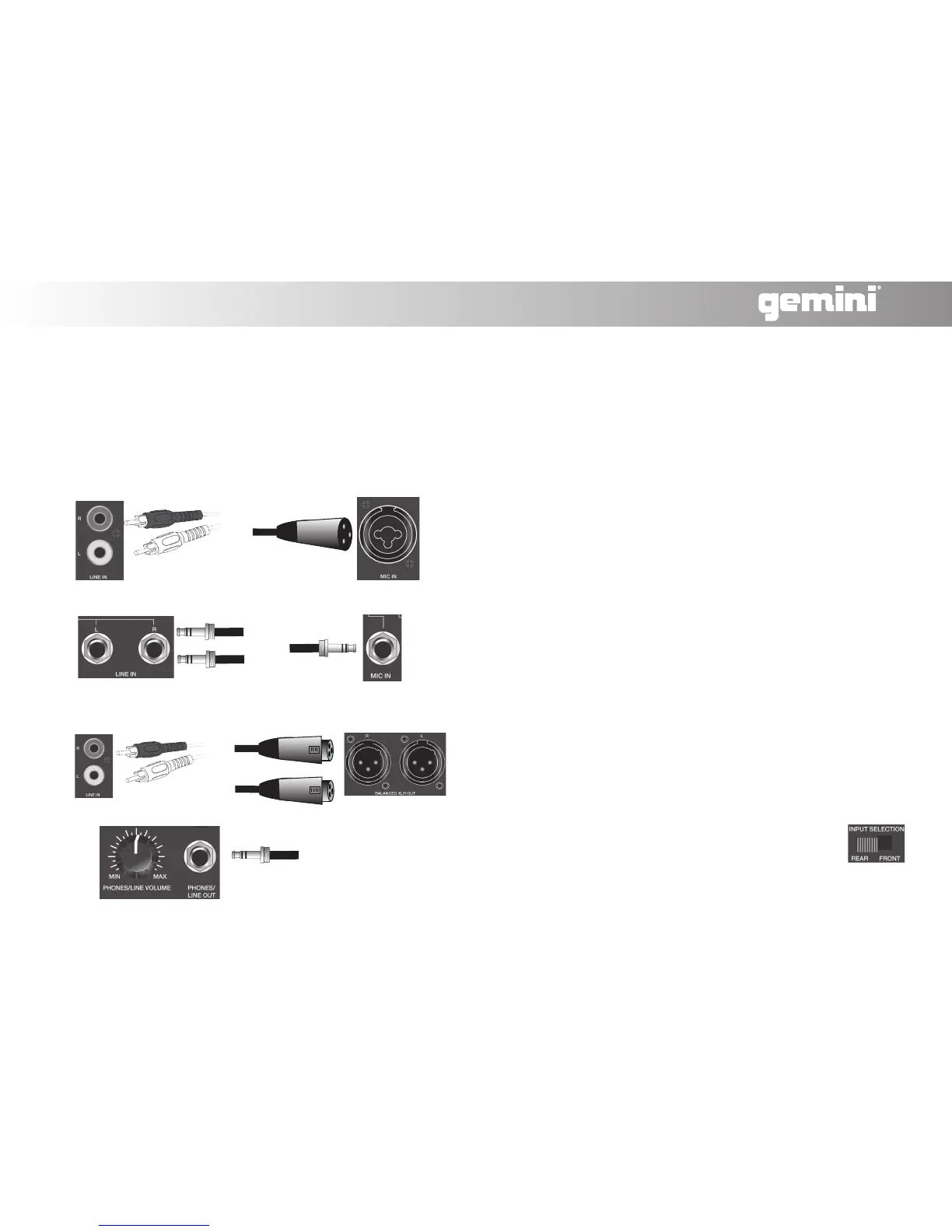

The following is a list of the inputs and outputs contained on the unit
and a their appropriate connectors.
INPUT (Back)
(Front)
OUTPUT (Back)
(Front)
• Stereo RCA Line In (4) is where you input the signal coming from
a line source via a stereo RCA connection.
• XLR Mic Input (3) is where you connect the signal coming from a
microphone source via a 1/4” (6.35mm) input.
• 1/4” (6.35mm) Stereo Line Input (6) is where you input the signal
coming from a stereo line source via a dual 1/4”
• (6.35mm) connection.
• 1/4” (6.35mm) Mic Input (5) is where you input the signal coming
from a Mic source via a 1/4” (6.35mm) connection.
• Stereo RCA Line Outputs (8) send a stereo RCA signal to an
• output source.
• Balanced XLR Outputs (7) send a balanced XLR signal to an
• output source.
• 1/4” (6.35mm) Phones/ Line Out (9) sends the signal to
• headphones or an output source through an 1/4” (6.35mm)
• output and has a dedicated volume control.
•
*Note: MIC and LINE signals can only be read one at a time when re-
cording. If they are both connected to the unit at the same time, only
the MIC connection will be recorded.
On the front of the DRP-1 unit are two switches that are set to define
what type of signal is being input and where it is connected on the
unit. This ensures that every time a recording is made all other
connections do not have to be removed.
The FRONT-BACK switch is set according to where the
signal to be recorded is connected to the unit, namely the
back of the unit or the front. (FRONT-BACK Switch (22))
CONNECTIONS AND SYSTEM CONTROL
CONEXIONES Y CONTROL DE SISTEMA • CONNEXIONS & UTILISATION • ANSCHLÜSSE UND SYSTEMEINSTELLUNGEN
8
Recording Setup with the DRP-1
(Input / Output Connections)
Stereo RCA Line Input (4)
XLR / 1/4” Combo Mic Input (3)
1/4” (6.35mm) Stereo Line Inputs (6)
1/4” (6.35mm) Mic Input (5)
Stereo RCA Line Outputs (8)
1/4” (6.35mm) Phones/ Line Out (9)
Balanced XLR Outputs (7)
MIC/LINE & FRONT/BACK Switches
