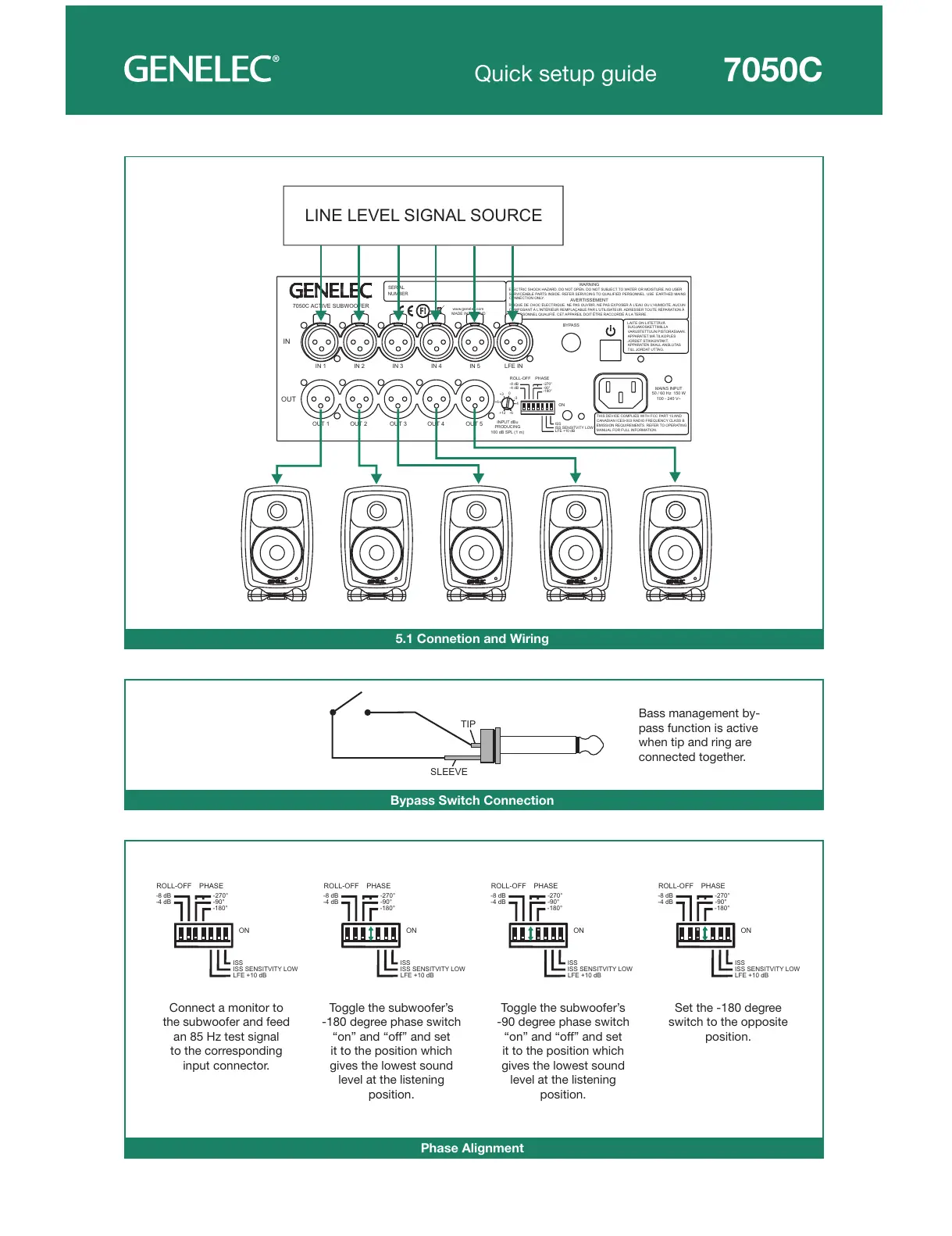

Genelec 7050C Quick Setup Guide

Quick setup guide 7050C
MAINS INPUT
50/60Hz 150 W
100-240 V~
7050C ACTIVE SUBWOOFER
SERIAL
NUMBER
OUT
IN
BYPASS
ROLL-OFF PHASE
-270°
-8 dB
-4 dB
ON
ISS
LFE +10 dB
-6
0
+3
+12
-3
LFE IN
+6
-4
INPUT dBu
PRODUCING
100 dB SPL (1 m)
ISS SENSITVITY LOW
-90°
-180°
ELECTRIC SHOCK HAZARD. DO NOT OPEN.DO NOT SUBJECTTOWATER OR MOISTURE.NOUSER
SERVICEABLE PA RTSINSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. USEEARTHED MAINS
CONNECTION ONLY.
LAITE ON LIITETTÄVÄ
SUOJAKOSKETTIMILLA
VARUSTETTUUN PISTORASIAAN.
APPARATET MÅ TILKOPLES
JORDET STIKKONTAKT.
APPARATEN SKALL ANSLUTAS
TILL JORDATUTTAG.
RISQUE DE CHOC ÉLECTRIQUE.NEPAS OUVRIR. NE PAS EXPOSERÀL'EAU OU L'HUMIDITÉ. AUCUN
COMPOSANTÀL'INTÉRIEUR REMPLAÇABLE PA RL'UTILISATEUR. ADRESSER TOUTERÉPARATIONÀ
UN PERSONNEL QUALIFIÉ. CET APPAREIL DOIT ÊTRERACCORDÉ ÀLA TERRE.
AVERTISSEMENT
WARNING
IN 1IN2 IN 3
IN 4IN5
OUT1 OUT2 OUT 3OUT 4OUT 5
THIS DEVICE COMPLIES WITH FCCPART15AND
CANADIAN ICES-003 RADIOFREQUENCY CLASS B
EMISSION REQUIREMENTS. REFER TO OPERAT ING
MANUALFOR FULL INFORMATION.
MADE IN FINLAND
www.genelec.com
LINE LEVEL SIGNALSOURCE
5.1 Connetion and Wiring
Bypass Switch Connection
Phase Alignment
ROLL-OFF PHASE
-270°
-8 dB
-4 dB
ON
ISS
LFE +10 dB
ISS SENSITVITY
LOW
-90°
-180°
Connect a monitor to
the subwoofer and feed
an 85 Hz test signal
to the corresponding
input connector.
Toggle the subwoofer’s
-180 degree phase switch
“on” and “off” and set
it to the position which
gives the lowest sound
level at the listening
position.
Toggle the subwoofer’s
-90 degree phase switch
“on” and “off” and set
it to the position which
gives the lowest sound
level at the listening
position.
Set the -180 degree
switch to the opposite
position.
ROLL-OFF PHASE
-270°
-8 dB
-4 dB
ON
ISS
LFE +10 dB
ISS SENSITVITY LOW
-90°
-180°
ROLL-OFF PHASE
-270°
-8 dB
-4 dB
ON
ISS
LFE +10 dB
ISS SENSITVITY
LOW
-90°
-180°
ROLL-OFF PHASE
-270°
-8 dB
-4 dB
ON
ISS
LFE +10 dB
ISS SENSITVITY
LOW
-90°
-180°
Bass management by-
pass function is active
when tip and ring are
connected together.
TIP
SLEEVE
