Genelec SAM 8361A - Page 3

3

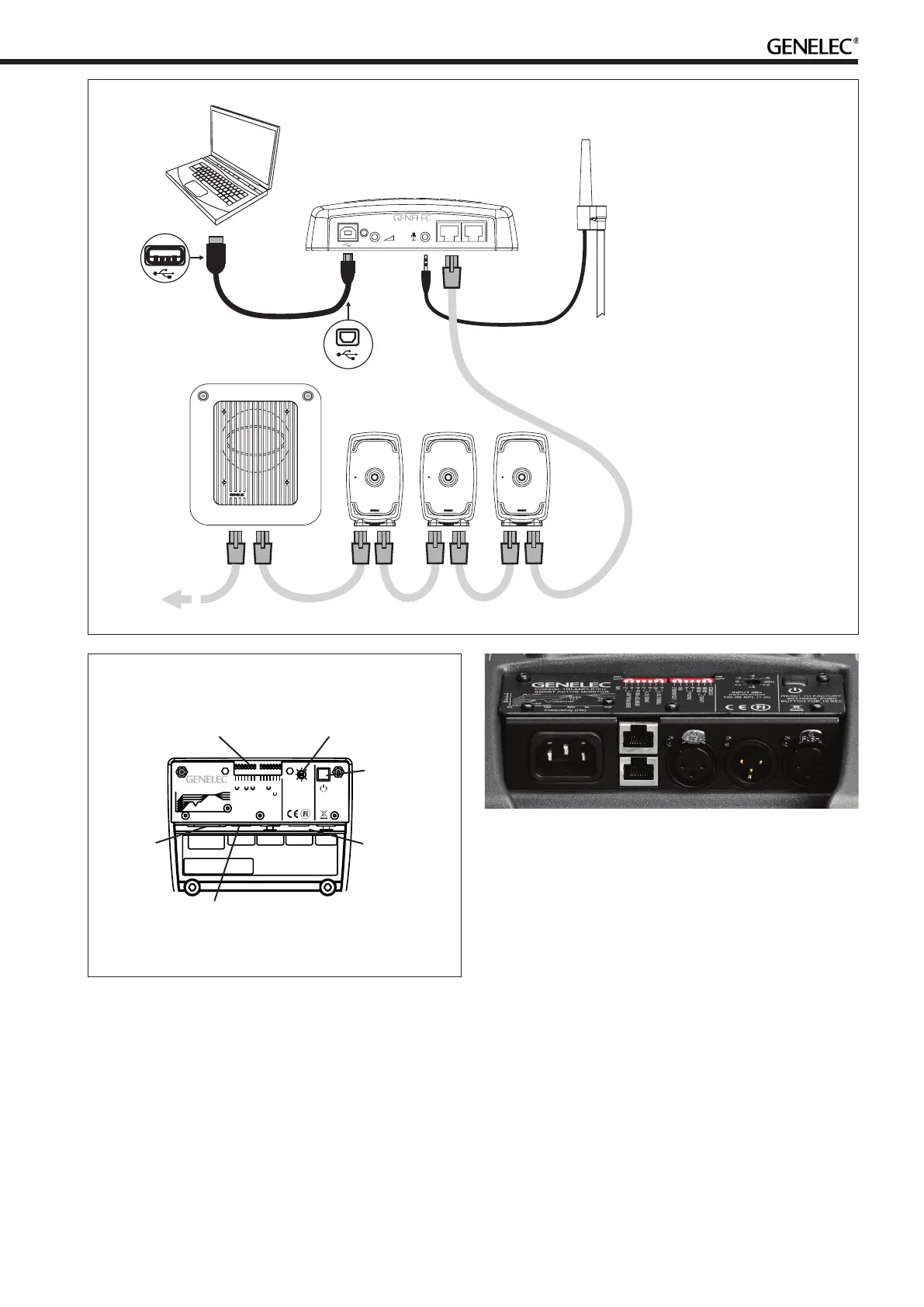

Figure 2. Connectors and controls on the back panel of a 8361A.
Figure 1. GLM control network cabling
Figure 3. Connector panel detail.
3. Using a microphone stand, place the Genelec measurement
microphone (in GLM Kit) at the listening location. Point
microphone upwards. Place the microphone top at the ear
height for typical listener.
4. Connect the microphone to the microphone input in the
GLM Adapter device.
5. Download and install the GLM software at the Genelec web
site (www.genelec.com). Follow instructions in the software
to measure and set up your monitors.
6. If you plan not to use a computer for managing monitors,
store settings in monitors with GLM software (menu item
“Store | Store the Current Group Settings…”).
Enable stored settings by turning the DIP switch “Stored” on
the monitor to ON after the network has been disconnected.
The CONTROL NETWORK RJ-45 connectors are not
Ethernet LAN compatible. Do not connect to Ethernet LAN.
Stand-alone Mode: Setup Without Using
The GLM
You can adjust the 8361A without GLM using the controls on the
back of the monitor. These stand-alone settings are limited and
provide some fundamental compensations for room acoustic
effects, input selections and input sensitivity. To use, disconnect
the GLM management network and set the DIP switch “Stored”
to OFF position.
ANALOG
IN
DIGITAL THRU
AES/EBU
DIGITALIN
AES/EBU
MADE IN FINLAND
8361A
SERIALNUMBER
www.genelec.com
GLM
NETWORK
MAINSINPUT
50 /60Hz 600 W
100 240 V~
This devicecomplies
with FCC Part15and
Canadian ICES 003
radiofrequency
Class Bemission
requirements. Refer
to operatingmanual
for full information.
BASS ROLL OFF
LEDDISABLE
BASS TILT
A
20 dB
B
2
4
2
4
ON
OFF
STORED
(dB)
10 dB
RESET TO FACTORY
SETTINGS:PUSH
BUTTONFOR 10 SEC
LEVEL
DIGITAL
TREBLE TILT
+2
4
DESKTOP160 Hz 4
(dB)
20 160
+2
2
4
dB
6
0
4k 20k
BASS
TILT
800
BASS
ROLL OFF
DESKTOP
ALLOFF
TREBLE
TILT
Frequency(Hz)
INPUT dBu
PRODUCING
100 dB SPL (1 m)
ISS
2
+4
+2
4
6
+6
dBu
0
COAXIAL TRIAMPLIFIED
SMARTACTIVE MONITOR
DIP SWITCHES FOR
STAND ALONE USE
ROTARY LEVEL
CONTROL
POWER
SWITCH
AUDIOSIGNAL
CONNECTORS:
DIGITALIN
DIGITAL THRU
ANALOG IN
MAINS
INPUT
GLM NETWORK
CONNECTORS
MICROPHONE
PLACED IN
THE LISTENING
POSITION
292 0063
GLM
TERMINATOR
COMPUTER
RUNNING
GLMSOFTWARE
USB CABLE
GLM ADAPTER
GLM NETWORK
CABLE
MONITORS
SUBWOOFER
