Generac Power Systems 1600PSI

GENERAC
REPAIR PARTS  XXXXXX...
21
High Pressure Washer
Generac 1600PSI High Pressure Washer

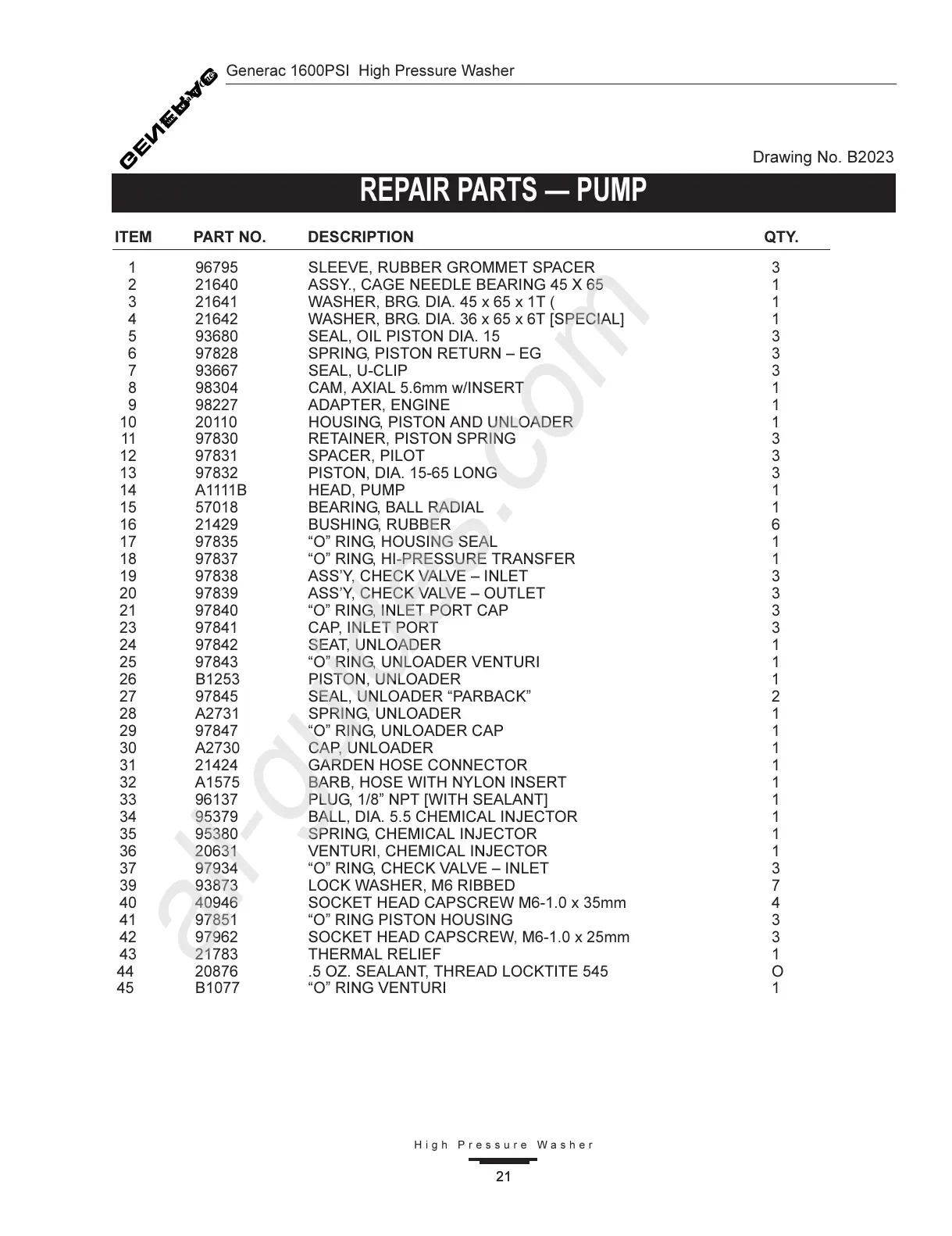

REPAIR PARTS  PUMP
21
Drawing No. B2023
ITEM PART NO. DESCRIPTION QTY.
1 96795 SLEEVE, RUBBER GROMMET SPACER 3
2 21640 ASSY., CAGE NEEDLE BEARING 45 X 65 1
3 21641 WASHER, BRG. DIA. 45 x 65 x 1T ( 1
4 21642 WASHER, BRG. DIA. 36 x 65 x 6T [SPECIAL] 1
5 93680 SEAL, OIL PISTON DIA. 15 3
6 97828 SPRING, PISTON RETURN  EG 3
7 93667 SEAL, U-CLIP 3
8 98304 CAM, AXIAL 5.6mm w/INSERT 1
9 98227 ADAPTER, ENGINE 1
10 20110 HOUSING, PISTON AND UNLOADER 1
11 97830 RETAINER, PISTON SPRING 3
12 97831 SPACER, PILOT 3
13 97832 PISTON, DIA. 15-65 LONG 3
14 A1111B HEAD, PUMP 1
15 57018 BEARING, BALL RADIAL 1
16 21429 BUSHING, RUBBER 6
17 97835 O RING, HOUSING SEAL 1
18 97837 O RING, HI-PRESSURE TRANSFER 1
19 97838 ASSY, CHECK VALVE  INLET 3
20 97839 ASSY, CHECK VALVE  OUTLET 3
21 97840 O RING, INLET PORT CAP 3
23 97841 CAP, INLET PORT 3
24 97842 SEAT, UNLOADER 1
25 97843 O RING, UNLOADER VENTURI 1
26 B1253 PISTON, UNLOADER 1
27 97845 SEAL, UNLOADER PARBACK 2
28 A2731 SPRING, UNLOADER 1
29 97847 O RING, UNLOADER CAP 1
30 A2730 CAP, UNLOADER 1
31 21424 GARDEN HOSE CONNECTOR 1
32 A1575 BARB, HOSE WITH NYLON INSERT 1
33 96137 PLUG, 1/8 NPT [WITH SEALANT] 1
34 95379 BALL, DIA. 5.5 CHEMICAL INJECTOR 1
35 95380 SPRING, CHEMICAL INJECTOR 1
36 20631 VENTURI, CHEMICAL INJECTOR 1
37 97934 O RING, CHECK VALVE  INLET 3
39 93873 LOCK WASHER, M6 RIBBED 7
40 40946 SOCKET HEAD CAPSCREW M6-1.0 x 35mm 4
41 97851 O RING PISTON HOUSING 3
42 97962 SOCKET HEAD CAPSCREW, M6-1.0 x 25mm 3
43 21783 THERMAL RELIEF 1
44 20876 .5 OZ. SEALANT, THREAD LOCKTITE 545 O
45 B1077 O RING VENTURI 1
