General ASG24ABAJ

2004.10.19
- 7 -
Models : ASG30RBAJ / AOG30RMADH

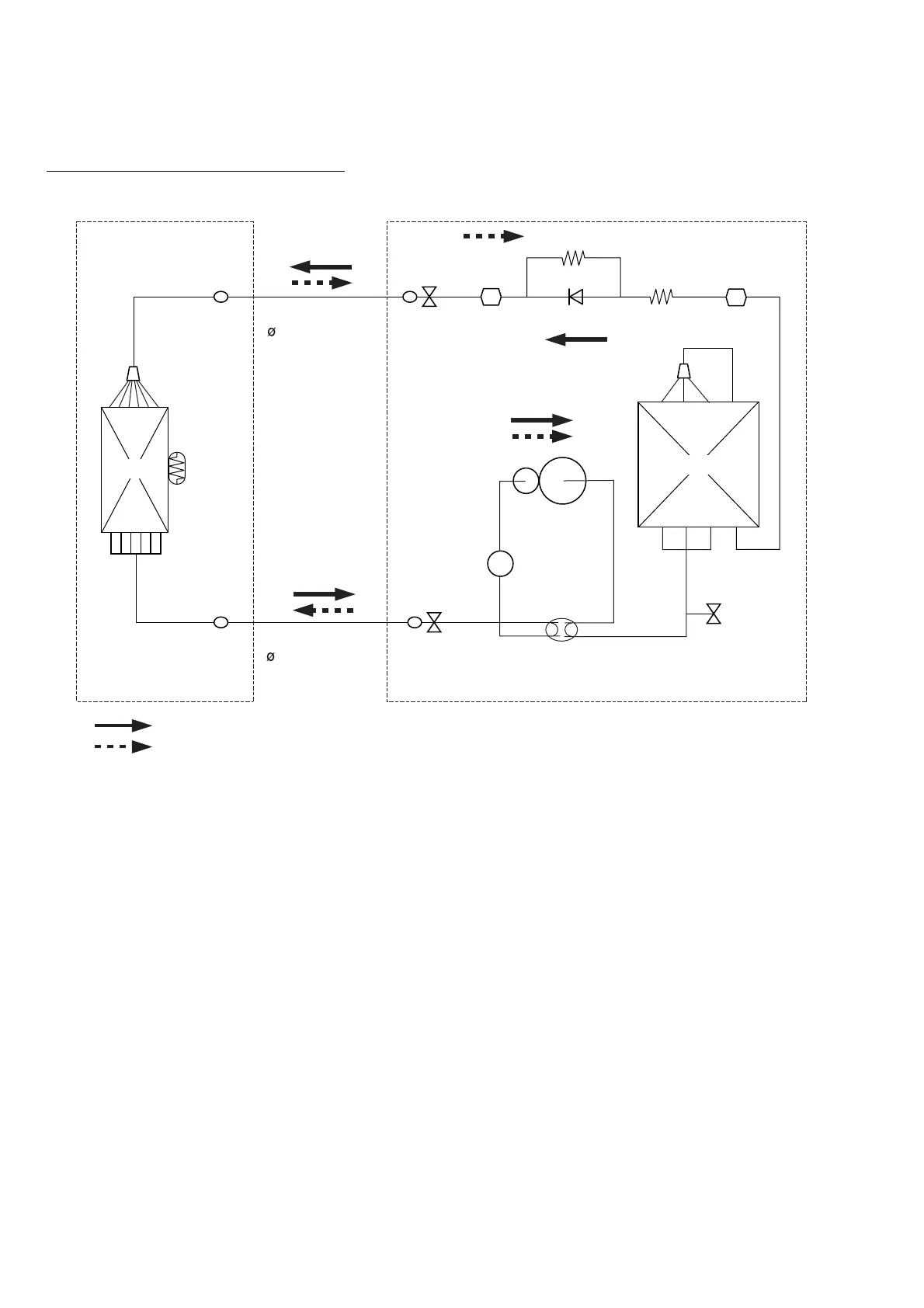

Refrigerant pipe
15.88mm(5/8")
Refrigerant pipe
9.52mm(3/8")
Capillary tube
Capillary
tube
Compressor
4-Way
valve
Pressure
check valve
3-Way
valve
2-Way
valve
Dryer
Check valveStrainer
Accumulator
Thermistor
(Pipe)
OUTDOOR UNIT
Distributor
INDOOR UNIT
Evaporator
Cooling
Heating
Condenser
Distributor
