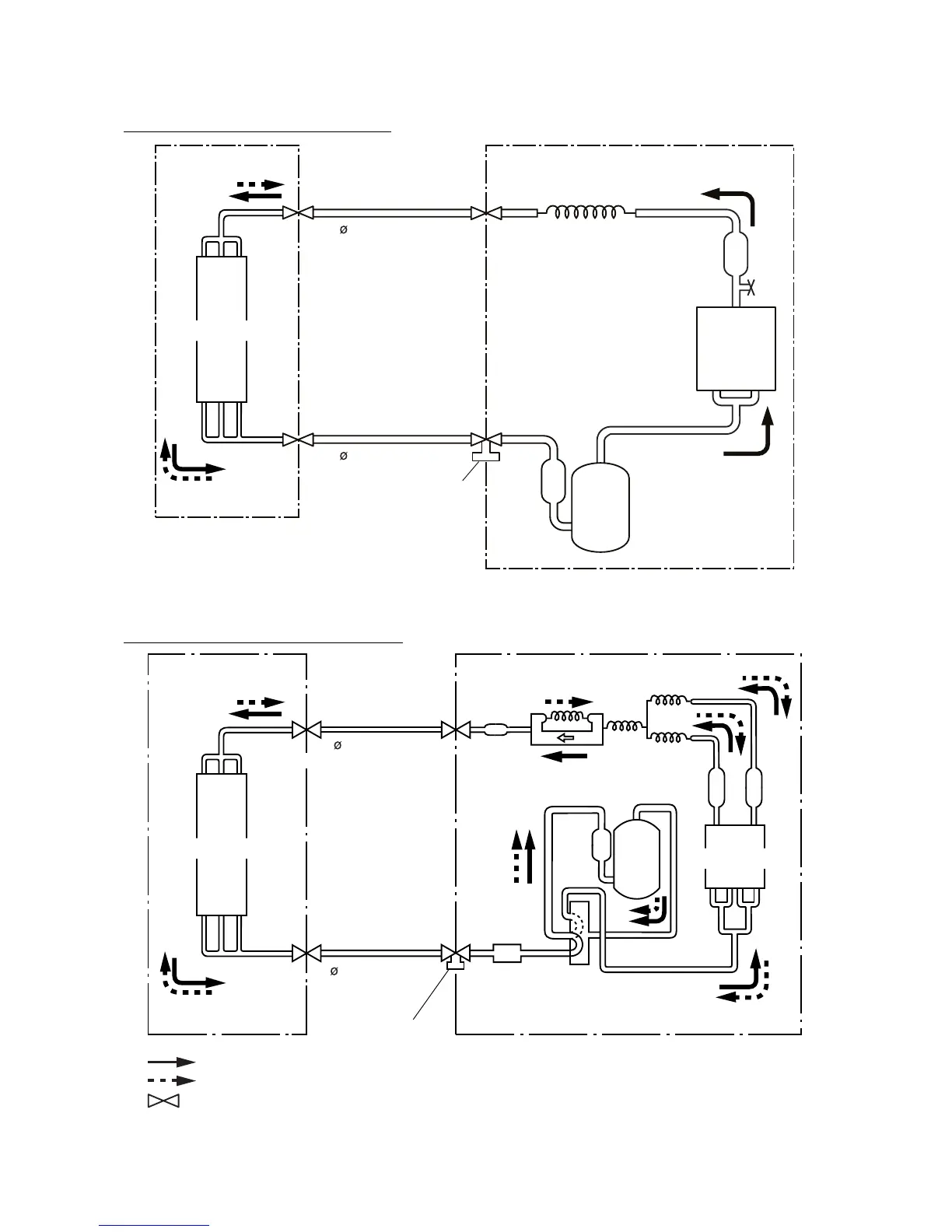

Refrigerant pipe
12.7mm(1/2")
Refrigerant pipe
6.35mm(1/4")
Capillary tube
Charging valve
Compressor
OUTDOOR UNITINDOOR UNIT
Strainer
Condenser
INDOOR UNIT
Refrigerant pipe
6.35mm(1/4")
Refrigerant pipe
12.7mm(1/2")
Capillary
tube
Strainer
Strainer
OUTDOOR UNIT
Condenser
Compressor
4-Way
Muffler
valve
Charging valve
Evaporator
Distributor
Evaporator
Distributor
Strainer
Cooling
Heating
: Flare coupling
Models : AUG14FBAB / AOG14FSDJ
Models : AUG14UBAB / AOG14USDJL
