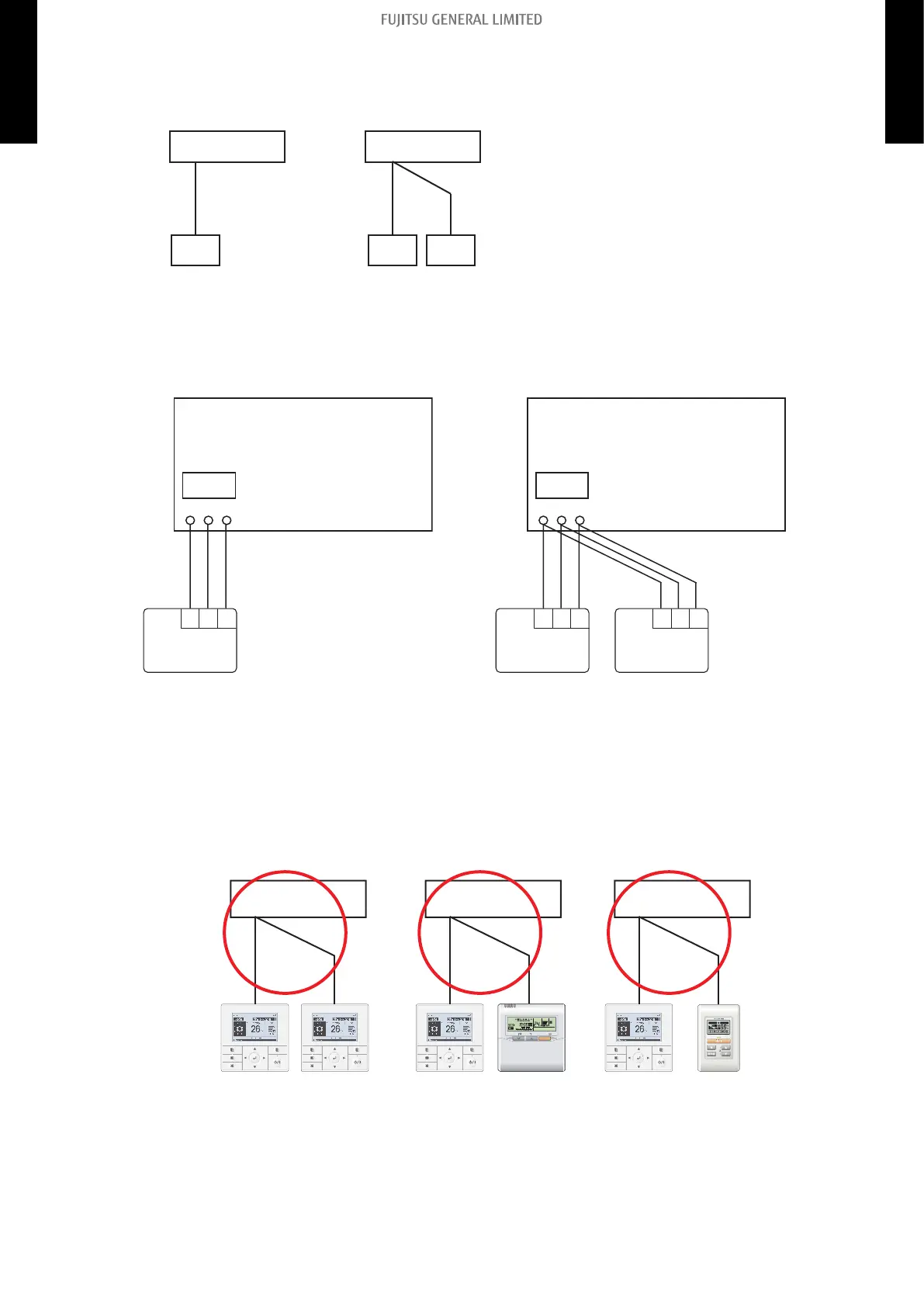

System diagram
1 remote controller:
A
Indoor unit
Remote controller
2 remote controllers:
Primary
Secondary
B C
Indoor unit
Remote controllers
A, B, C: Remote controller cable
A ≤ 500 m;B + C ≤ 500 m
¢
Electrical wiring
1 remote controller:
Remote controller
1 (Red): 12 V
2 (White): Signal
3 (Black): COM
Indoor unit
Remote
controller
1 2 3
1 2 3
2 remote controllers:
Remote controllers
1 (Red): 12 V
2 (White): Signal
3 (Black): COM
Primary Secondary
Indoor unit
1 2 3
1 2 3 1 2 3
Remote
controller
¢
Controller combination
As for the combined usage of the controller, refer to following figures.
 Good
UTY-RVNGM UTY-RNNGM UTY-RVNGM UTY-RSNGM
Indoor unit
UTY-RVNGM
SET TEMP.
START/STOP
Indoor unit
Indoor unit
UTY-RVNGM
- 209 -
13-8. Wired remote controller (UTY-RVNGM: Optional part)
13. Remote controller
4-5 UNIT MULTI-SPLIT TYPE 4-5 UNIT MULTI-SPLIT TYPE
