Date: 2021-08-17
Copyright of the European Union is effective (Copyright EU) (c) 2021 GENEREX Systems GmbH, Hamburg, Germany, All rights reserved
TEL +49(40)22692910 - EMAIL generex@generex.de - WEB www.generex.de (This and all other product datasheets are available for download.)
18
Port list
Required Ports
For optimal functionality, the CS141 requires a various number of ports open or available. Some ports are standard ports within
your computer, others need to be opened in order to use all functions. Please check on-site whether the following ports are
available for usage:
Echo 7/tcp
echo 7/udp
WOL 9/udp
ftp-data 20/tcp
ftp 21/tcp
telnet 23/tcp
smtp 25/tcp
http 80/tcp
snmp 161/udp
snmptrap 162/udp
time (rfc868) 37/tcp
time (sntp) 123/tcp
rccmd 6003
Upsmon 5769
Modbus over IP 502/tcp
This user guide covers all the menus that you can encounter when configuring a CS141. Basically it is written for firmware
version 1.62 and subsequent versions with a special eye on SITEMANAGER 6and SITEMONITOR 6. Many menus will be
available for all products of the CS141 family and the configuration method is similar. Once you understood the concept, you will
be able configure any device of the CS141 family intuitivly.
If you can not find a menu, there are several reasons:
- The CS141 you are using does not offer this feature
- The firmware version you are using is older so the feature this manual describes is not available
- The configuration menu is present, but has been delayed by the ongoing development process
Basic settings

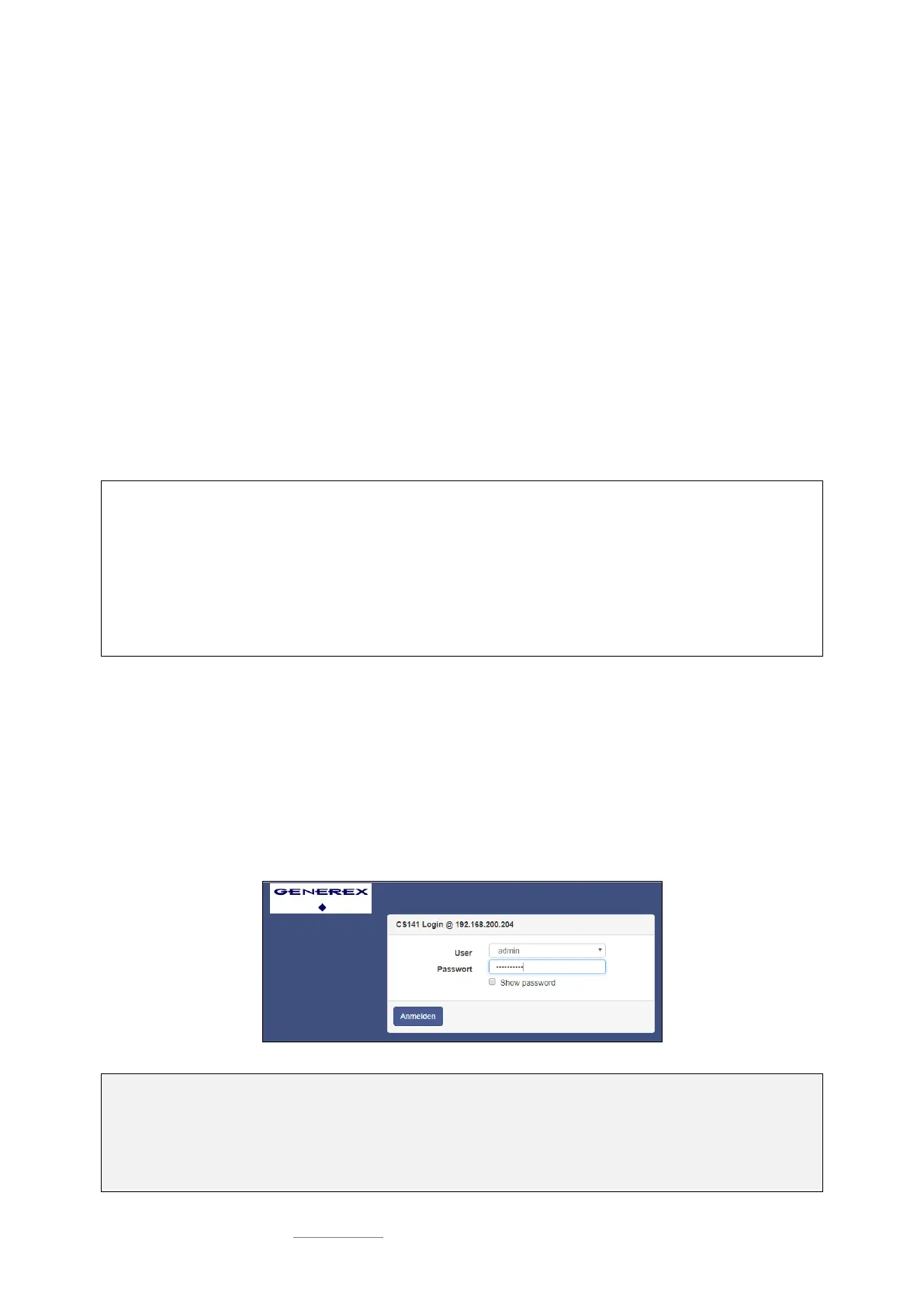

After you enter the IP address, the CS141 responds with its web interface and prompts for a password
There are three users with different system rights to choose from. The users are predefined, the passwords can be freely
defined:
User: admin Password: cs141-snmp ... System administrator, complete menu tree accessible
User: engineer Password: engineer ... Technician, administrative restricted system access
User: guest Password: guest … guest account, only status indicators visible
To start initial configuration, log in with user admin and default password cs141-snmp
Note
Modern web browsers are designed to display websites as fast as possible. Among other things, special techniques are used to
pre-load images, pages and query masks are loaded into a buffer for a faster review. In some cases, this web browser
behaviour may result in screen errors.
If these phenomena occur, update the browser by pressing CTRL + F5 or clear the cache of the web browser and deactivate
additionally installed tools and addons, which could obstruct the presentation.
