Generic Hamilton User Manual

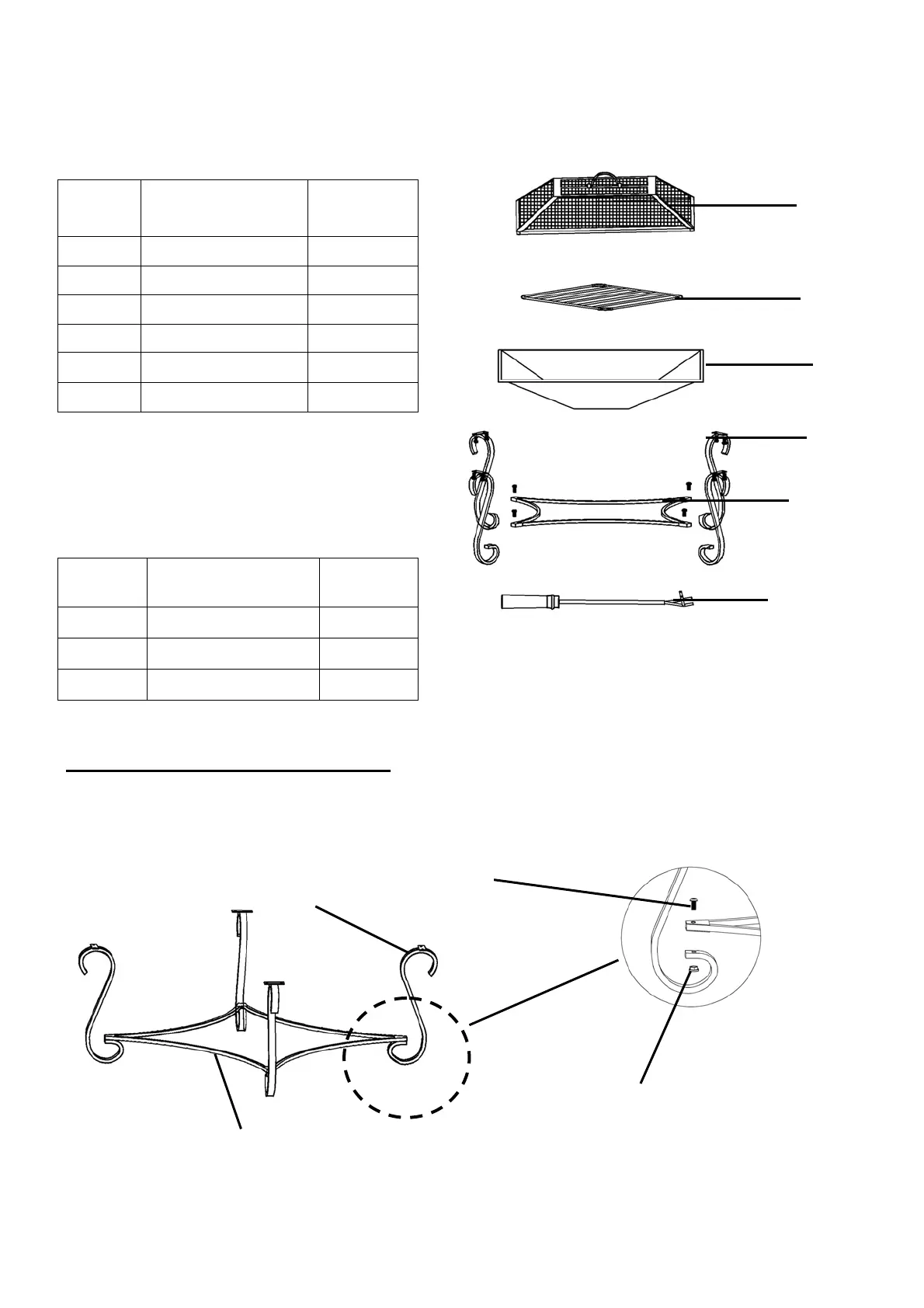

FIRE PIT PARTS LIST
No. PARTS Qty
A Mesh wire cover 1
B Wood grate 1
C Fire bowl 1
D Legs 4
E Bottom ring 1
F Poker 1
HARDWARE LIST
No. Hardware Qty
AA M6 x 10 mm Bolt 8
BB M6 x 25 mm Bolt 4
CC M6 Nut 4
Step By Step Assembly Instructions:
Step 1: Connect the legs (D) to the bottom ring (E) by using M6 x 25 mm bolt (BB) and M6
Nut(CC), Please DO NOT tighten the hardware at this time.
A
B
F
E
C
D
E
BB

D
CC

Generic Hamilton Specifications

General

Brand	Generic
Model	Hamilton
Category	Outdoor Fireplace
Language	English
