Genesis BYC-013TG1 - Wiring Specifications and Pump Installation

- 16 -
NOTE:
Only for signal control, not direct
connection to power supply

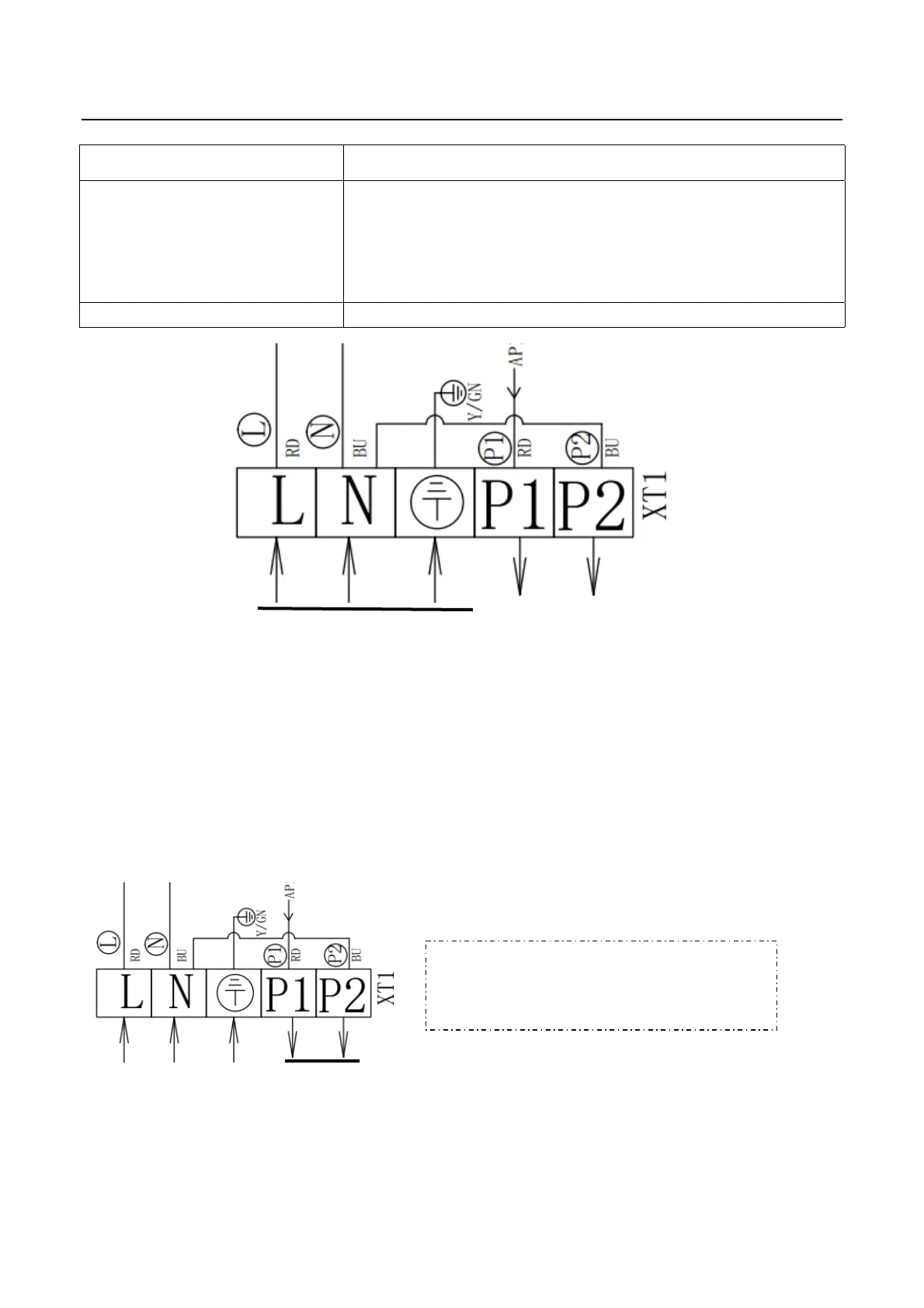

7.2 Electrical Wiring Specification
Model
Electrical Wiring Specification
BYC-007TG1
BYC-010TG1
BYC-013TG1
BYC-017TG1
BYC-021TG1
3*2.5 mm²
Terminal
Terminal c a b l e max. 4 mm²
POWER SUPPLY
Figure 14
7.3 Circulation pump installation
The heat pump only provides a signal for the circulation pump, A separate A.C. Contactor is
required to connect the circulation pump.
To water pump
AC 220~240V 50Hz
Maximum 1200W
