January 2012Section 4 • Repair Procedures
4 - 60 GS-30 • GS-32 • GS-46 • GS-47 Part No. 228901
16
17
13
4
5
14
15
2
9
3
GS-2046
7
12
1
6
8
GS-2032
10
11

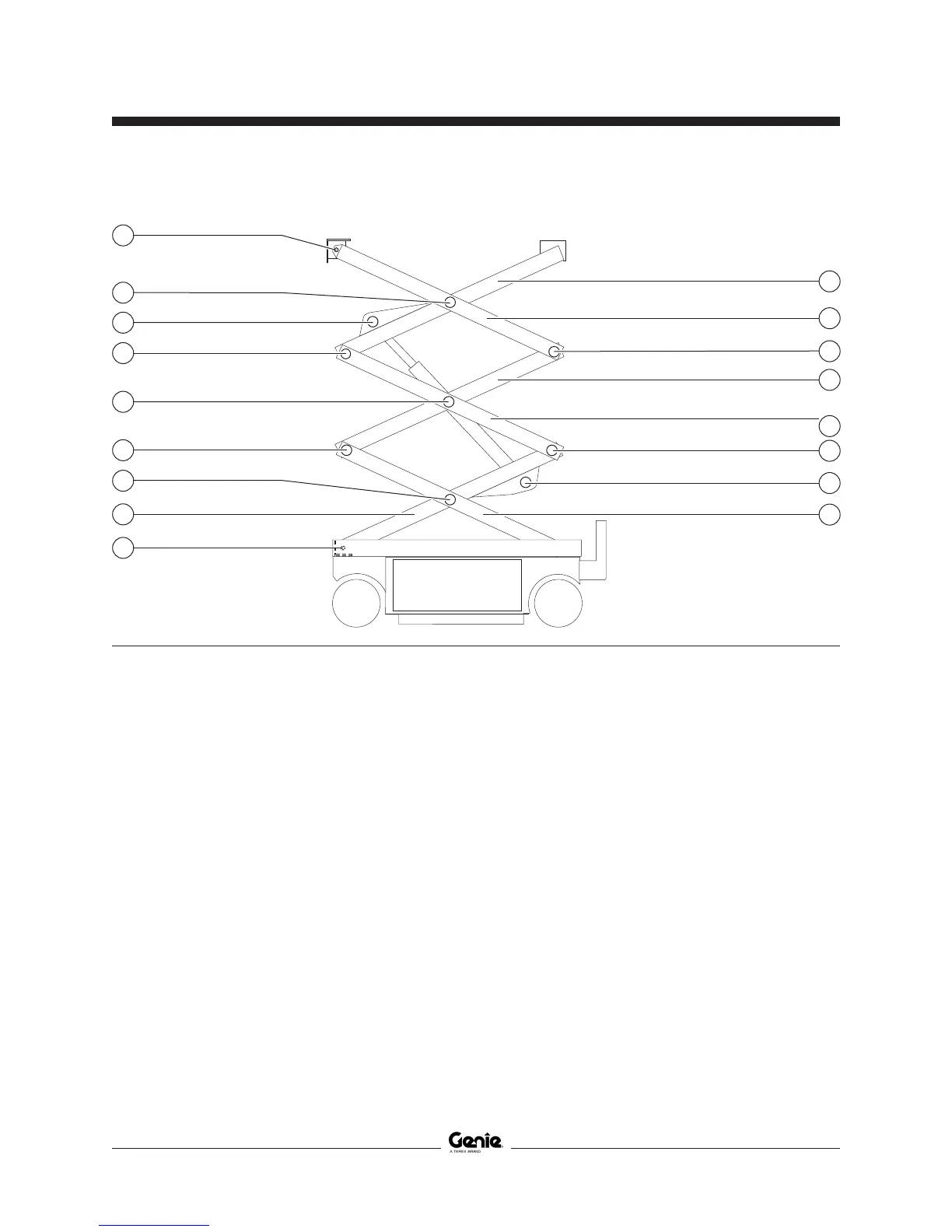

SCISSOR COMPONENTS
Non-steer endSteer end
1 Number 4 pivot pin
2 Number 3 center pivot pin (2 pins
3 Lift cylinder rod-end pivot pin
4 Number 3 pivot pin (steer end)
5 Number 2 center pivot pin (2 pins)
6 Number 2 pivot pin (steer end
7 Number 1 center pivot pin (2 pins)
8 Number 1 inner arm
9 Number 1 pivot pin
10 Number 3 inner arm
11 Number 3 outer arm
12 Number 3 pivot pin (non-steer end)
13 Number 2 inner arm
14 Number 2 outer arm
15 Number 2 pivot pin (non-steer end)
16 Lift cylinder barrel-end pivot pin
17 Number 1 outer arm
