Genie GC-1530 User Manual

January 2012Section 4 • Repair Procedures
4 - 68 GS-30 • GS-32 • GS-46 • GS-47 Part No. 228901
15
21
22
18
6
1
2
7
12
19
13
20
14
4
11
16
5
GS-2646
9
17
3
8
10
GS-2632
Non-steer endSteer end
1 Number 5 pivot pin
2 Number 4 center pivot pin (2 pins)
3 Number 4 pivot pin (steer end)
4 Number 3 center pivot pin (2 pins)
5 Lift cylinder rod end pivot pin
6 Number 3 pivot pin (steer end)
7 Number 2 center pivot pin (2 pins)
8 Number 2 pivot pin (steer end)
9 Number 1 center pivot pin (2 pins)
10 Number 1 inner arm
11 Number 1 pivot pin
12 Number 4 inner arm
13 Number 4 outer arm
14 Number 4 pivot pin (non-steer end)
15 Number 3 inner arm
16 Number 3 outer arm
17 Number 3 pivot pin (non-steer end)
18 Number 2 inner arm
19 Number 2 outer arm
20 Number 2 pivot pin (non-steer end)
21 Lift cylinder barrel-end pivot pin
22 Number 1 outer arm

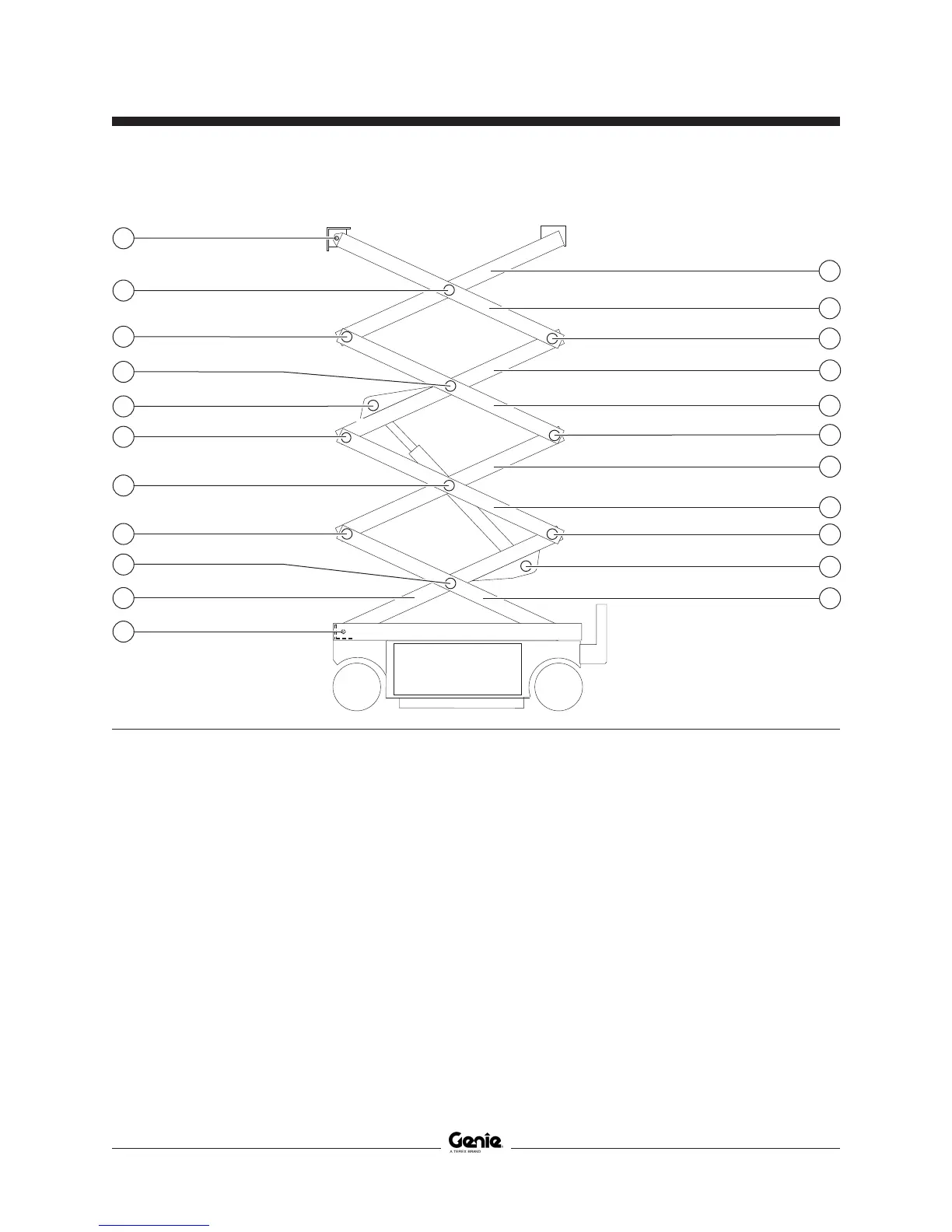

SCISSOR COMPONENTS
