Section 4 • Repair ProceduresJanuary 2012
Part No. 228901 GS-30 • GS-32 • GS-46 • GS-47 4 - 11
GROUND CONTROLS
13 Install the level sensor retaining fasteners
through the level sensor and springs, and into
the mount bracket. Tighten the fasteners and
measure the distance between the level sensor
and the level sensor mount bracket.
Result: The measurement should be
approximately
3
/8 inch / 10 mm.
14 Connect the chassis wire harness to the level
sensor wire harness.
15 Turn the key switch to the ground control and
pull out the red Emergency Stop button to the
on position at the ground controls.
16 Adjust the level sensor retaining fasteners until
the bubble at the top of the level sensor is
centered in the circles.
Result: The tilt sensor alarm should not sound.
17 Raise the platform slightly.
18 Return the safety arm to the stowed position.
19 Lower the platform to the stowed position.
20 Center a lifting jack under the drive chassis at
the ground controls side of the machine.
21 Raise the machine approximately
2 inches / 5 cm.

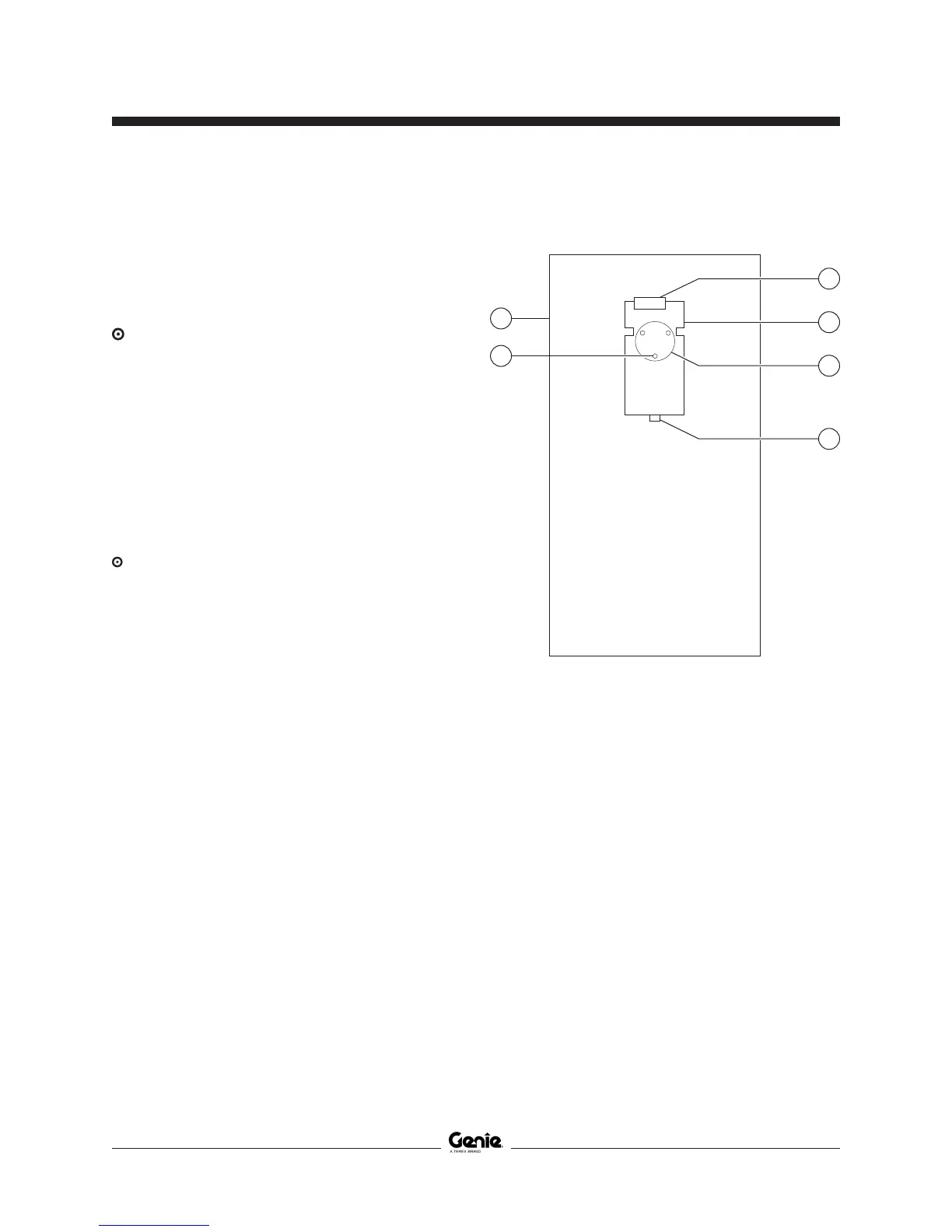

Steer end
Non-steer end
a limit switch
b level sensor mount bracket
c level sensor S7
d alarm H5
e level sensor retaining fastener
f scissor chassis
X
Y
e
f
c
b
d
a
