Section 4 • Repair ProceduresJanuary 2012

Part No. 228901 GS-30 • GS-32 • GS-46 • GS-47 4 - 25

MANIFOLDS

Index Schematic

No. Description Item Function Torque

— Coil nut (item DN) ................................................................................................................. 4-5 ft-lbs / 5-7 Nm

— Plug ......................................................................................................................................... 13 ft-lbs / 18 Nm

1 Lift pressure selector valve,

200 psi / 138 bar ........................................ DM ...................... Lift relief .................................. 20 ft-lbs / 27 Nm

2 Solenoid valve, 2 position 2 way ............... DN ...................... Lift circuit ................................ 20 ft-lbs / 27 Nm

5-5

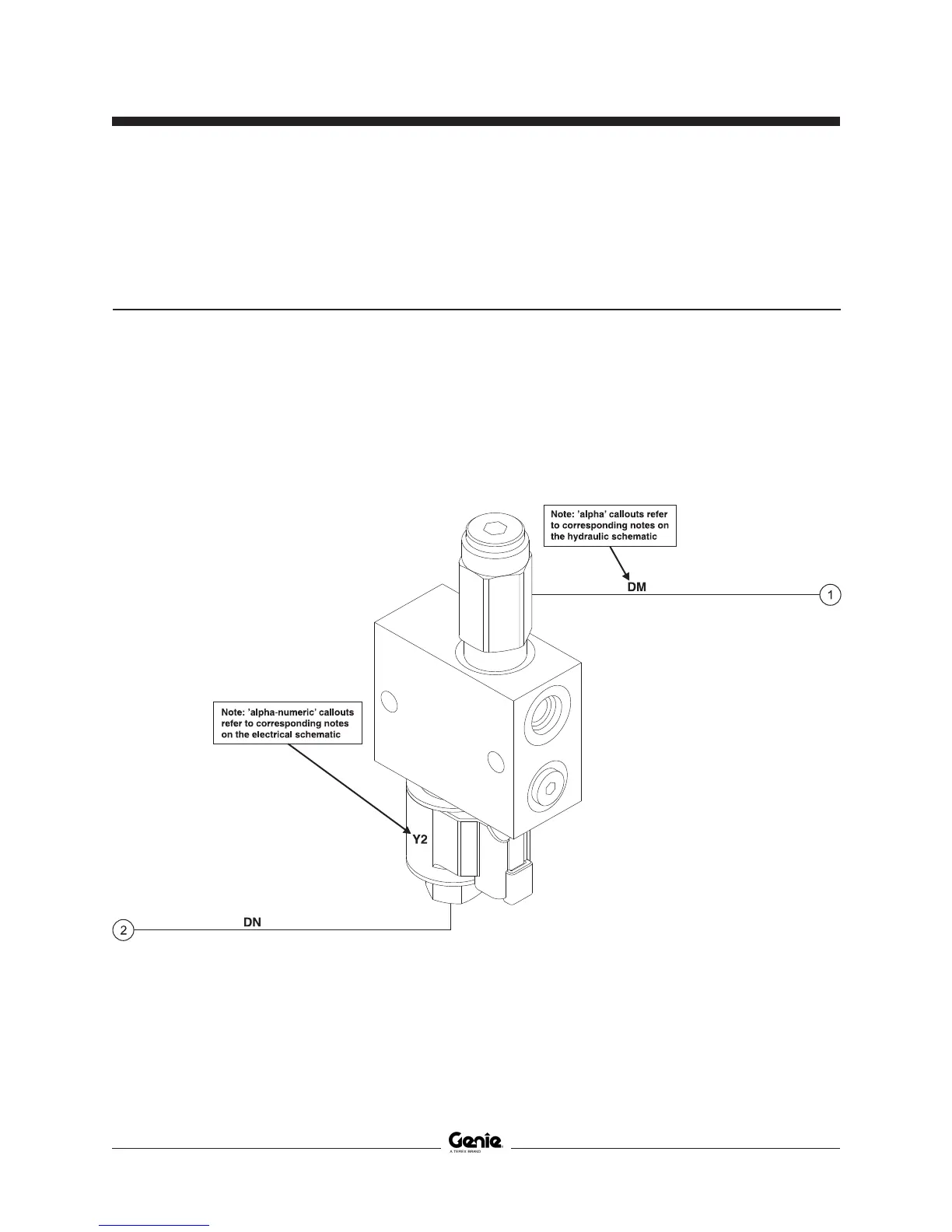

Lift Pressure Selector Manifold Components -

GS-4047

The check valve manifold is mounted on the function manifold.

How to Install a Valve Cartridge

1 Dip the cartridge in clean oil to lube the O-rings.

2 Screw the cartridge in by hand until the top

O-ring is met, then torque to specification.

3 If required, install the valve coil(s) onto the
