Genie Z Series User Manual

Maintenance Manual April 2018
Maintenance Procedures
32 S
®
Booms • Z
®
Booms Part No. 1268489GT
Maintenance Schedule
The maintenance procedures have been divided
into subsections that include: Commissioning,
Quarterly, Annually and Programmed maintenance
intervals. The maintenance inspection report has
been divided into general areas of the machine that
include: Drive Chassis, Booms and Platform,
Functions and Controls, Engine and Turntable.
Failure to perform these procedures may result in
poor performance, component damage and unsafe
operating conditions. They are essential to safe
operation, machine performance and service life.
Commissioning: A series of required one time
maintenance procedures to be performed at 50 and
150 hour intervals.
Quarterly and Annually: A series of maintenance
procedures to be performed quarterly or annually.
Programmed: A series of maintenance
procedures to be performed during a Pre-Delivery
Preparation or based on machine operating hours.
Maintenance Inspection Report
The maintenance inspection report contains
checklists for each type of scheduled inspection.
Make copies of the Maintenance Inspection Report
to use for each inspection. Maintain completed
forms for a minimum of 4 years or in compliance
with your employer, jobsite and governmental
regulations and requirements.

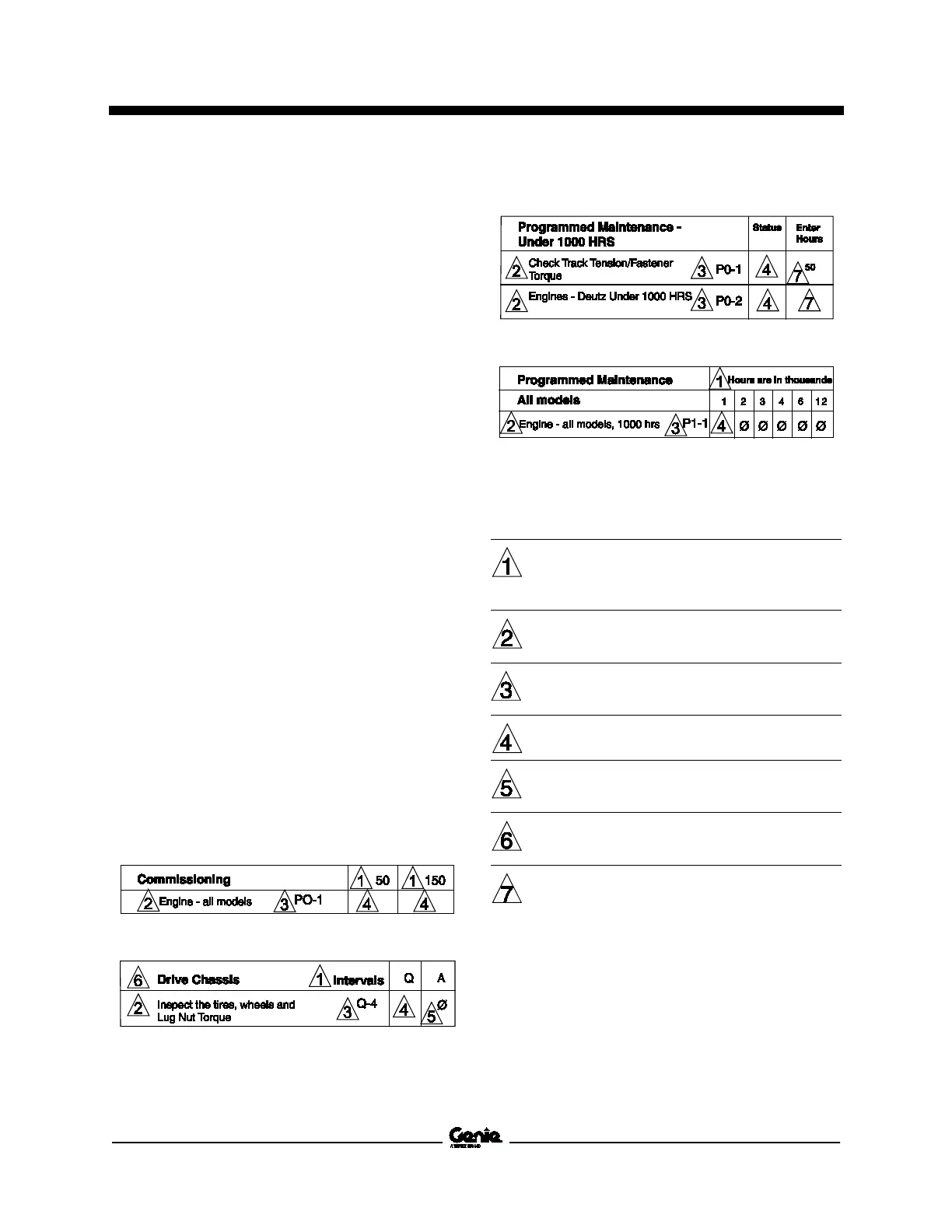

Instruction Examples
Commissioning Example:
Quarterly and Annually Example:
Programmed Example (under 1000 HRS):
Programmed Example:
Instructions Legend
Use the following detailed descriptions to identify
the intended use of the maintenance inspection
reports.
Specific Interval: blank box is the interval to
be completed and the
∅ marks the interval
as not required.
The description of the procedure or
checklist to be completed.
The procedure number or
checklist to be
completed.
Check box to indicate status of inspection.
Specific interval is not required for this
procedure.
General area of the machine to complete
the procedure.
If this box has a designated time interval:
this is the specific
time interval to complete
the procedure or checklist.
If this box is empty: the maintenance
checklist will include multiple time intervals,
use this box to write in the specific interval
for the inspection completed.

Genie Z Series Specifications

General

Lift Capacity	500 lb (227 kg) to 660 lb (300 kg)
Gradeability	30%
Power Source	Diesel, Electric
Capacity	500 lb (227 kg) to 1, 000 lb (454 kg)
Drive System	4-wheel drive
Tire Type	Solid
Steering	2-wheel or 4-wheel
