April 2018 Maintenance Manual
Quarterly Maintenance Procedures
Part No. 1268489GT S
®
Booms • Z
®
Booms 85
Q-32
Check the Safety Envelope Limit
Switches and Angle Sensor -
S-60X, S-60XC and S-80X
Genie specifications require that this procedure be
performed quarterly.
Testing the safety envelope system regularly is
essential to safe machine operation. Continued use
of an improperly operating safety envelope could
result in the system not restricting the range of
motion. Machine stability could be compromised
resulting in the machine tipping over.
Note: Perform this procedure with the machine on
a firm, level surface with all weight, tools and
equipment removed from the platform.
Note: Start this procedure with the boom fully
retracted and in the stowed position.
Ground controls:
1 Turn the key switch to ground control and pull
out the red Emergency Stop button to the on
position.
2 Start the engine from the ground controls.

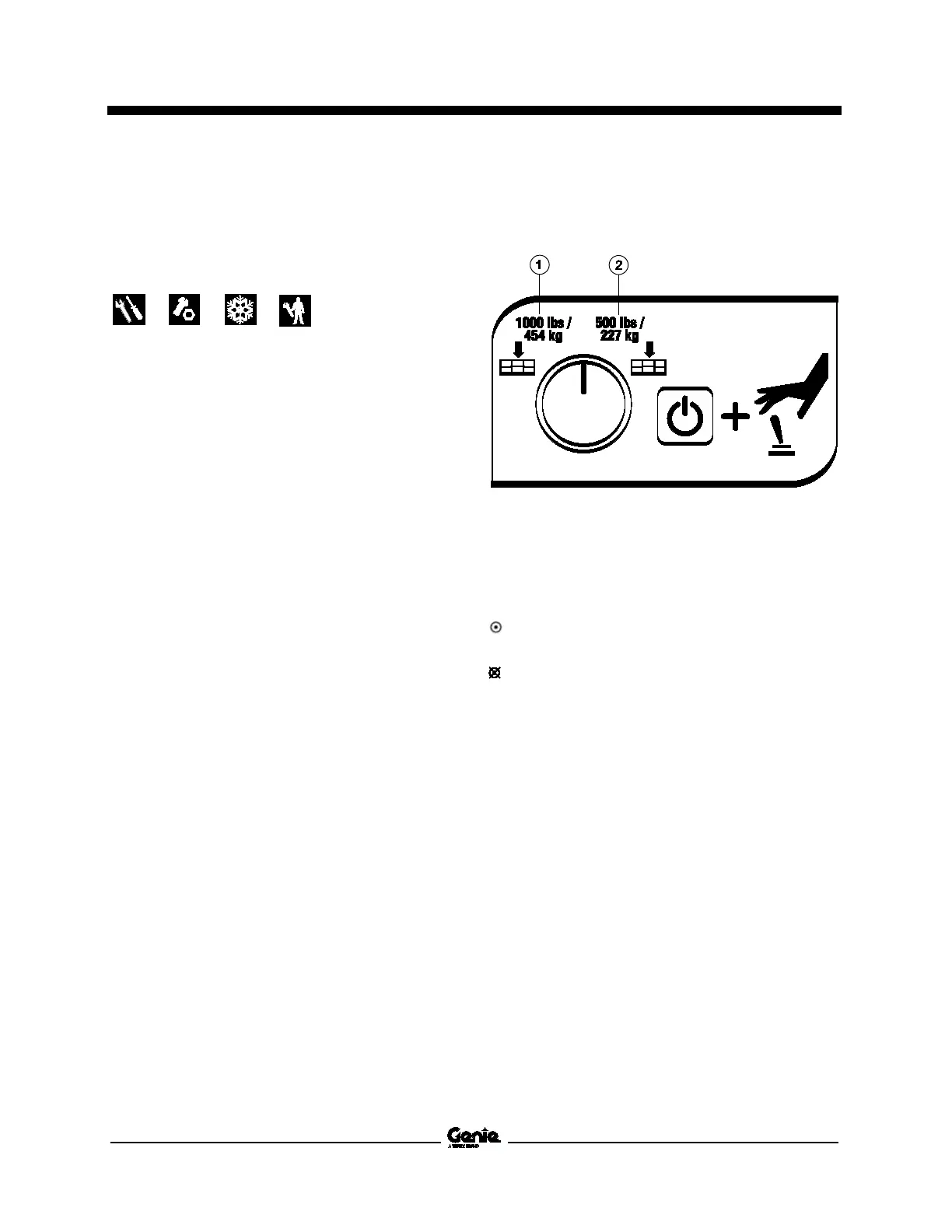

3 Turn and hold the function enable switch to the
restricted maximum platform capacity and
raise the primary boom until it is fully elevated.
1 restricted maximum platform capacity
2 unrestricted maximum platform capacity
4 Extend the primary boom until it is fully
extended.
5 Lower the primary boom until it stops.
Result: The boom will automatically stop after
10 degrees.
Result: The primary boom does not stop after
10 degrees. Check limit switches LST3O and
LST3S.
6 Turn the key switch to the off position and
push in the red Emergency Stop button to the
off position at the ground controls.
Note: The following step can be done using a
measuring tape or a digital protractor (Genie part
number 58377).
