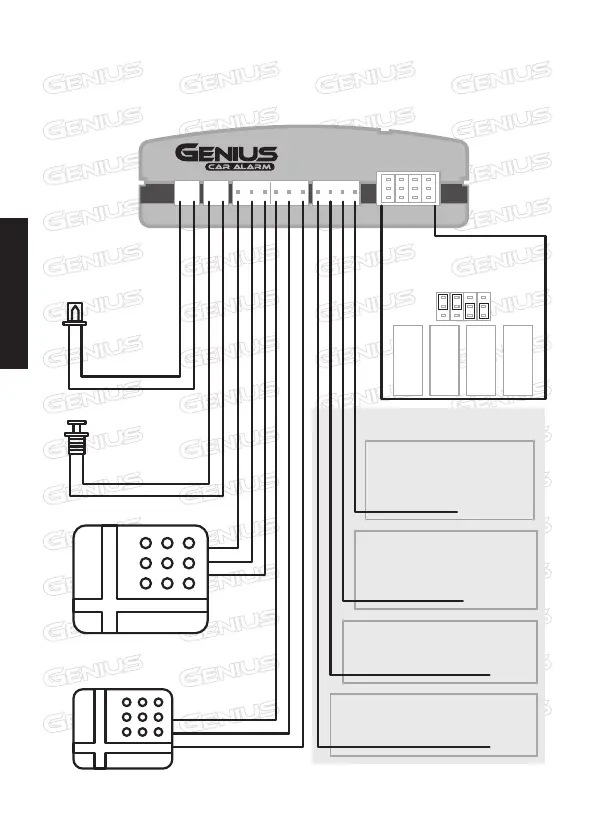

Genius TRF Series - Module Wiring Diagram; Jumpers and Block Connectors; Sensor Connections

ENGLISH
Genius Car Alarm
www.geniuscaralarm.com
38
1 “Green / White OEM”
INPUT (-/+) DEFAULT (+)
LOWER ENGINE
2 “Red / White OEM”
INPUT (-/+) DEFAULT (+)
CLIMBING THE ENGINE
3 “Yellow / Black OEM”
INPUT (-/+) DEFAULT (-)
LOWERING OF MICROSWITCH
THE MOTOR
4 “Blue / Black OEM”
INPUT (-/+) DEFAULT (-)
CLIMBING THE MICROSWITCH
THE MOTOR
LED
SW VALET
BLOCK CONNECTOR
JUMPERS
PROGRAMMING
J4
SWITCH
DOWN - / +
J3
SWITCH UP
- / +
J2
SIGNAL TO
GO UP - / +
J1
-
+
SIGNAL TO
GO DOWN - / +
4 3 2 1
SHOCK SENSOR
GENIUS
AUXILIARY SENSOR
(OPCIONAL)
G5504
ROJO AZUL
2
G5504 CF - TRF Series
Installation Diagram
Julio - 2016
