GENTRON G6000LPG - Air Cleaner Assembly

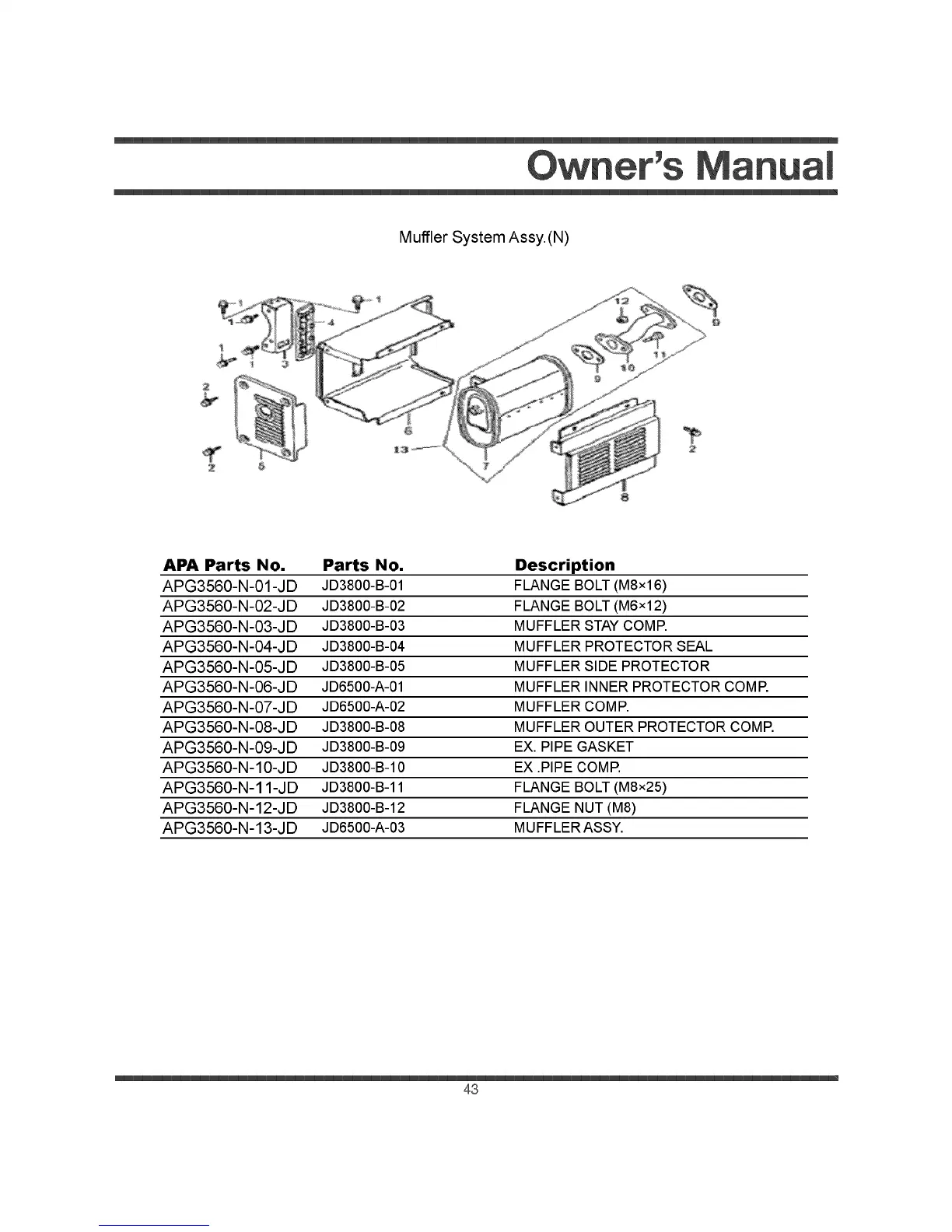

Muffler System Assy. (N)
@
APA Parts No. Parts No. Description
APG3560-N-01-JD JD3800-B-01 FLANGE BOLT (M8×16)
APG3560-N-02-JD JD3800-B-02 FLANGE BOLT (M6x12)
APG3560-N-03-JD JD3800-B-03 MUFFLER STAY COME
APG3560-N-04-JD JD3800-B-04 MUFFLER PROTECTOR SEAL
APG3560-N-05-JD JD3800-B-05 MUFFLER SIDE PROTECTOR
APG3560-N-06-JD JD6500-A-01 MUFFLER INNER PROTECTOR COME
APG3560-N-07-JD JD6500-A-02 MUFFLER COUP.
APG3560-N-08-JD JD3800-B-08 MUFFLER OUTER PROTECTOR COUP.
APG3560-N-09-JD JD3800-B-09 EX. PIPE GASKET
APG3560-N-10-JD JD3800-B-10 EX .PIPE COME
APG3560-N-11-JD JD3800-B-11 FLANGE BOLT (M8x25)
APG3560-N-12-JD JD3800-B-12 FLANGE NUT (IV18)
APG3560-N-13-JD JD6500-A-03 MUFFLERASSY.
43
