Chapter Five Debugging Method of Power tiller
1、Debugging method of mesh of bevel gear
When the abnormal transmission of mesh of bevel gear
of sound is confirmed, stop the machine and check as
stipulated below:

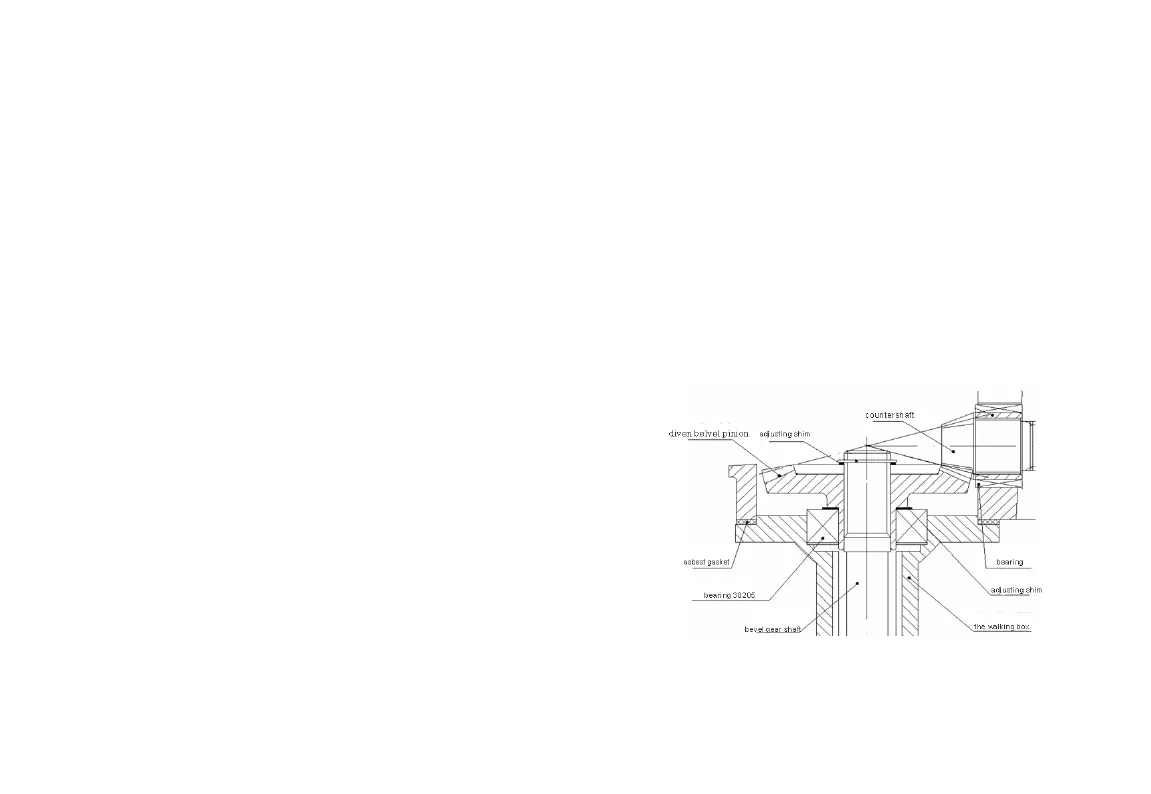

1. Clearance adjustment of mesh of angel gear in gear-box
( See Figure 10)
① When lateral clearance of mesh of the gear
△＜0.05mm,we should put some vulcanized paper
to enlarge the clearance between the gear-box and
the traveling box.
② When lateral clearance of mesh of the gear
△＞0.3mm,we should reduce the clearance to
0.05-0.10 mm between the bearings and gear Ⅱshaft
2. Clearance adjustment of mesh of the gear in the
running case.(See Figure 11)
When lateral clearance of mesh of the gear
△＜0.05mm,we should increase adjustment padⅠ
by 0.2-0.3mm to enlarge the clearance, and change
vulcanized paper boardⅡ and adjustment pad.
