Vandal Proof IP Dome (Part II)
13

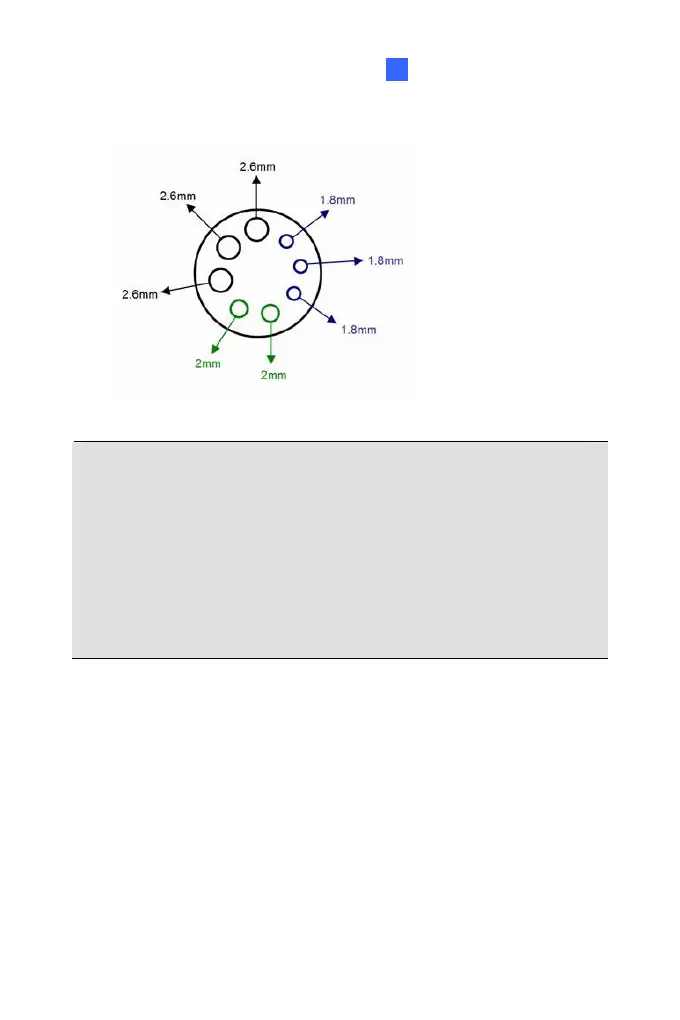

2.6 mm: Audio, BNC
2 mm: DC12V / AC24V
1.8 mm: DIDO
IMPORTANT:
1. Use the supplied ruler and leave about 10 cm of power and I/O wires
between their connectors and the cable seal; leave at least 11 cm of
audio/TV-out wires between their connectors and the cable seal.
2. The plugs are used to prevent water from entering the camera
housing. Keep the unused holes plugged and save the removed
plugs for future use.
3. Only thread the wires through their designated holes on the conduit
connector to make sure the wires are properly sealed.
