Germfree LFGI-4USP - Control Modes and Settings

(863) 248-2800 www.sensocon.com 12
Installation and Operation
Manual
Series A3 & A4

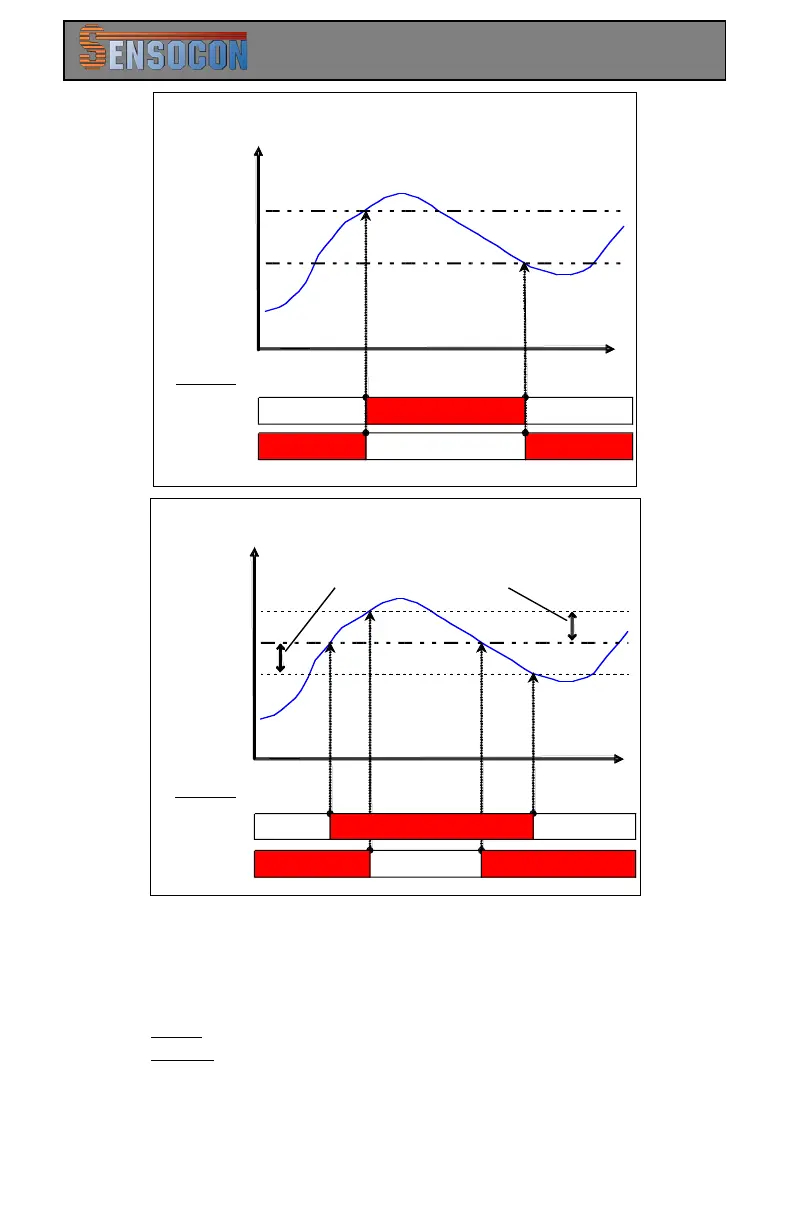

HiLo Operation
Time
Pressure
Set Point Hi
Set Point Lo
OFF
ON
ON
OFF
OFF
ON
Relay Action
Direct Acting
Reverse Acting
Setpoint DB Operation
Time
Pressure
Set Point
OFF
OFF
OFF
ON
ON
ON
Relay Action
Direct Acting
Reverse Acting
DB direct acting
DB reverse acting
 Actuation (1 act & 2 act) – The actuation parameter determines whether the
relays will react to increasing or decreasing pressure. This parameter also
affects the status of the LED indicators on the front of the gauge. The above
graphs illustrate the differences.
 Direct – The relays turn on with increasing pressure
 Reverse – The relays turn on with decreasing pressure
