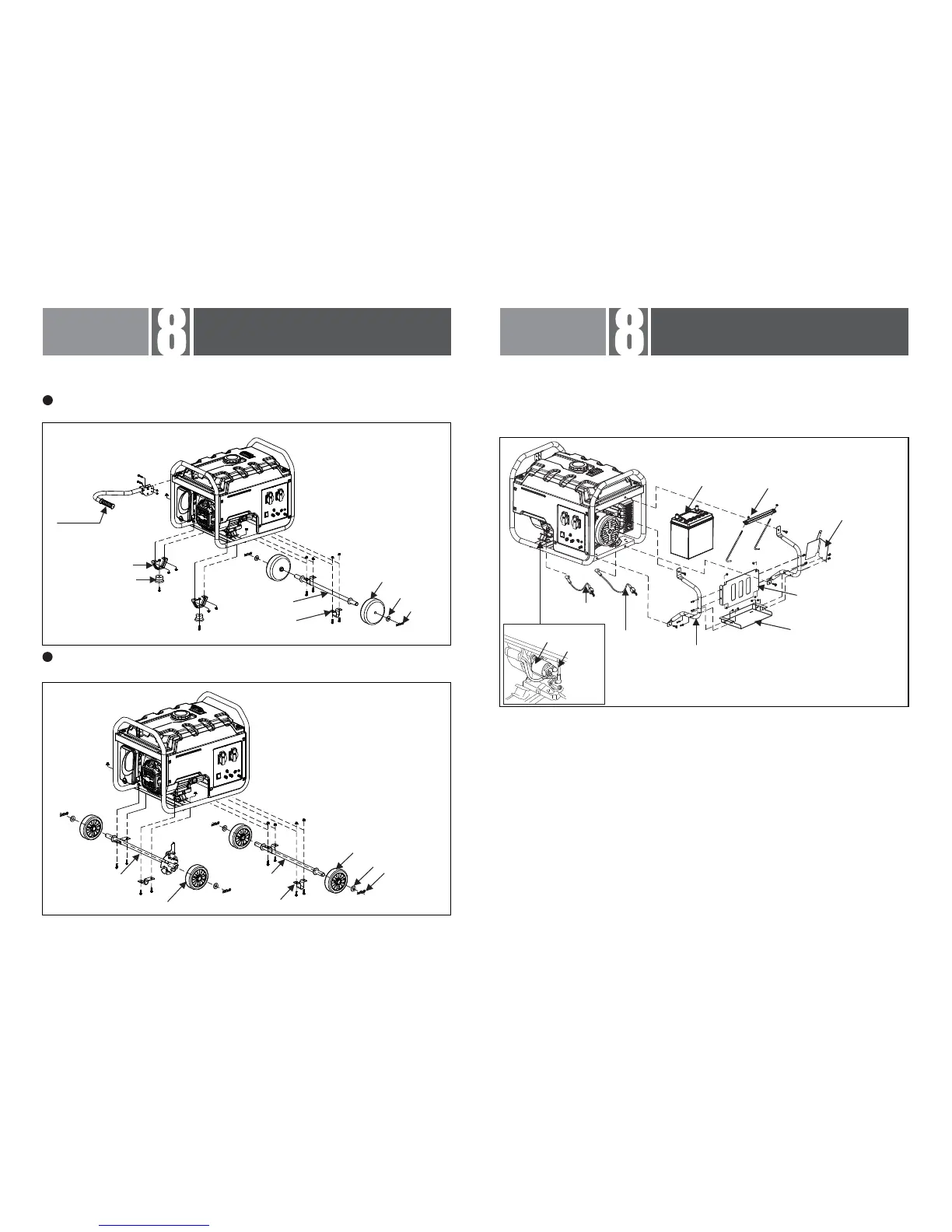

Portable Gasoline Generator Operating Instructions
Accessories Installation
Two-wheel long axle (applicable to generator units of
series)P3000 / P3000W
Four-wheel long axle (applicable to generator units of
P3000 / P3000W / series)
P6500 / P6500T / P6500W
Cotter
pin
Washer
Handrail
Vibration reduction
bracket
Vibration reduction
rubber pad
Axle
Wheel
Axle clamp
Wheel
Cotter pin
Washer
Axle clamp
Short axle
Long axle
Brake dise
Portable Gasoline Generator Operating Instructions
Accessories Installation
Operating steps and installation instructions:
Some of the units which are of the electrical starting type need to be
equipped with external storage battery bracket Please conduct the
installation according to the following drawing
,,
.
.
1 Install the positive terminal and negative terminal onto the generator unit
as specified in the drawing
2 Install the storage battery bracket onto the bracket connection tube
3 Install the storage battery shield onto the bracket connection tube
4 Install the assembled bracket onto the unit
5 Put the storage battery into the bracket
6 Hook the hook bolt to the hole of the bracket and install it onto the
storage battery clamp
7 Tighten the bolt and install the storage battery onto the bracket
8 Connect the storage battery wires and connect the negative one first
The connected terminals may be different as the models of the storage
batteries are different Take material object as
9 Some storage batteries need to be filled with electrolyte before
installation Please read the specification of the storage battery carefully
.
.
.
.
.
,
.
.
.
..
..
Positive
terminal
Negative
terminal
Bracket
connection tube
Storage battery shield
Storage battery bracket
Storage battery clamp
Storage battery
Storage battery shield
Starter
Solenoid
Starter Cable
(positive)
