GEZE ECdrive H User Manual

ECdrive H
11
Installation

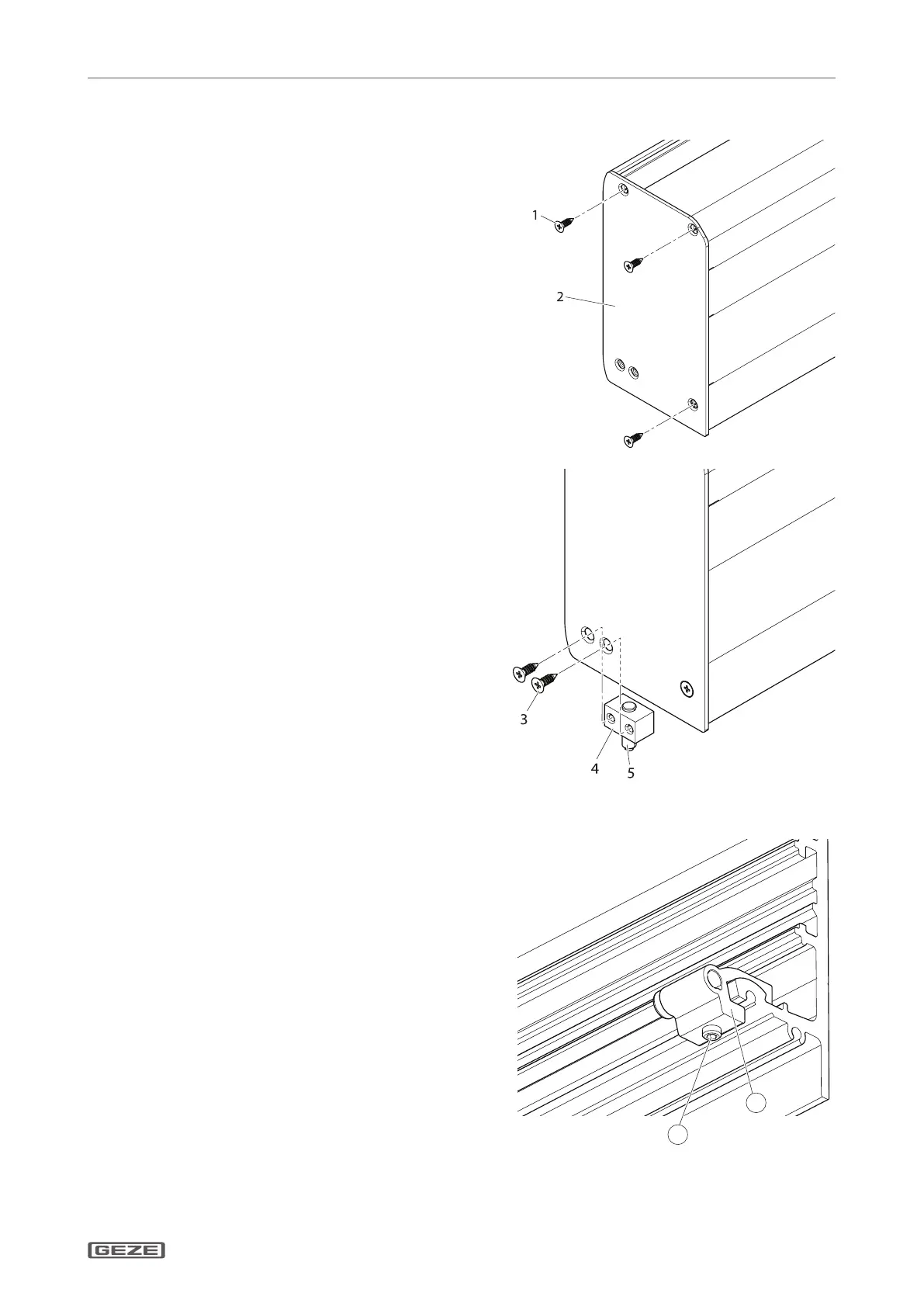

6.2.2 Installing side plates
X
Screw the side plates (2) to the side of the run-
ning rail with 4.8 × 13 countersunk tapping
screws (1).
X
Screw the retaining block (4) to the side plates (2)
on the inside with 4.8 × 13 countersunk tapping
screws (3).
X
Screw the stud screw (5) completely into the
retaining blocks (4) from below.
6.2.3 Installing stop buers
X
Push the stop buers (2) onto the running rail
from the left and right and pre-position them.
X
Slightly tighten threaded rod with hexagon
head(1).
The exact position of the stop buers is specied
during door leaf installation.


