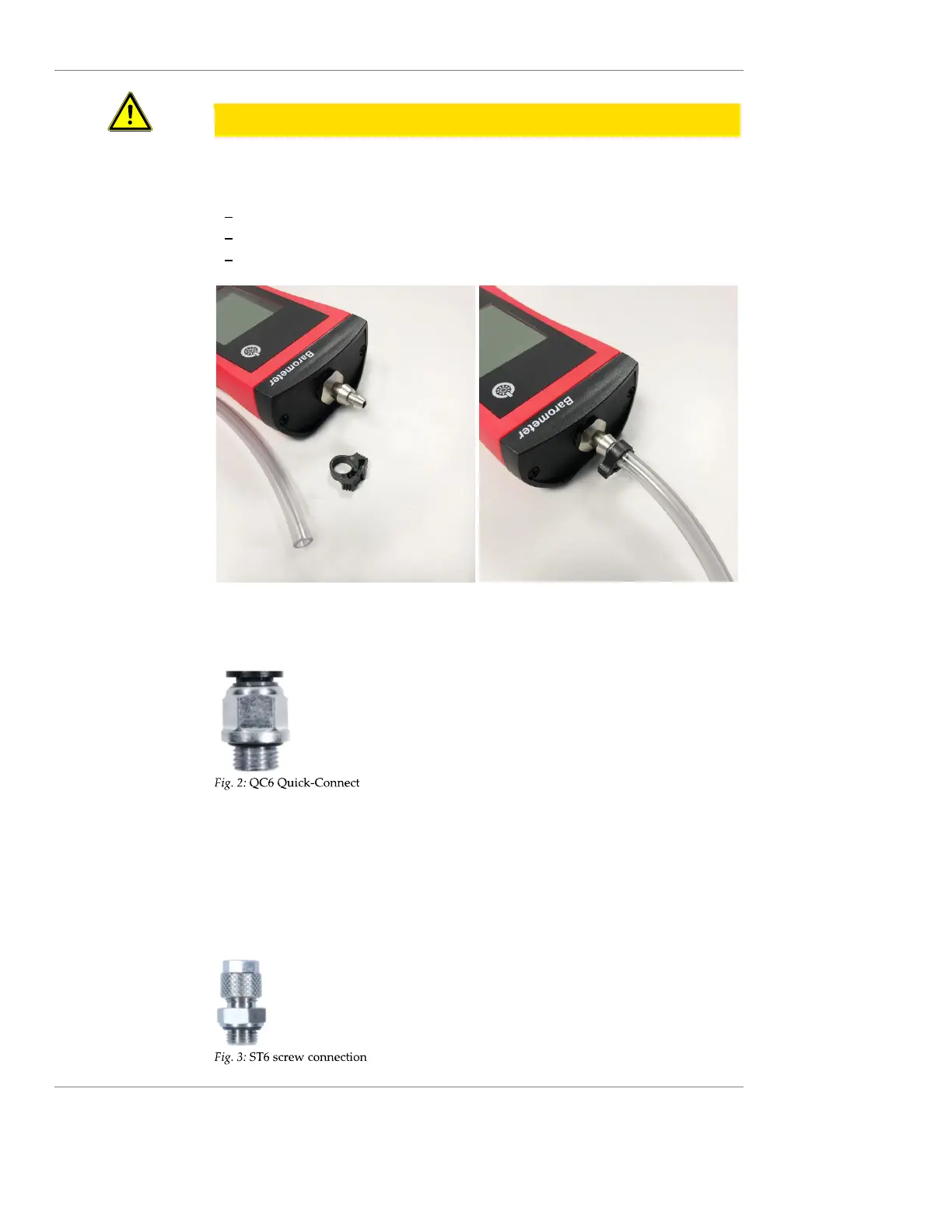

CAUTION
Air pressure!
With higher pressures greater than 1 bar, the hoses must be secured to prevent unin-
tended loosening. Suitable GDZ hose clamps are used for this purpose.
6x1 mm PVC GDZ-01. Up to 5 bar rel., vacuum-suitable!
6x1 mm PE GDZ-02. Up to 10 bar rel., vacuum-suitable!
6x1 mm PUR GDZ-03. Up to 9 bar rel., vacuum-suitable!
6.5 QC6 operation
Quick-Connect for Ø 6 mm hoses.
The practical quick-change connection is only suitable for plastic hoses with 6 mm
outer diameter. The hose end must be clean and undamaged for connection. It is fit by
simply pushing it in until the mechanical stop is reached. It is disconnected by simulta-
neously pressing the ring on the upper end of the connection and pulling the hose.
6.6 ST6 operation
Screw connection for 6 x 1 mm (Ø 4 mm inside) plastic hoses.

GHM GREISINGER G 1114 Specifications

General

Brand	GHM
Model	GREISINGER G 1114
Category	Measuring Instruments
Language	English
