GIGA-BYTE TECHNOLOGY GA-X99-Phoenix SLI User Manual

BIOS Setup
- 45 -

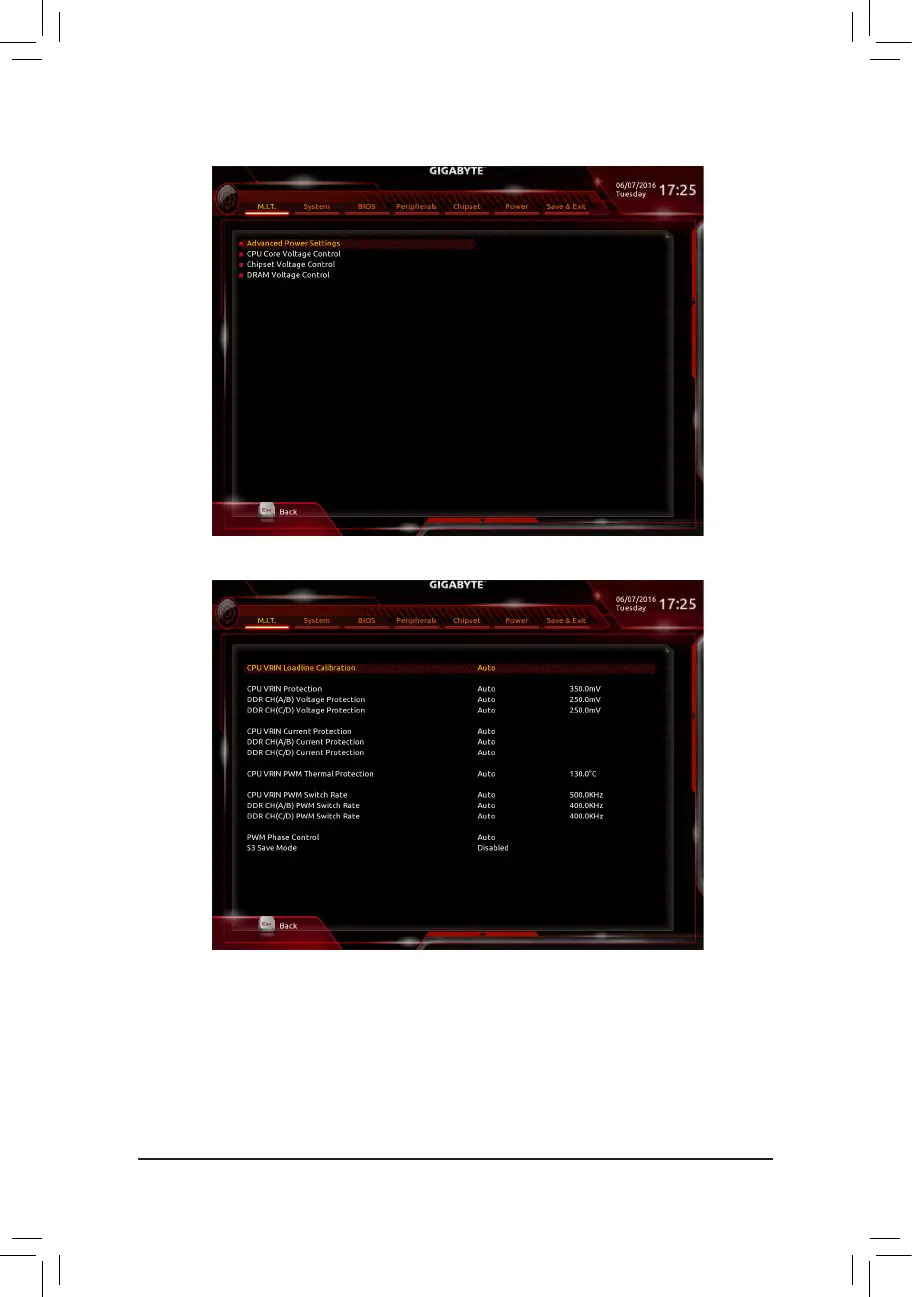

` Advanced Voltage Settings
` Advanced Power Settings
& CPU VRIN Loadline Calibration
 AllowsyoutosettheLoad-LineCalibrationlevelfortheCPUVRIN.Thelevelsare(fromhighesttolowest):
Extreme, Turbo, High, Medium, Low, and Standard. Selecting a higher level keeps the Vcore more consistent
with what is set in BIOS under heavy load. AutoletstheBIOSautomaticallycongurethissettingandsets
thevoltagefollowingIntel'sspecications.(Default:Auto)
& CPU VRIN Protection
 Allowsyoutosettheover-currentprotectionlevelfortheCPUVRINvoltage.Theadjustablerangeisfrom
150.0mV to 400.0mV. AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)
