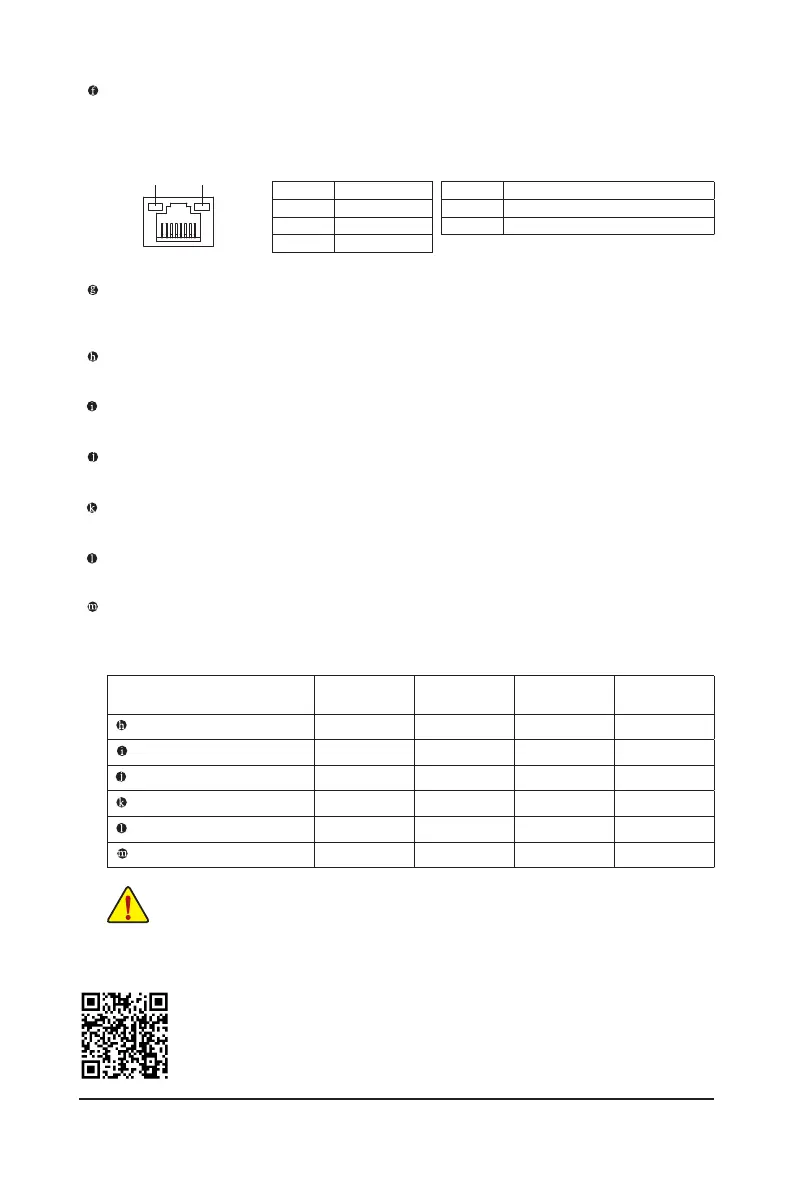

Page #11 background imageLoading...
Page #11 background image
When removing the cable connected to a back panel connector, rst remove the cable from
your device and then remove it from the motherboard.
When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
Audio Jack Congurations:
Jack
Headphone/
2-channel
4-channel 5.1-channel 7.1-channel
Center/Subwoofer Speaker Out
a a
Rear Speaker Out
a a a
Side Speaker Out
a
Line In
Line Out/Front Speaker Out
a a a a
Mic In
Please visit GIGABYTE's website for details on conguring the audio software.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Activity LEDSpeed LED
LAN Port
Activity LED:Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
USB 3.2 Gen 2 Type-A Port (Red)
The USB 3.2 Gen 2 Type-A port supports the USB 3.2 Gen 2 specication and is compatible to the USB
3.2 Gen 1 and USB 2.0 specication. Use this port for USB devices.
Center/Subwoofer Speaker Out (Orange)
Use this audio jack to connect center/subwoofer speakers.
Rear Speaker Out (Black)
Use this audio jack to connect rear speakers.
Side Speaker Out (Gray)
Use this audio jack to connect side speakers.
Line In (Blue)
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out/Front Speaker Out (Green)
The line out jack.
Mic In (Pink)
The Mic in jack.
- 11 -

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte B450M AORUS ELITE and is the answer not in the manual?

Gigabyte B450M AORUS ELITE Specifications

General IconGeneral
Processor socketSocket AM4
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 5 5th Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Component forPC
Motherboard chipsetAMD B450
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64, Windows 7 x64
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds2133, 2400, 2667, 2933, 3200, 3466, 3600 MHz
Wi-FiNo
Ethernet interface typeGigabit Ethernet
PCI Express x1 slots1
PCI Express x16 slots2
Parallel processing technology support2-Way CrossFireX, Quad-GPU CrossFireX
RAID levels0, 1, 10
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of SATA III connectors6
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size128 Mbit
System Management BIOS (SMBIOS) version2.7
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Weight and Dimensions IconWeight and Dimensions
Width244 mm
