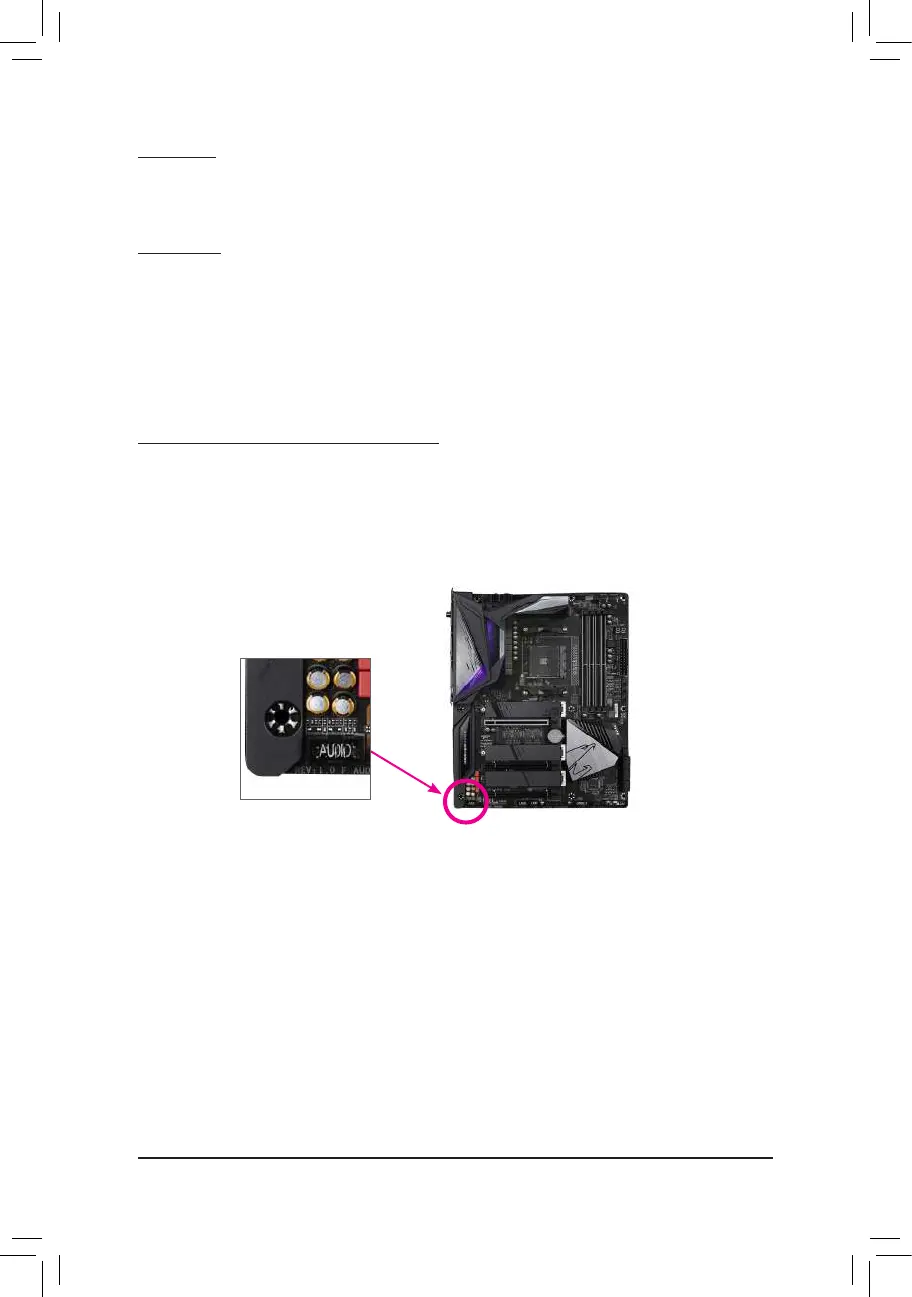

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:

Gigabyte B550 AORUS ELITE AX V2 Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 3rd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Maximum internal memory supported by processor	128 GB
Audio chip	Realtek ALC1200
Component for	PC
Product color	Black
Motherboard chipset	AMD B550
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4733 MHz
Supported memory clock speed (max)	4733 MHz
Supported memory module capacities	8GB, 16GB, 32GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
DirectX version	12.0
Maximum resolution	5120 x 2880 pixels
Parallel processing technology support	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
PCI Express x16 slots	2
Number of SATA II connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Weight	1120 g
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Warranty period	3 year(s)
Package depth	270 mm
Package width	335 mm
Package height	80 mm
Package weight	1887.5 g
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	35 mm
