Gigabyte B660M GAMING X AX User Manual

- 5 -

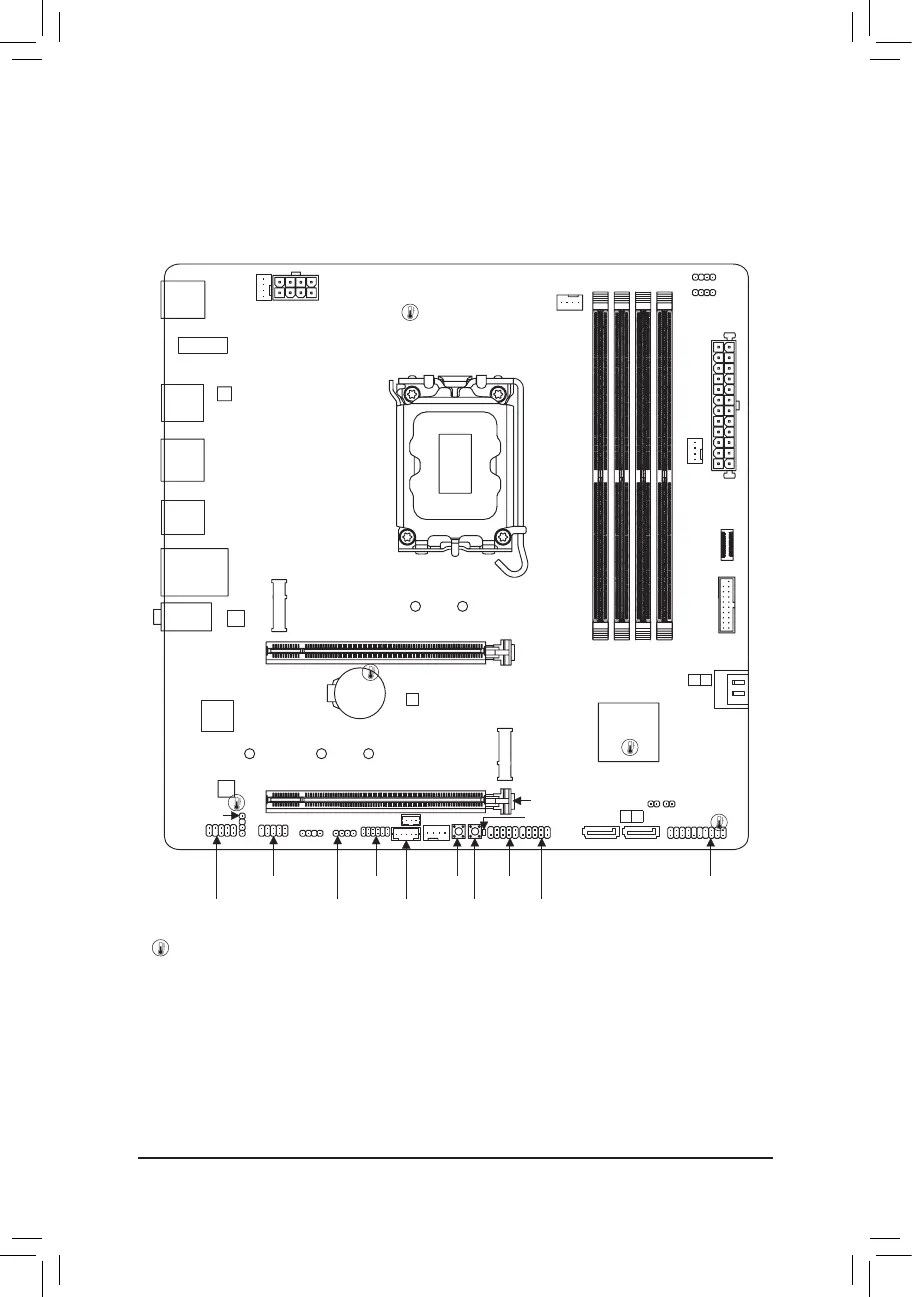

Temperature sensor
l Only for B660M G X AX DDR4.
R_USB20_1
CPU_FAN
SYS_FAN1
ATX
B660M G X AX DDR4 B660M GAMING X DDR4
F_AUDIO
SPDIF_O
AUDIO
BAT
ATX_12V_2X4
CODEC
RST
U32_LAN
PCIEX16
iTE
®
Super I/O
2.5 GbE LAN
LED_C1 F_USB1
SYS_FAN3
SPI_TPM F_PANEL
SATA3
7 6
M2_WIFIl
80
60
60
80
M_BIOS
QFLASH_PLUS
RST_SW
F_U32C
U32_USB20
M2P_SB
M2A_CPU
DDR4_A2 DDR4_A1 DDR4_B1 DDR4_B2
D_LED1
SYS_FAN2
F_USB2
QFLED
DP_HDMI20
COM
USB 2.0 Hub
LGA1700
Intel
®
B660
PCIEX4
THB_C1
THB_C2
SATA3 4 5
USB 2.0 Hub
D_LED2
LED_C2
F_U32
R_USB20_2
110
CLR_CMOS

Gigabyte B660M GAMING X AX Specifications

General

Form Factor	Micro ATX
Chipset	Intel B660
Socket	LGA 1700
Memory Support	DDR4
Memory Slots	4
Maximum Memory	128GB
Audio	Realtek ALC897
Storage Interface	2 x M.2, 4 x SATA 6Gb/s
Networking	Realtek 2.5GbE LAN
RGB Headers	2 x RGB
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
USB Ports	1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0
