- 13 -
B. Installing the CPU
Follow the steps below to correctly install the CPU into the motherboard CPU socket.
w
u
Do not force to engage the CPU socket locking lever when the CPU is not installed correctly
as this would damage the CPU and CPU socket.
v

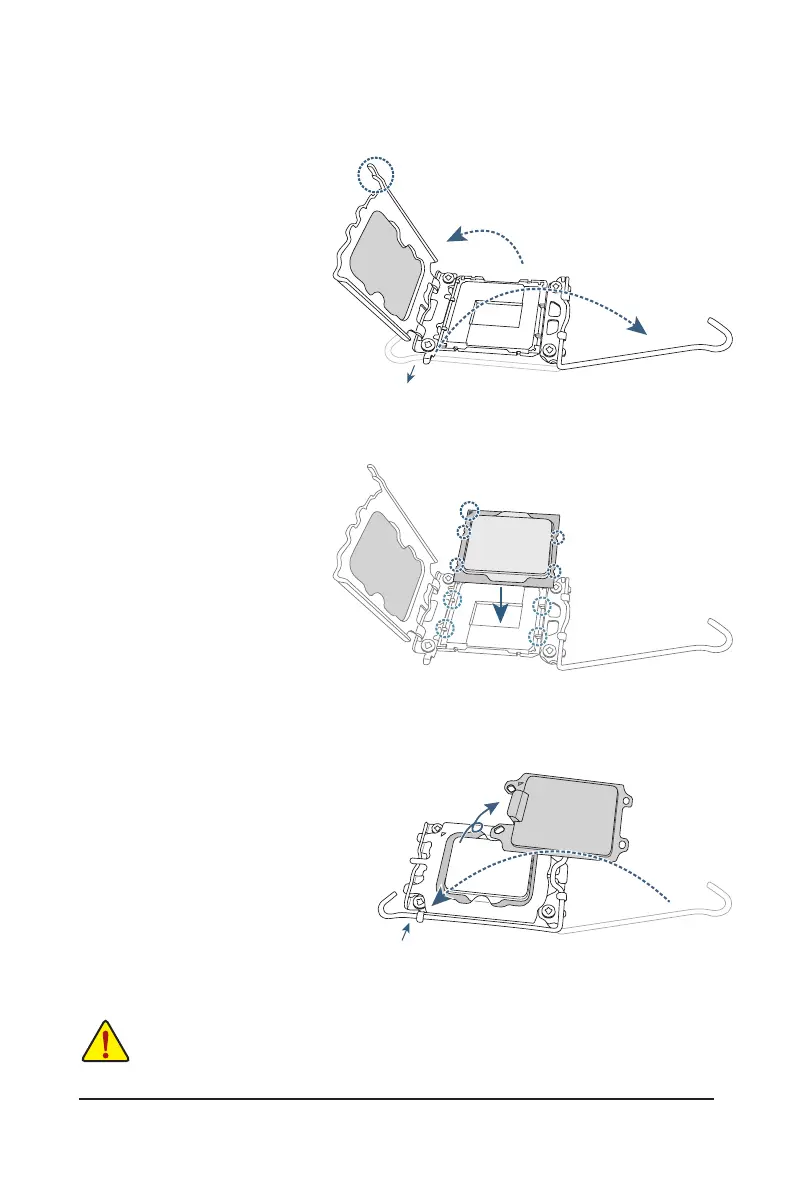

jGently press the CPU socket lever handle
down and away from the socket.
kCompletely lift up the CPU socket lock-
ing lever.
lUse the finger tab on the side of the
metal load plate to lift open the metal
load plate with the plastic protective cover
attached to it.
Hold the CPU with your ngers by the edges.
Align the CPU pin one marking (triangle) with
the pin one corner of the CPU socket (or you
may align the CPU notches with the socket
alignment keys) and gently insert the CPU
into position.
Make sure the CPU is properly installed and
then close the load plate. The plastic protec-
tive cover will pop off, just remove it. Secure
the lever under its retention tab to complete
the installation of the CPU.
* Always replace the plastic protective cover
when the CPU is not installed to protect the
CPU socket.
j
k
l
Finger Tab
Pin One
j
k
l

Gigabyte B760 DS3H DDR4 Specifications

General

Component for	PC
Motherboard chipset	Intel B760 Express
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Processor socket	LGA 1700
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Maximum internal memory supported by processor	128 GB
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Supported memory clock speed (max)	5333 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
USB 2.0 connectors	2
Serial port headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Headphone outputs	3
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x16 slots	5
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7
Cables included	SATA
Bundled software	Norton Internet Security
Warranty period	3 year(s)
Battery type	CR2032
Battery weight	3 g
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Country of origin	China
Quantity per shipping (inner) case	1 pc(s)
Package depth	270 mm
Package width	335 mm
Package height	80 mm
Package weight	1311 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	35 mm
