Gigabyte B760M D2HX SI DDR4 User Manual

- 21 -
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
For how to turn on/off the lights of the LED strip, please navigate to the "Unique Features" page
of GIGABYTE's website.

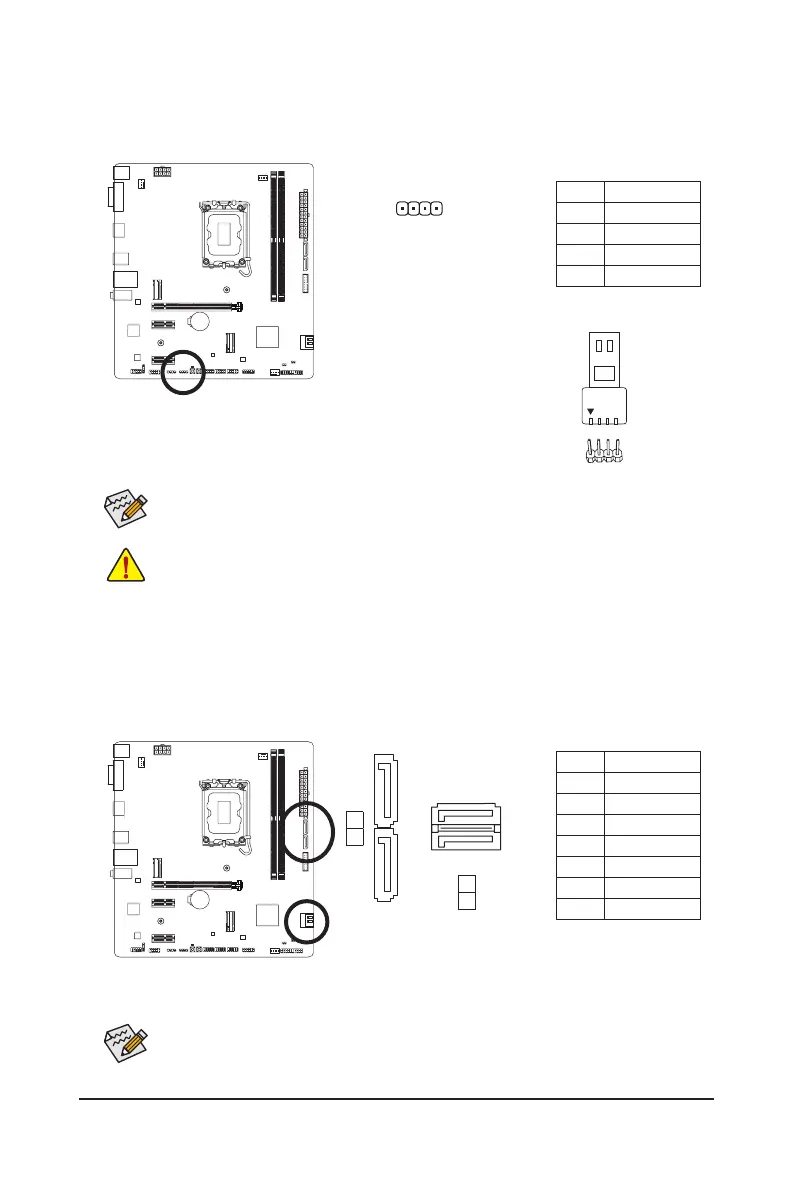

6) LED_C (RGB LED Strip Header)
The header can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power
rating of 2A (12V) and maximum length of 2m.
Connect your RGB LED strip to the header. The power pin (marked with a
triangle on the plug) of the LED strip must be connected to Pin 1 (12V) of
this header. Incorrect connection may lead to the damage of the LED strip.
Pin No. Denition
1 12V
2 G
3 R
4 B
1
DEBUG
PORT
G.QBOFM
7) SATA3 4/5/6/7 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel
®
Chipset supports RAID
0, RAID 1, RAID 5, and RAID 10. Please navigate to the "Conguring a RAID Set" page of GIGABYTE's
website for instructions on conguring a RAID array.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
To enable hot-plugging for the SATA ports, please navigate to the "BIOS Setup" page of GIGABYTE's
website and search for "SATA Conguration" for more information.
RGB
LED Strip
1
12V
SATA3
SATA3
4
5
7
6
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
7
1
1
1
7
DEBUG
PORT
G.QBOFM
7

Gigabyte B760M D2HX SI DDR4 Specifications

General

Form Factor	Micro ATX
Chipset	Intel B760
Memory Type	DDR4
Maximum Memory	64 GB
CPU Socket	LGA 1700
Audio	Realtek Audio Codec
Video Outputs	1 x HDMI, 1 x DisplayPort
Memory Speed	DDR4 5333(O.C.)
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek GbE LAN
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	2 x M.2 (1 x PCIe 4.0 x4, 1 x PCIe 3.0 x4)
USB Ports	4 x USB 3.2 Gen 1 (Rear), 2 x USB 2.0 (Rear)
