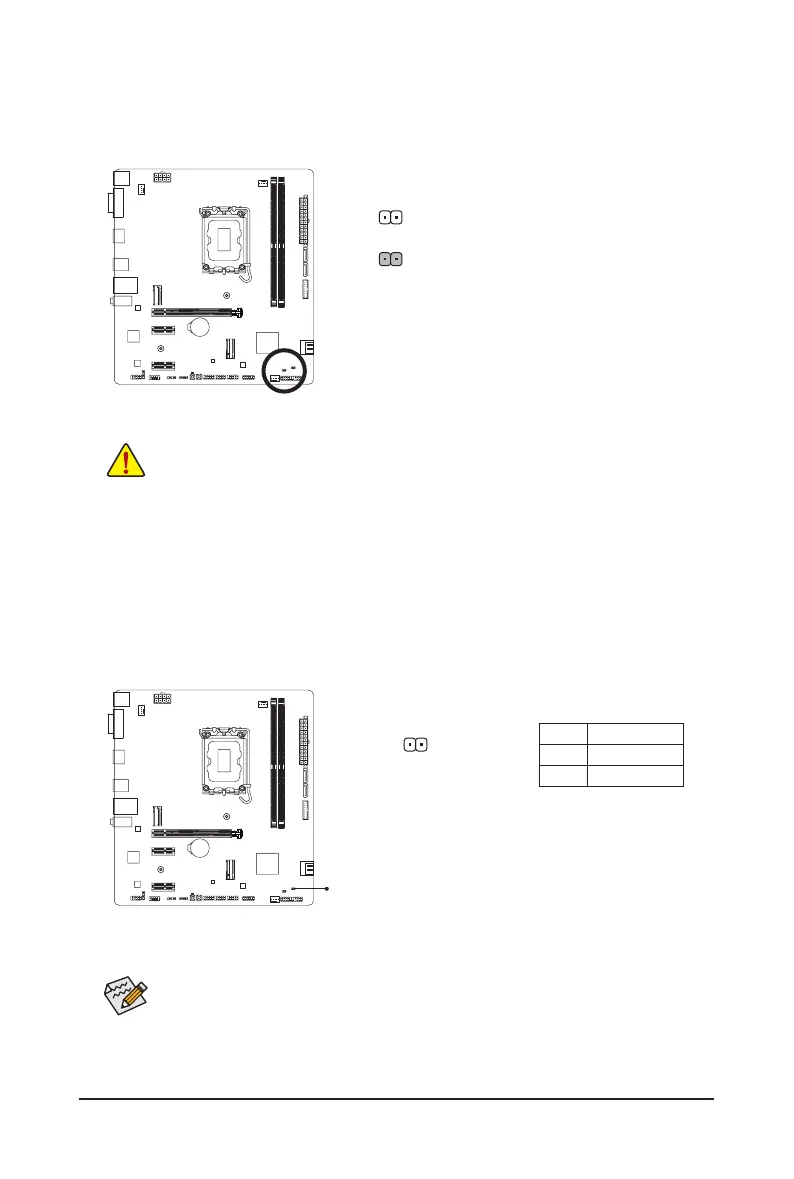

16) CLR_CMOS (Clear CMOS Jumper)
Use this jumper to clear the BIOS conguration and reset the CMOS values to factory defaults. To clear
the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.
• Always turn off your computer and unplug the power cord from the power outlet before clearing
the CMOS values.
• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or
manually congure the BIOS settings (please navigate to the "BIOS Setup" page of GIGABYTE's
website for more information).
Open: Normal
Short: Clear CMOS Values
17) RST (Reset Jumper)
The reset jumper can connect to the reset switch on the chassis front panel. Press the reset switch to
restart the computer if the computer freezes and fails to perform a normal restart.
The reset jumper provides you with several functions to use. To remap the button to perform different
tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST_SW
(MULTIKEY)" for more information.
RST
1
Pin No. Denition
1 Reset
2 GND

Gigabyte B760M D2HX SI DDR4 Specifications

General

Form Factor	Micro ATX
Chipset	Intel B760
Memory Type	DDR4
Maximum Memory	64 GB
CPU Socket	LGA 1700
Audio	Realtek Audio Codec
Video Outputs	1 x HDMI, 1 x DisplayPort
Memory Speed	DDR4 5333(O.C.)
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek GbE LAN
RAID Support	RAID 0, 1, 5, 10
M.2 Slots	2 x M.2 (1 x PCIe 4.0 x4, 1 x PCIe 3.0 x4)
USB Ports	4 x USB 3.2 Gen 1 (Rear), 2 x USB 2.0 (Rear)
