Gigabyte Z690 AERO G DDR4 User Manual

- 6 -

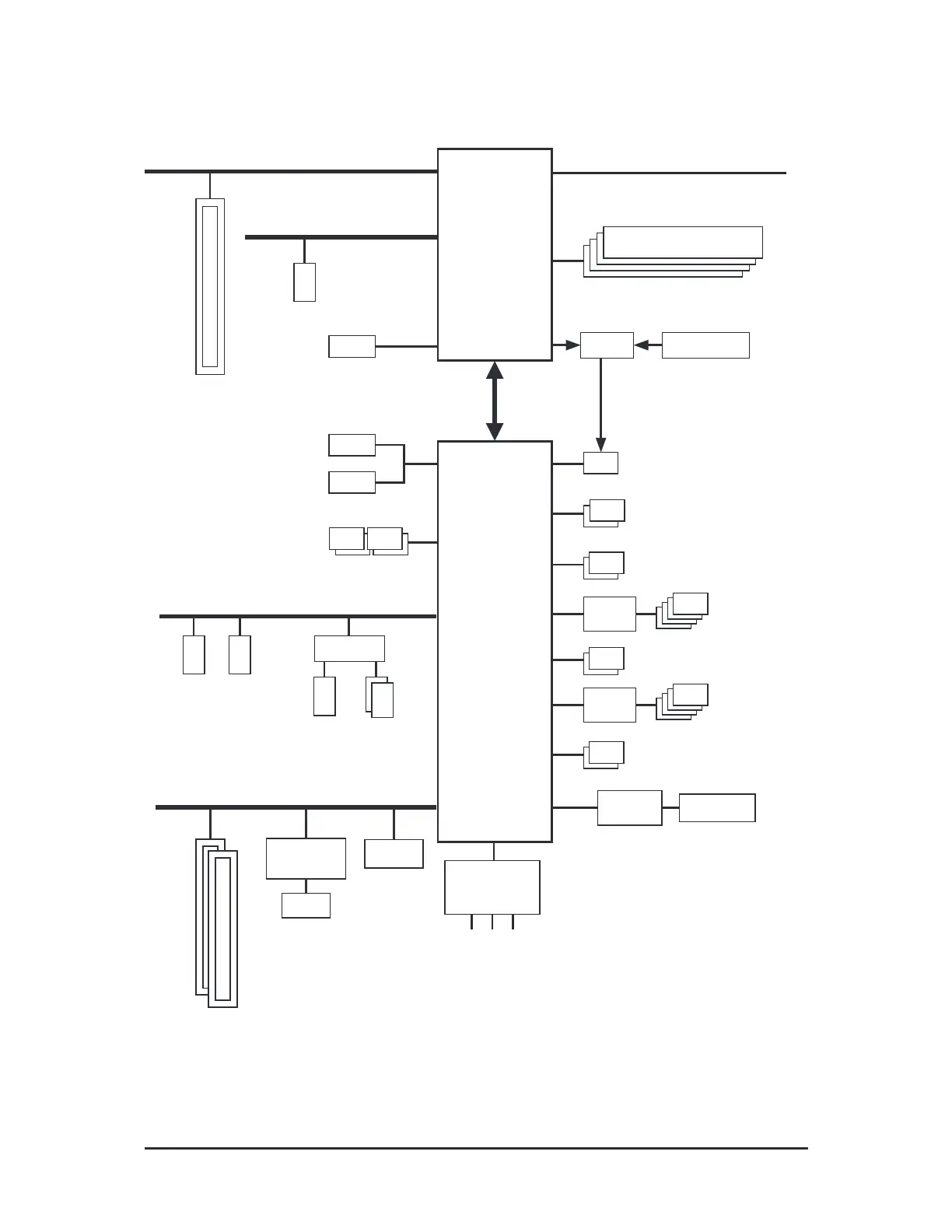

1-2 Motherboard Block Diagram
LGA1700 CPU
DMI 4.0
4 USB 2.0/1.1
4 USB 3.2 Gen 1
2 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
2 USB 3.2 Gen 2 Type-A
2 USB 3.2 Gen 1
2 USB 2.0/1.1
Intel
®
Z690
USB 3.2
Gen 1 Hub
USB 2.0
Hub
PCI Express 5.0 Bus
PCI Express 4.0 Bus
1 PCI Express x16
1 M.2 Socket 3
(M2A_CPU)
x16
Line Out
Mic
S/PDIF Out
CODEC
SPI
Bus
PCI Express 3.0 Bus
x4
2 PCI Express x4
TPM
BIOS
eSPI
Bus
iTE
®
Super I/O
COM
DDI
1 USB Type-C
®
,
with USB 3.2 Gen 1 support
DisplayPort In
Switch
DDI
HDMI 1.4
LAN
RJ45
x1
Intel
®
2.5GbE LAN
x1
M.2 WIFI
4 SATA 6Gb/s
(SATA3 4~7)
1 M.2 Socket 3
(M2M_SB)
2 SATA 6Gb/s
(SATA3 2, 3)
PCI Express 4.0 Bus
2 M.2 Socket 3
(M2P_SB, M2Q_SB)
Switch
or
CPU CLK+/- (80~800 MT/s)
DDR5 5600
(Note)
/5200
(Note)
/4800/4400 MT/sj
DDR4 3200/3000/2933/2666/2400/2133 MT/sk
j Only for Z690 AERO G.
k Only for Z690 AERO G DDR4.
(Note) Actual support may vary by CPU.

Gigabyte Z690 AERO G DDR4 Specifications

General

HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i5, Intel Core i7, Intel Core i9
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA
USB 2.0 connectors	2
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel Z690
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x16 slots	3

Weight and Dimensions

Depth	244 mm
Width	305 mm
