GILBARCO VEEDER-ROOT Latitude LS-100 User Manual

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 5-13
Setting Parameters Latitude Operation
4 Press ENTER to see PPU CHANGE VIEW mode.

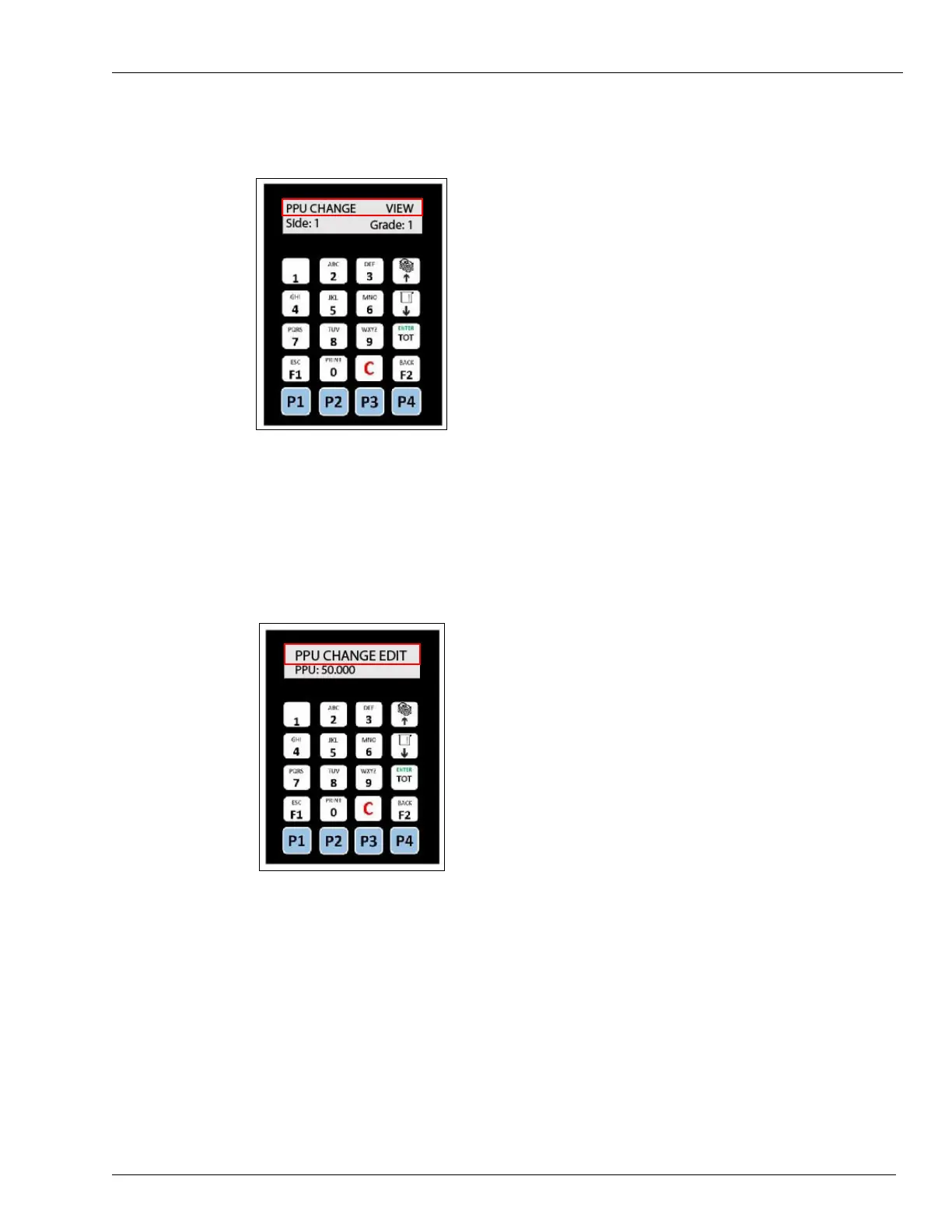

Figure 5-16: PPU CHANGE VIEW Mode
5 Select Side and press ENTER.
6 Select Grade and press ENTER. The user can now see the current PPU value.
7 Press ENTER to see PPU CHANGE EDIT mode.
Figure 5-17: PPU CHANGE EDIT Mode
8 After pressing the ENTER key, the current PPU value will start blinking. Enter the price using
keys 0 to 9 and press ENTER to see PPU CHANGE SET (see Figure 5-18 on page 5-14).

GILBARCO VEEDER-ROOT Latitude LS-100 Specifications

General

Brand	GILBARCO VEEDER-ROOT
Model	Latitude LS-100
Category	Petrol Station Equipment
Language	English
