gilles.tooling MUE2-D01 - Page 4

18
1 327 23 24
5
7
17 1281310201129922 21
19
62516
16
20
1514 26
28
22
4
2

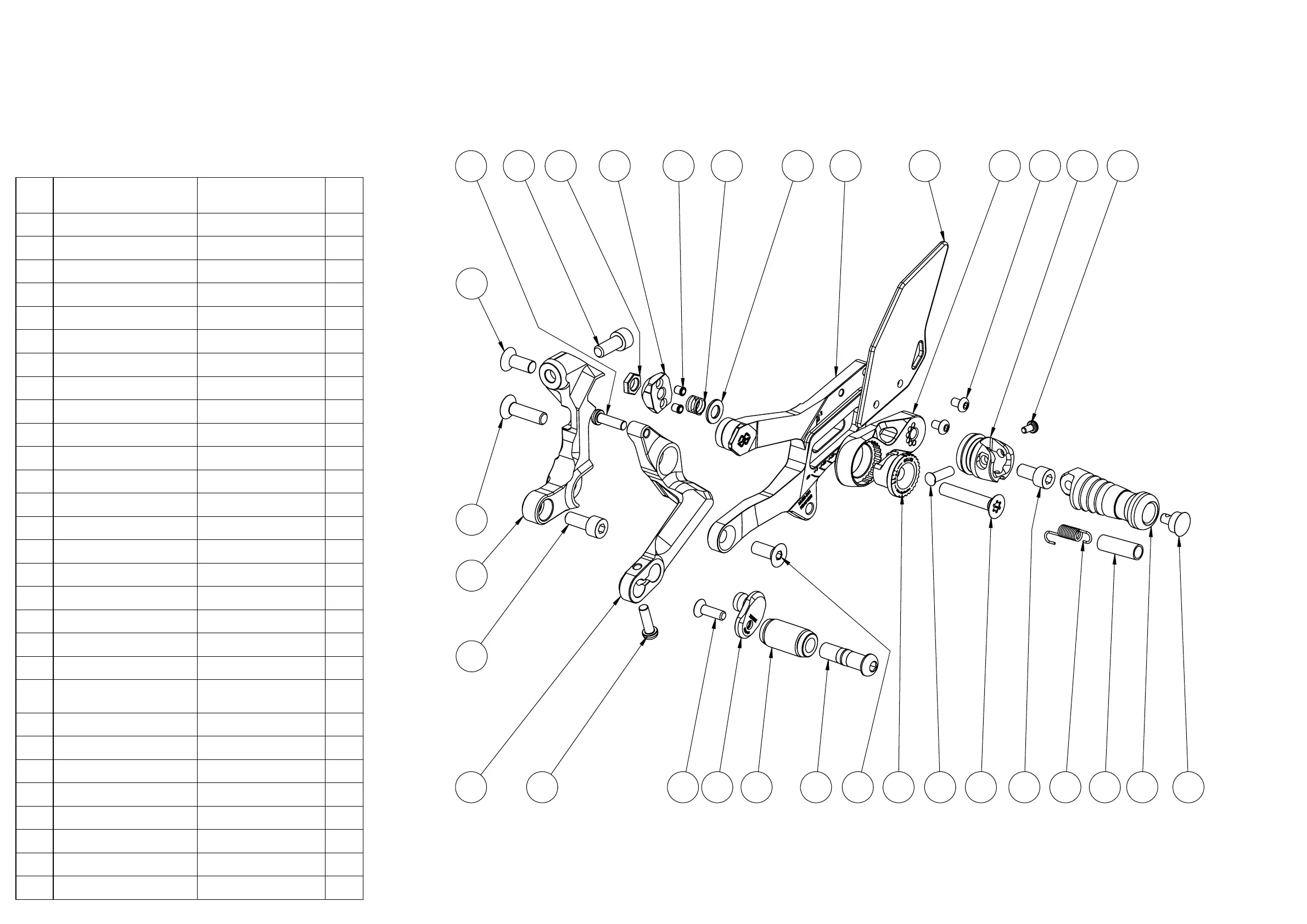

pos article no. description
qty.
[pcs.]
1 MUE2-GL-D01-B Left Base Plate Black 1
2
MUE2-HA-D01-L-GNL
Base Plate Holder Left
Grey NL
1
3
UV-06-GNL
Adjustment Plate
Grey NL
1
4
US-60-B Gear Lever Black 1
5
VST-04-L-R
Adjustment Nut Left
Red
1
6
SPN-03-B Nut Black 1
7
RG-810-B Footrest Joint Black 1
8
UF-24-B Footrest Black 1
9
UEX-01-B
Excenter Toe Piece
Black
1
10 RG-BO-01 Bolt 1
11 UTR03-IT-B
Gear Lever Toe Piece
Black
1
12 UF-ST-01-B Plug Black 1
13 SIF-19078 Pull Spring 1
14 FDS-5 Pressure piece 2
15 VD-117S Spring 1
16 M8x20-4762-VA Cylinder Bolt 2
17 M8x16-4762-VA Cylinder bolt 1
18 M8x45-14581-VA Countersunk Bolt 1
19 M8x30-10642-VA Countersunk bolt 1
20 M8x20-10642-VA Countersunk bolt 2
21 M6x20-10642-VA Countersunk Bolt 1
22 M6x20-7380-VA-TX-PRE10-1 Oval-Head Bolt 2
23 M5x8-7380-VA-PRE85 Oval-head bolt 2
24 M4x8-14583-VA-TX Oval-head bolt 1
25 EHP81D Nut 1
26 ULS-8,4-VA Washer 1
27 CAR-15-L Left Heelguard 1
28 SPC-02 Tube For Spring 1
29 UTR-24 Rubber Toe Piece 1
