PAGE 10
1) Hot air discharge Chute. CAUTION: This area is
hot to the touch when in operation.
2) Dry fuel, gas regulator for natural gas or LPG.
3) Muffler. CAUTION: Hot to the touch when in use.
4) Engine.
5) Two element air cleaner (Clean every 50 hours,
replace at 300 hours).
6) Spark plug (Replace every 300 hours of use).
7) Oil cooler.
8) Oil filter (Replace every 200 hours).
9) Dry fuel gas input (Always use flexible fuel line).

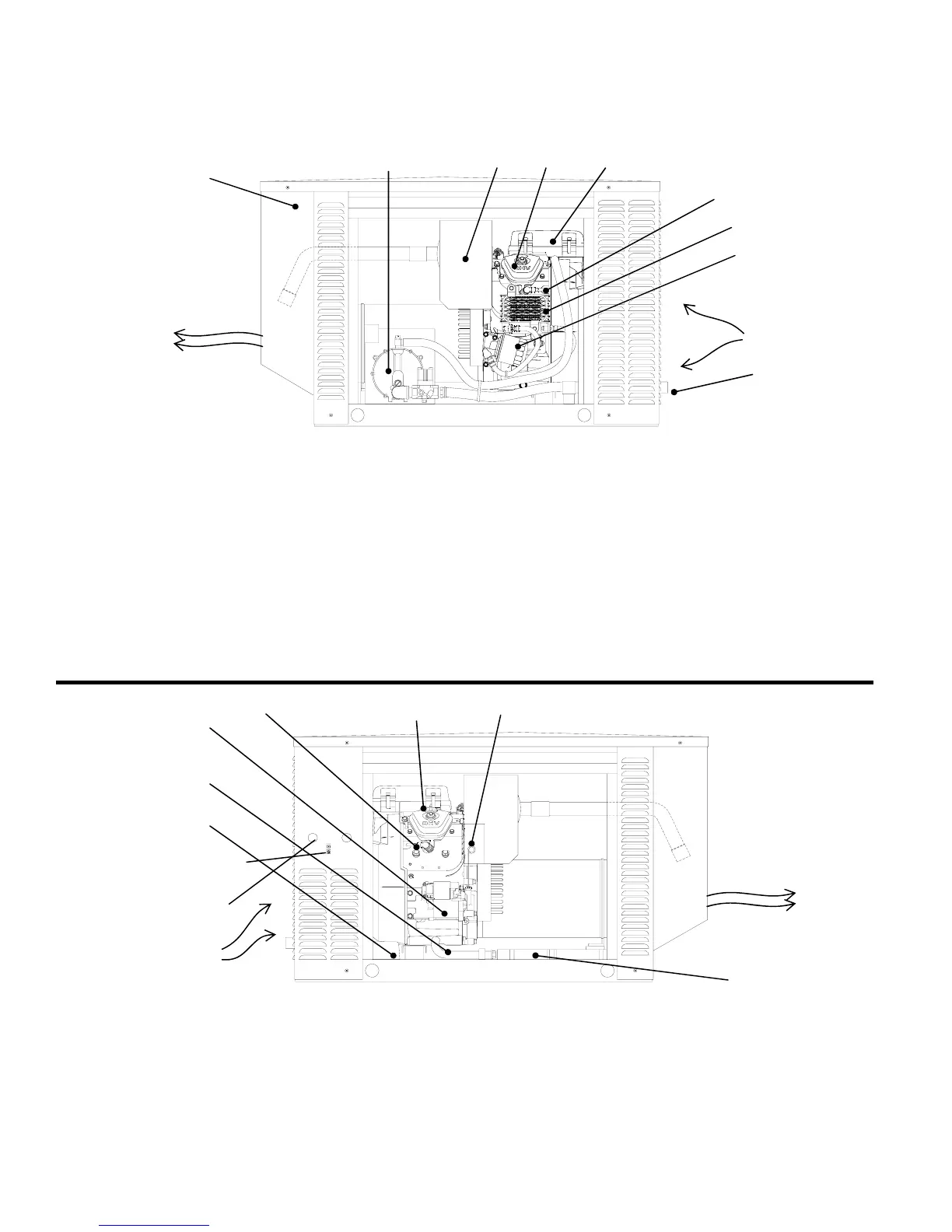

KNOW YOUR GILLETTE HOME GENERATOR
Compare the following illustrations and individual component locations, with your actual GILLETTE home gen-
erator system. This will help familiarize yourself with the entire generator set.
11) 12 VDC battery charger. Installer must connect
120 volt, 1 phase utility power to this charger.
12) Oil drain with flexible drain hose. NOTE: Change
oil after every 50 hours of use.
13) 12 VDC engine starter motor.
14) Spark plug (replace every 300 hours of use).
15) Oil fill.
16) Oil dipstick.
17) Battery tray (see page 16 for installation and cau-
tion use).
Generator End
Hot Air Plus Carbon Monoxide
Discharge
Control, Wiring
& Engine End
LEFT SIDE FACING ENGINE END WITH INSPECTION DOOR REMOVED
Cool Air Input
1)
2) 3) 4) 5)
6)
7)
8)
9)
16)
Engine End
Two Electrical Knockout
(Electrician)
Hot Muffler Area
Generator End
RIGHT SIDE FACING ENGINE END WITH INSPECTION DOOR REMOVED
11)
12)
13)
14)
15)
17)
Cool Air Input
Hot Air Plus Carbon
Monoxide Discharge
Ground Wire to Ground Stake
(Electrician)
