Appendix C-5
Technical Data Appendix C
Mechanics
Mechanics
Valve
Type: Three port, two position.
Angle between ports: 120°.
Valve drive: Stepper motor.
Rotation time: 0.5 Second.
Liquid contact materials: PEEK and ceramic.
Lifetime: 1 000 000 cycles.
Dead volume: 123 µL.
Maximum Pressure: 0.8 MPa.
Tee Junction
Type: Three port, no moving parts.
Diameter of channels: 1.5 mm.
Length of channels: 14 mm.
Angle between channels: 120°.
Liquid contact material: PEEK.
Dead volume: 51 µL.
Syringes
Piston drive: Stepper motor.
Piston displacement control: Coded disk.
Piston movement resolution: 1.6 µm.
Minimum piston travel time: 1.5 seconds for one
complete stroke.
Maximum syringe displacement: 60 mm ± 20 µm.
Minimum syringe speed: 60 mm in 10 hours.
Maximum syringe speed: 60 mm in 1.5s.

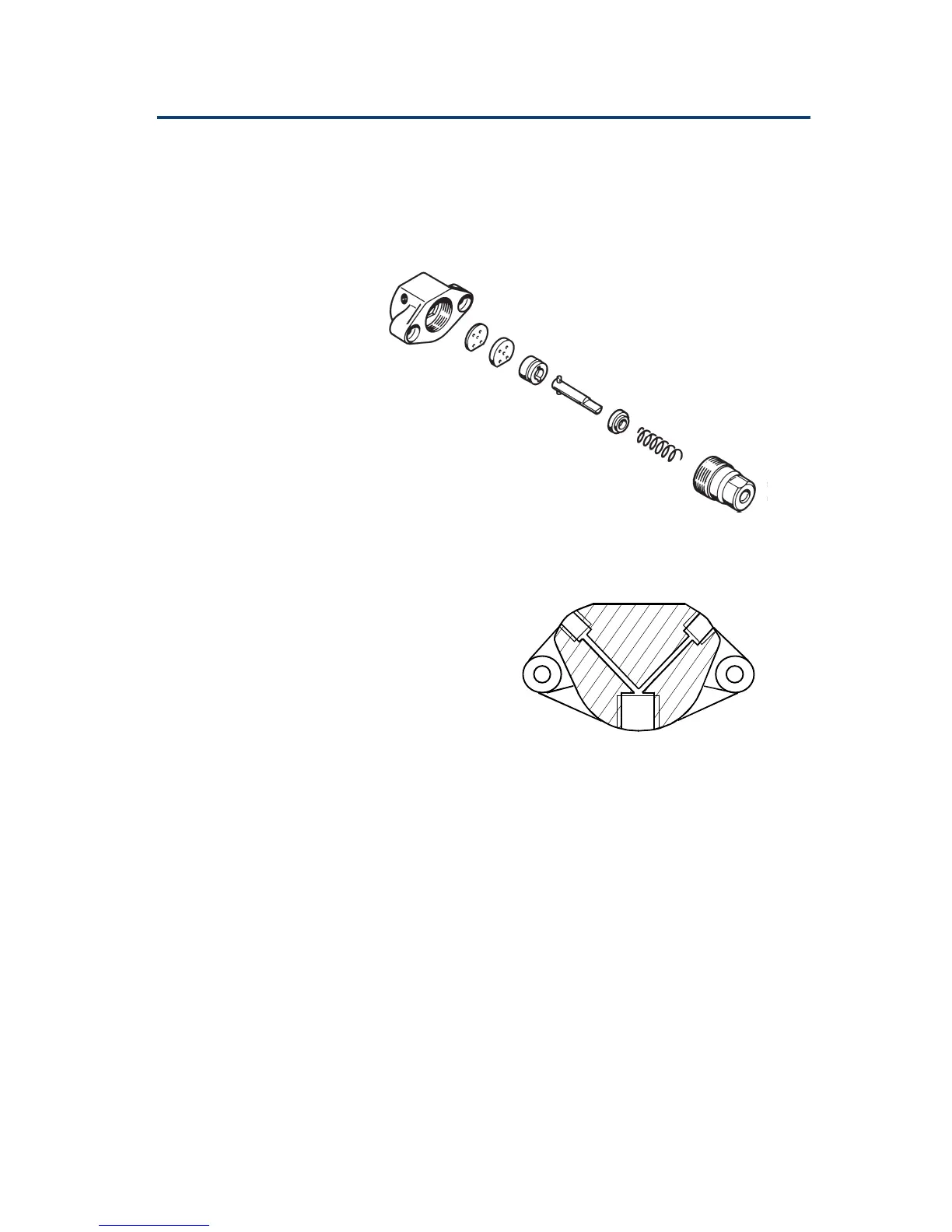

Cross section of Tee
