Description 2
Dual-syringe Model
Dual-syringe Model

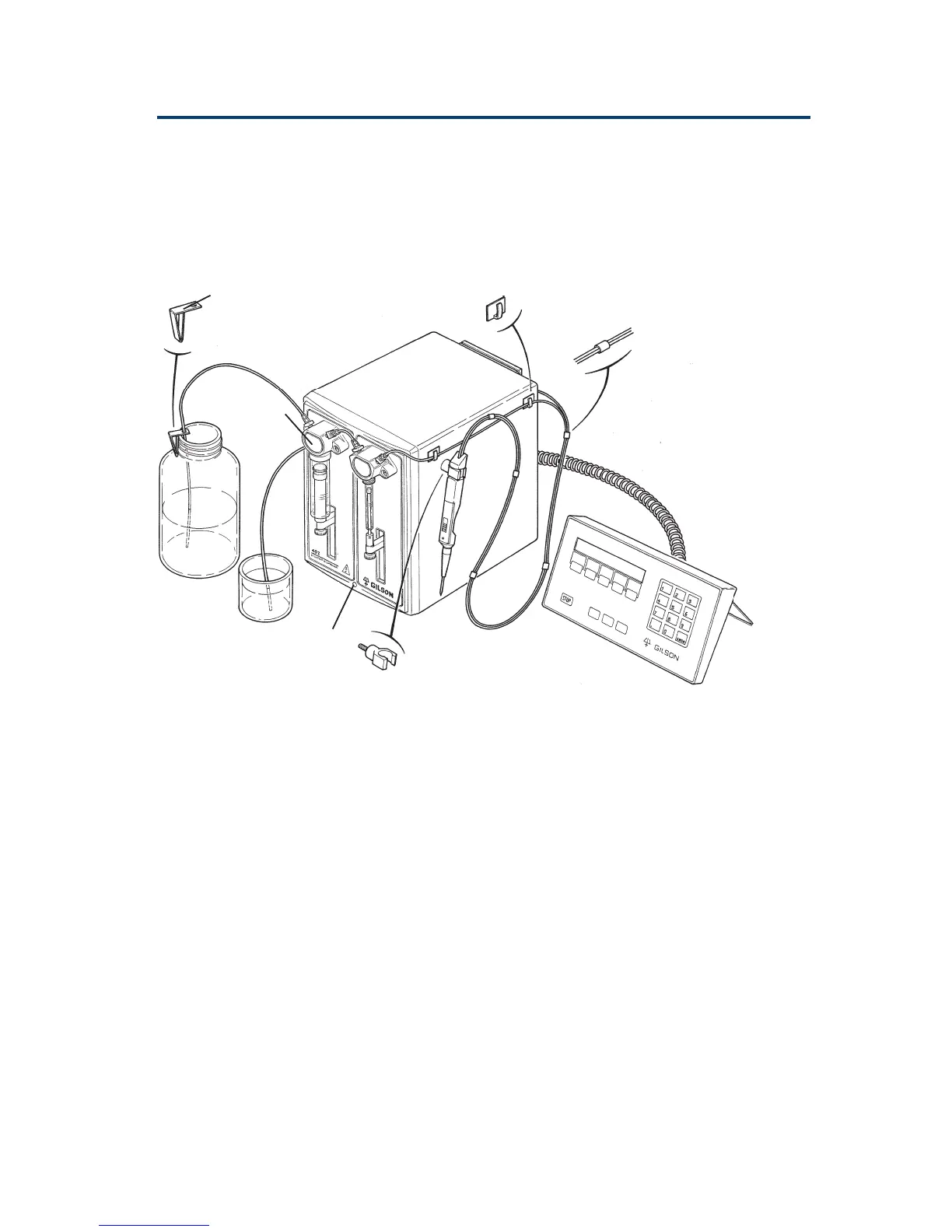

The Dual-syringe model is fitted with a Valve
module at the left and a Tee-junction module at the
right. The modules are linked by plastic tubing.
Bottle Clip for Tubing
Tubing Clip (Self-adhesive)
Cable Support
Clamp for Probe
Valve Module
Front Panel
The front panel holds the hydraulic components
and is fitted with an ON/OFF indicator.
The Valve module includes one motor to operate the
syringe and another motor to switch the valve. The
Tee-junction module has only one motor, to operate
the syringe.
The Dual-syringe model may be fitted with syringes
of different volumes. The left syringe is the large
volume syringe and is used to deliver a large volume
of liquid in a minimum time. The right syringe can
be used to transfer smaller volumes with high
reproducibility and accuracy (refer to Appendix C
for Technical Data). The benefits of this configuration
are a large dilution ratio with the best reproducibil-
ity and fast transfer times.
Rear Panel
This is the same for both models.
ON/OFF indicator
