② Check & Replace the VCI board PCB and Cable
1. Remove Front case.

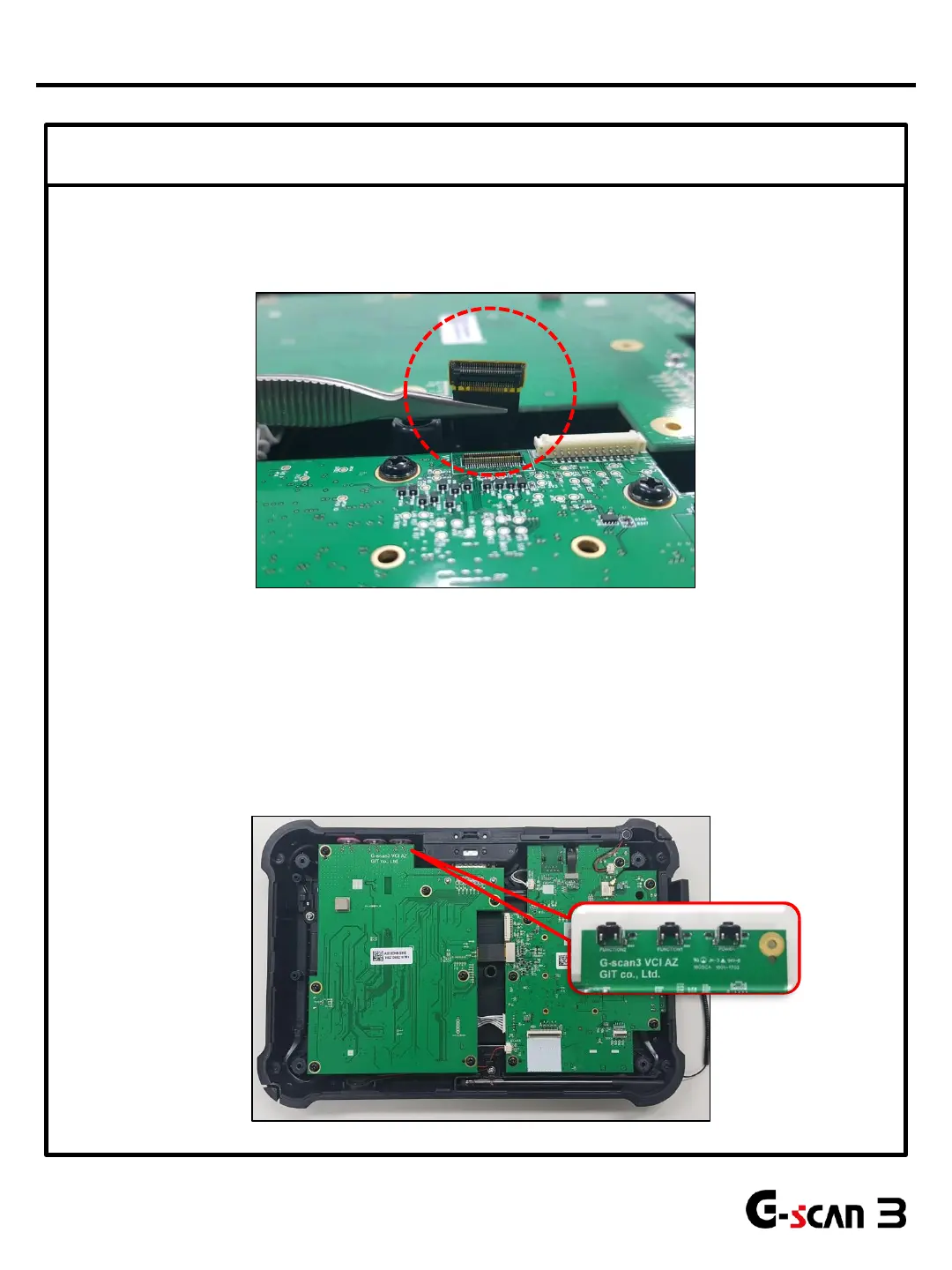

2. Check for firm connection of the keypad control board cable as shown above image.
 Remove and inspect connector. After inspection, re install the connector.
 Check if G-Scan3 is responding normally and if the same symptom appears,
replace the 24 cable.
40
VCI Board
Keypad Problems
