5

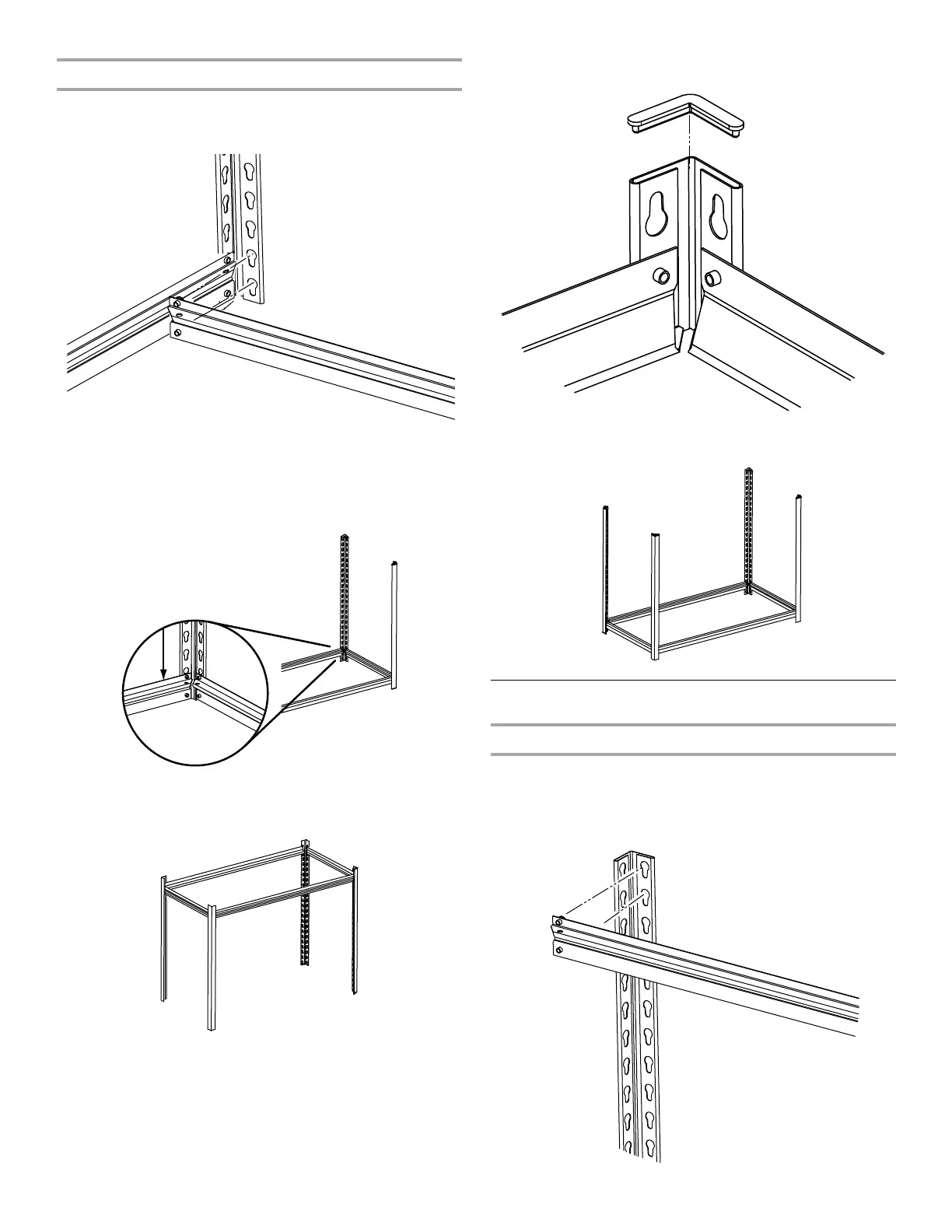

Attach 2 Long Z Beams
1. Insert the rivets of the long Z beam (P2) into the bottom keyhole
slots of the upright post (P1 for the 6-shelf unit; P5 for the 5-shelf
unit).
2. Insert the rivets on the other end of the long Z beam (P2) into the
bottom keyhole slots of the second upright post (P1 or P5).
3. Repeat steps 1 and 2 to attach the second long Z beam to the
other upright post.
4. Press the beam rivets to the bottom of the keyhole slots making
sure they are fully seated in the slots to lock the pieces together.
5. Repeat steps 1 through 4 to join the long Z beams to the second
end frame.
6. Turn the bottom frame assembly upside down.
7. With the assembled bottom frame turned over, insert the post
caps (P7) into each upright post (P1 or P5).
8. Set assembled frame in original position with the shelf frame on
the bottom.
Top Frame Assembly
Assemble 2 End Frames
The top frame assembly is similar to the bottom frame assembly
except that the short Z beams are joined to the top of the upright
posts.
1. Insert the rivets of the short Z beam (P3) into the top keyhole
slots of an upright post (P1 or P5).
